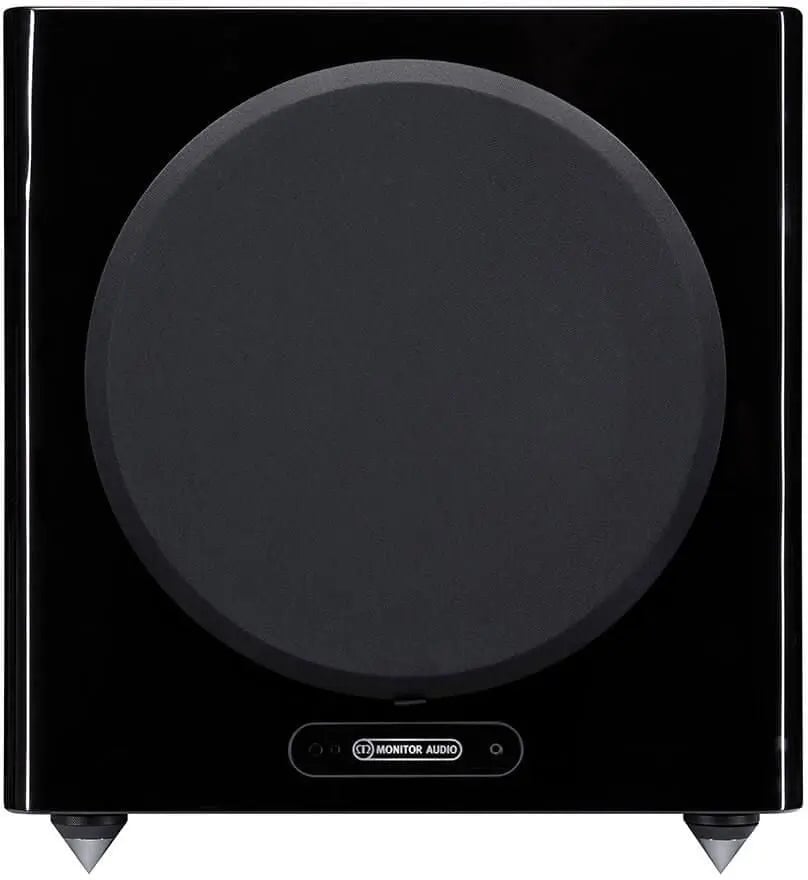

Monitor Audio Gold W12 Subwoofer
star
star
star
star
star
(10 Reviews)
In Stock
₹324,000.00
₹325,000.00
check_circle
In Stock
visibility
152 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Product Description
check_circle
A Three driver subwoofer system featuring two 200 mm ABR’s.
check_circle
Gives a Punchy bass below 20 Hz.
check_circle
Ultra-long throw 12" driver.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- A Three driver subwoofer system featuring two 200 mm ABR’s.
- Gives a Punchy bass below 20 Hz.
- Ultra-long throw 12" driver.
- Powerful 600 Watt Hypex Class-D Amplifier module, with switching power supply.
- DSP processing with all control features and crossover performed digitally.
- Top mounted control panel.
| IN THE BOX | |
|---|---|
| Sales Package | Subwoofer and User documentation |
| General | |
|---|---|
| Brand | Monitor-Audio |
| Model | Gold W12 |
| Color | black |
| Specifications | |
|---|---|
|
System Format
|
Long-throw 12" driver featuring ‘dished’ C-CAM cone. Dual 200 mm ABR (auxiliary bass radiator). Front baffle 36 mm, cabinet 25 mm MDF construction with internal bracing and sealed amplifier compartment
|
|
Lower Frequency Limit
|
-3 dB @ 25 Hz / -10 dB @ 20 Hz (Free Field). Music preset (Default): -3 dB @ 19 Hz / -10 dB @ 16 Hz (In Room). Assignable Low Frequency Limit Protection Filter: -3 dB @ 12 Hz |
|
Upper Frequency Limit
|
-3 dB @ 150 Hz |
|
Drive Unit Complement
|
1 x 12" C-CAM subwoofer driver featuring triple suspension and 3" long throw voice coi |
|
Linear Driver Excursion
|
19 mm Peak to Peak,
Total displacement 1.6 Litres
|
|
Amplifier Output
|
600 W |
|
Amplifier Classification
|
Class D with high current Switch mode power supply (SMPSU)
|
|
DSP
|
50 MIPS DSP Core giving 512 instructions per sample, 138 dB of dynamic range and 56-bit double precision processing, dynamically updated by an up to 50 MHz MCU |
|
Digital Conversion
|
24 bit/up to 48 kHz ADCs & DACs built into ADAU1701 DSP Core |
|
Room Correction EQ
|
6 System controlled parametric EQ filters set using advanced detection algorithm. Measurement can be initiated from the control panel or the SubConnect with up to microphone 6 positions (default 2) |
|
Night Mode
|
Night mode, assignable (On or Off) per Preset with global threshold (0 dB to -36 dB). Introduces dynamic range reduction lowering the level of loud sections
|
|
Phase Control
|
0 – 360 degrees Increments of 15 degrees with a pure invert at 180 degrees |
|
Low Pass Filter Alignment
|
2nd or 4th order (12 or 24 dB/Octave), Increments of 5 Hz from 35 Hz to 135 Hz |
|
Auto Sensing Input Requirements
|
Line Level >1mV on unbalanced and balanced inputs. Auto Standby feature, adjustable between 5 – 240 minutes in increments of 5 minutes |
|
Audio Input/Output
|
LFE balanced input (XLR), LFE unbalanced input (RCA), stereo unbalanced inputs (RCA). LFE balanced output (XLR), LFE unbalanced output (RCA), stereo unbalanced outputs (link RCA) |
|
Connection
|
12 V Trigger in (3.5 mm mono mini-jack, 6 V threshold), assignable to On/Off or Pre-set change, 3.5 mm Microphone input jack (mic supplied), RJ45 connector supporting RS232 (EIA/TIA - 561, Tx Pin 6, Rx Pin 5, Gnd Pin 4), IR repeater – Output (3.5 mm mono mini-jack), USB – Type B, for connecting to SubConnect PC application and Firmware update |
|
Mains Input Voltage
|
100 – 120 Vac ~60Hz / 220 – 240 Vac ~50/60 Hz (Manually selected) |
|
Power Consumption
|
Maximum 600 W, Standby <0.5 W (ErP compliance) |
| Dimension | |
|---|---|
| Dimension | 413 x 410 x 433.5 mm |
| Weight | 26.98 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturers Warranty |
