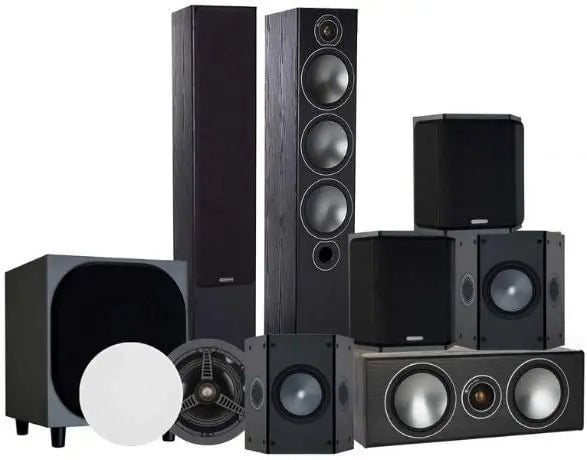

Monitor Audio 7.1.2 Bronze Series Home theatre System
star
star
star
star
star
(10 Reviews)
In Stock
₹339,493.00
check_circle
In Stock
visibility
426 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
check_circle
Product Description
check_circle
Audiophile-grade speaker system from Monitor Audio.
check_circle
Features 1 x 6.5" mid driver, 2 x 6.5†bass drivers and a 1†Gold Dome tweeter with C-CAM technology.
check_circle
Features a Single bolt-through driver systems for increased cabinet rigidity & driver/baffle de-coupling.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Audiophile-grade speaker system from Monitor Audio.
- Features 1 x 6.5" mid driver, 2 x 6.5†bass drivers and a 1†Gold Dome tweeter with C-CAM technology.
- Features a Single bolt-through driver systems for increased cabinet rigidity & driver/baffle de-coupling.
- High-quality crossovers with premium grade Polypropylene film capacitors.
- Discreet design with flush wall placement and with recessed terminations.
- Class D amplifier with high current Switch Mode Power Supply (SMPSU).
- Comes with a sealed cabinet design for accurate performance when installed in cabinet, restricted voids or close to a wall.
| IN THE BOX | |
|---|---|
| Sales Package |
Monitor Audio Bronze 6 Floorstanding Speaker x 1 pair
Monitor Audio Bronze Centre Speaker x 1 Unit
Monitor Audio Bronze FX Surround Speaker x 2 Pair
Monitor Audio C165 In-Ceiling Speaker x 2 units for Atmos
Monitor Audio Bronze W10 Subwoofer x 1 unitUser Documentation |
| General | |
|---|---|
| Brand | Monitor-Audio |
| Model | 7.1.2 Bronze Series |
| Color | black |
| Monitor Audio Bronze 6 Specifications | |
|---|---|
|
Frequency Response
(-6dB - IEC 268-13)
|
34 Hz – 30 kHz |
| Sensitivity (1W@1M) | 90 dB |
| Maximum S.P.L. (1dBA @ 1m - each) | 114.8 dBA (pair) |
| Nominal Impedance |
8Ω
|
| Power Handling - R.M.S. | 150 W |
| Recommended Amp Requirements | 40 - 150 W |
| Cabinet Design | Bass section - Front/rear bass re ex with HiVe II |
| Drive Unit Complement | 2 x 6.5†C-CAM bass driver, 1 x 61/2†C-CAM mid-range, 1x25 mm gold dome C-CAM tweeter |
| Crossover Frequency | LF: -6 dB @ 150 Hz MF/HF: 2.5 kHz |
| Complete Dimensions inc grille, terminals, plinths & spikes (H x W x D) | 1033 x 235 x 350 mm (40â… x 9¼ x 13¾â€) |
| Weight | 16.6 kg |
| Monitor Audio Bronze Centre Specifications | |
|---|---|
|
Frequency Response
(-6dB - IEC 268-13)
|
60 Hz – 30 kHz |
| Sensitivity (1W@1M) | 90 dB |
| Maximum S.P.L. (1dBA @ 1m - each) | 113.8 dBA |
| Nominal Impedance |
8Ω
|
| Power Handling - R.M.S. | 120 W |
| Recommended Amp Requirements | 20 - 120 W |
| Cabinet Design | Sealed Cabinet |
| Drive Unit Complement | 2 x 51/2†C-CAM bass / mid driver, 1 x 25 mm gold dome C-CAM tweeter |
| Crossover Frequency | 3.0 kHz |
| Complete Dimensions inc grille, terminals, plinths & spikes (H x W x D) | 165 x 460 x 193 mm (6½ x 18â…› x 7â…â€) |
| Weight | 5.6 kg |
|
Monitor Audio Bronze FX Specifications
|
|
|---|---|
|
Frequency Response
(-6dB - IEC 268-13)
|
60 Hz – 35 kHz
|
| Sensitivity (1W@1M) |
87 dB
|
| Maximum S.P.L. (1dBA @ 1m - each) | 113 dBA |
| Nominal Impedance | 8Ω |
| Power Handling - R.M.S. | 85 W |
| Recommended Amp Requirements |
30 – 85 W
|
| Cabinet Design |
Sealed Cabinet
|
| Drive Unit Complement |
1 x 6" C-CAM RST bass/mid driver
2 x 1" (25 mm) C-CAM Gold Dome tweeter
|
| Crossover Frequency |
2.5 kHz
|
| Complete Dimensions inc grille, terminals, plinths & spikes (H x W x D) | 250 x 310 x 130 mm (913/16 x 123/16 x 51/8") |
| Weight | 4.3 kg |
|
Monitor Audio C165 In-Ceiling Speaker Specifications
|
|
|---|---|
|
Frequency Response
|
60 Hz – 25 kHz
|
|
Nominal Impedance
|
6 ohms |
|
Sensitivity (1W@1M)
|
88.5 dB |
|
Maximum SPL
|
107.4 dBA |
|
Power Handling (RMS)
|
65 W |
|
Recommended Amplifier Requirements
|
20 – 65 W |
|
Drive Unit Complement
|
6 1/2" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter
|
|
Overall Diameter (Including Grille)
|
250 mm (913/16") |
|
Overall Depth (Including Grille)
|
120 mm (43/4") |
|
Mounting Depth
|
116 mm (49/16") |
|
Fixing Type
|
3 position Tri-Grip dog fixings |
|
Weight
|
1.92 kg |
| Monitor Audio Bronze W10 Subwoofer Specifications | |
|---|---|
|
System Format
|
Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction
|
| Lower Frequency Limit | -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room) |
|
Upper Frequency Limit
|
-6 dB @ 150 Hz |
| Drive Unit Complement | 1 x 250 mm (10") C-CAM subwoofer driver |
|
Linear Driver Excursion
|
17 mm peak to peak |
| Amplifier Output | 220 W |
| Amplifier Classification | Class D with high current Switch mode power supply (SMPSU) |
|
Phase Control
|
0 Degrees & 180 Degree pure Invert |
| Low Pass Filter Alignment | 4th order (24 dB/Octave), from 50 Hz to 120 Hz |
| Equalisation DSP | 3 pre-set modes: Music, Movie, Impact |
| Auto Sensing | Line Level >3mV. Auto Standby feature after 20 mins |
|
Audio Input/Outputs
|
LFE unbalanced input RCA
Stereo unbalanced inputs RCA
|
| Input Impedance | 20 kOhms input impedance |
|
Main Inputs Voltage
|
100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected) |
|
Power Consumption
|
Maximum 300 W, Standby <0.5 W (ErP compliance) |
|
External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
|
321 x 321 x 364 mm
(125/8 x 125/8 x 145/16")
|
|
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
|
366.5 x 321 x 364 mm
(147/16 x 125/8 x 145/16")
|
|
Weight (each)
|
13.4 kg |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 1 Year |
