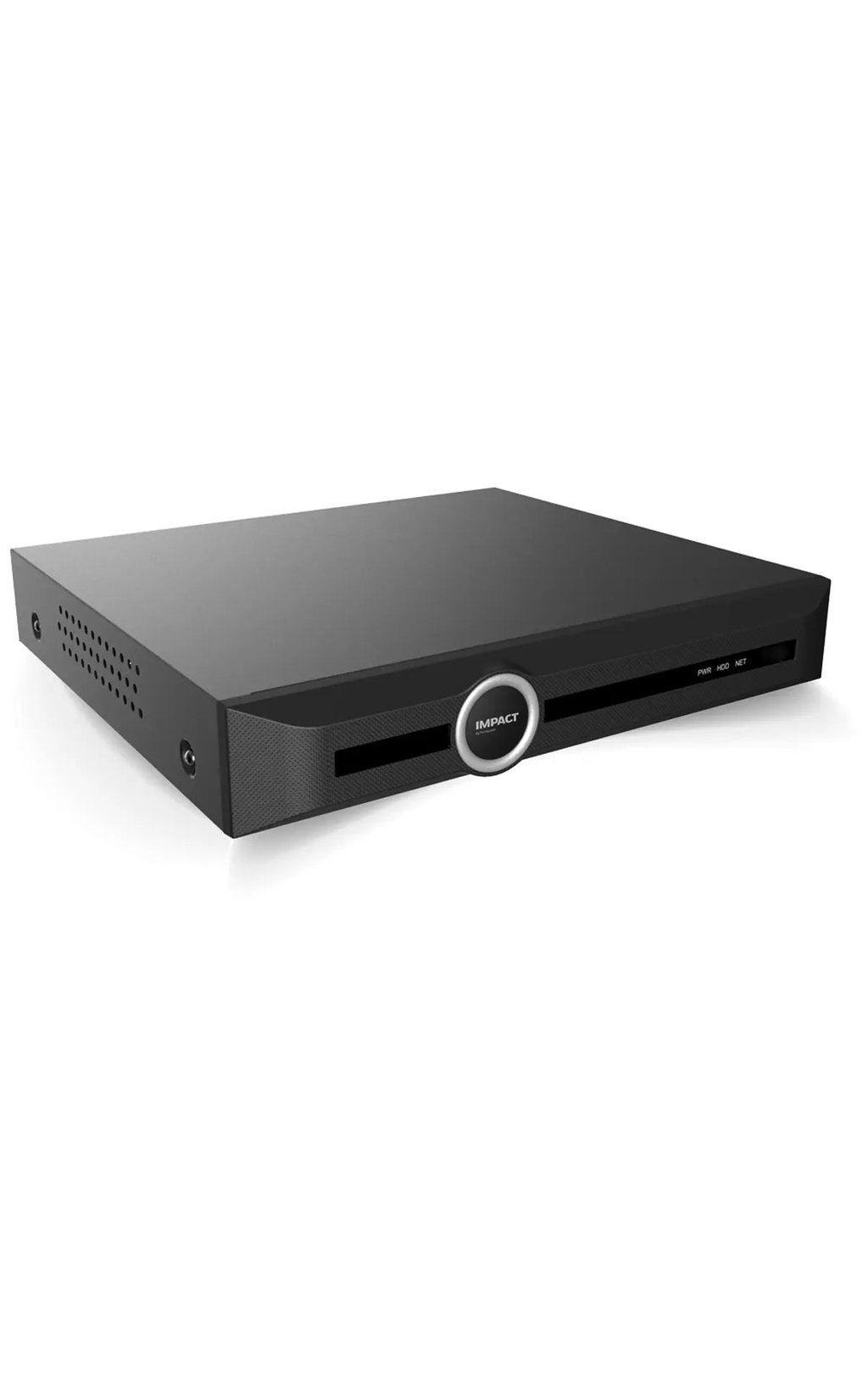

Honeywell 5 Channel 4K NVR | I-HNVR-1105

The Honeywell I-HNVR-1105 is a reliable and efficient 5-channel Network Video Recorder (NVR) designed for small CCTV installations. With support for up to 6MP IP cameras, 4K video output, and advanced compression technology, it ensures smooth recording, optimized storage, and easy system management.

🔑 Key Features

✔ 5 Channel IP Camera Support
✔ Supports up to 6MP Resolution Recording
✔ Advanced IH+265 / H.265 / H.264 Compression
✔ 4K HDMI Output + VGA Output
✔ 1 SATA HDD Support (Up to 10TB)
✔ ONVIF Compatible (Supports third-party cameras)
✔ Plug & Play Operation

🎯 Video & Performance

• Video Input: 5 Channels

• Maximum Resolution: Up to 6MP

• Incoming Bandwidth: 50 Mbps

• Outgoing Bandwidth: 40 Mbps

• Multi-channel live view & playback

🖥 Video Output

• HDMI Output: Up to 4K (3840 × 2160)

• VGA Output: Up to 1080p

• Simultaneous HDMI & VGA display

• Screen Split Modes: 1 / 3 / 4 / 5 / 6 / 7 / 9

💾 Storage

• HDD Interface: 1 SATA Port

• Maximum Capacity: Up to 10TB (Single HDD)

• Smart compression helps reduce storage usage

🔄 Recording & Playback

• Recording Resolutions:
  6MP / 5MP / 4MP / 3MP / 1080P / 720P / VGA

• Multi-channel synchronous playback

• Video encryption supported

🌐 Network & Connectivity

• Network Interface: 1 × RJ45 (10/100 Mbps)

• Supported Protocols:
  TCP/IP, HTTP, DHCP, DNS, RTSP, NTP, UPnP, IPv4/IPv6

• ONVIF Profile S/T supported

• Remote access via mobile app, CMS & web browser

🔌 External Interfaces

• USB Ports: 2 × USB 2.0

• Audio Output: 1 × RCA

• USB backup & mouse support

⚙️ Smart Features

• Motion Detection

• Event Alerts & Notifications

• Video Content Analysis (VCA) support

• Centralized camera management

• Real-time monitoring

⚡ Power

• Power Supply: DC 12V

• Power Consumption: ≤10W (without HDD)

🛡 Build & Design

• Compact 1U Desktop Design

• Durable for 24×7 operation

• Operating Temperature: -10°C to +55°C

• Humidity: 10%–90% RH

📐 Physical Specifications

• Dimensions: 255 × 231 × 44 mm

• Weight: ~0.8 kg (without HDD)

📦 Applications

✔ Home CCTV Systems
✔ Small Offices & Shops
✔ Retail Stores
✔ Clinics & Schools
✔ Entry-level surveillance setups

💡 Why Choose I-HNVR-1105?

• Cost-effective 5-channel NVR

• Supports high-resolution IP cameras

• Efficient storage with advanced compression

• Easy installation & user-friendly interface

• Reliable Honeywell performance
