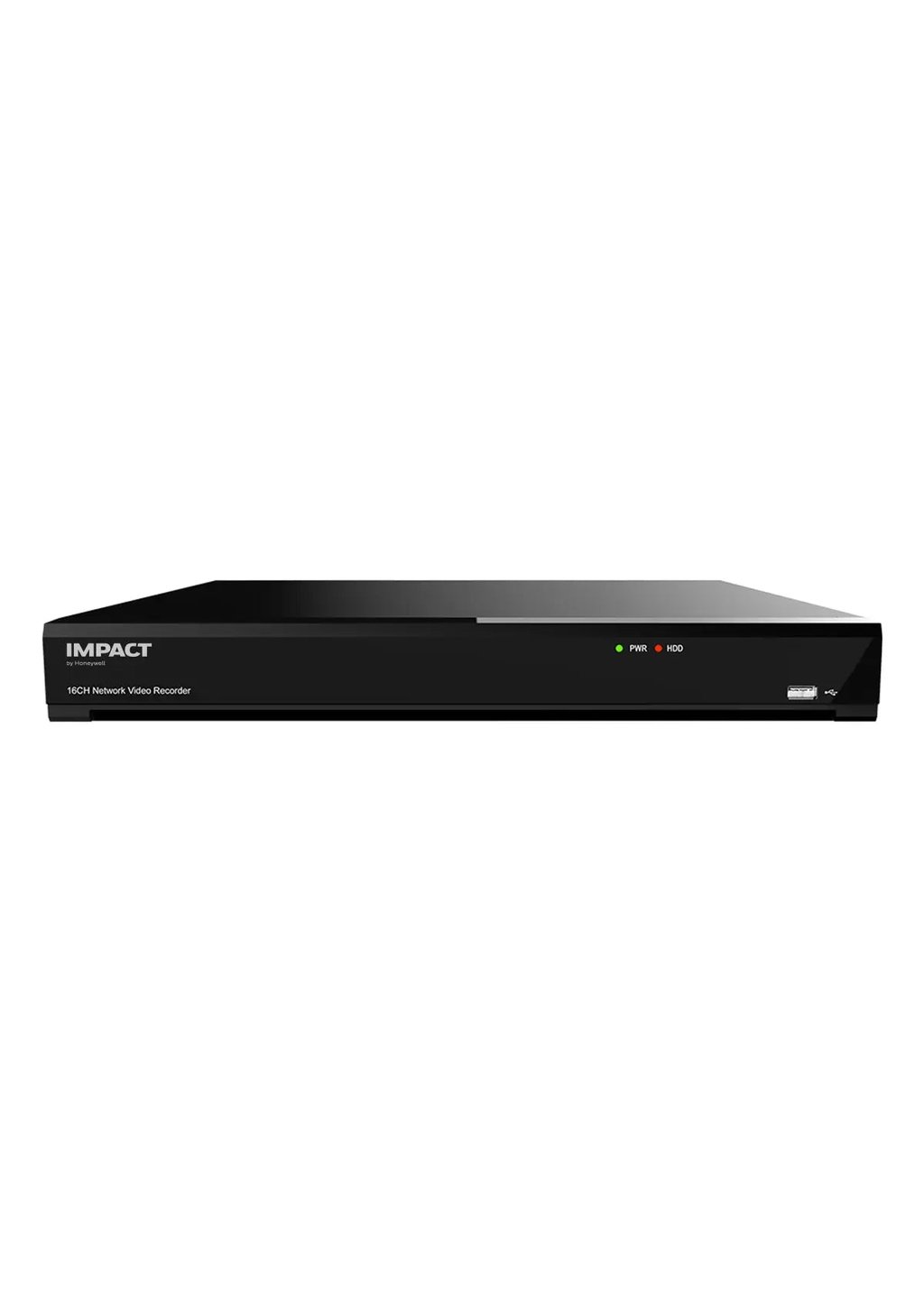

Honeywell 16 Channel 4-SATA 4K NVR | I-HPNVR-416

The Honeywell I-HPNVR-416 is a powerful 16-channel Network Video Recorder (NVR) designed for advanced surveillance systems and enterprise-level installations. With 4 SATA HDD support, 4K output, RAID support, and high bandwidth, it ensures smooth recording, reliable storage, and efficient monitoring.

🔑 Key Features

✔ 16 Channel IP Camera Support
✔ Supports up to 12MP Resolution Recording
✔ 4 SATA HDD Support (Up to 40TB Storage)
✔ Advanced IH+265 / H.265 / H.264 Compression
✔ Dual HDMI + VGA Output
✔ Dual Gigabit LAN Ports (2 × RJ45)
✔ RAID 0 / RAID 1 Support
✔ ONVIF Compatible

🎯 Video & Performance

• Video Input: Up to 16 Channels

• Maximum Resolution: Up to 12MP

• Incoming Bandwidth: 320 Mbps

• Outgoing Bandwidth: 320 Mbps

• High-performance decoding for multi-camera monitoring

🖥 Video Output

• HDMI Output: Up to 4K (3840 × 2160)

• VGA Output: Up to 1080p

• Dual HDMI + VGA simultaneous display

• Screen Split Modes:
  1 / 4 / 8 / 9 / 16

💾 Storage

• HDD Interface: 4 × SATA Ports

• Capacity: Up to 10TB per HDD (Total up to 40TB)

• RAID Support: RAID 0 / RAID 1

• Smart compression reduces storage usage

🔄 Recording & Playback

• Recording Resolutions:
  12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P

• Multi-channel synchronous playback

• Smart search & event playback

• Video encryption supported

🌐 Network & Connectivity

• Network Interface: 2 × RJ45 (10/100/1000 Mbps)

• Supported Protocols:
  TCP/IP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, IPv4/IPv6

• ONVIF supported

• Remote access via mobile app, CMS & web browser

🔌 External Interfaces

• USB Ports: USB 2.0 + USB 3.0

• Audio: 1 In / 1 Out

• Alarm Input/Output: 16 In / 1 Out

⚙️ Smart Features

• Motion Detection

• Video Content Analysis (VCA)

• Smart Event Alerts

• Intelligent Playback

• Centralized camera management

⚡ Power

• Power Supply: AC 100–240V

• Designed for 24×7 continuous operation

🛡 Build & Design

• Rack Mount Industrial Design

• High reliability for enterprise deployments

• Operating Temperature: -10°C to +55°C

📦 Applications

✔ Corporate Offices & IT Parks
✔ Warehouses & Industrial Units
✔ Retail Chains & Showrooms
✔ Schools, Hospitals & Campuses
✔ Medium to Large CCTV Projects

💡 Why Choose I-HPNVR-416?

• High bandwidth 320 Mbps for smooth performance

• 4 HDD slots with RAID support

• Dual HDMI output for better monitoring

• Ideal for scalable surveillance systems

• Trusted Honeywell enterprise solution
