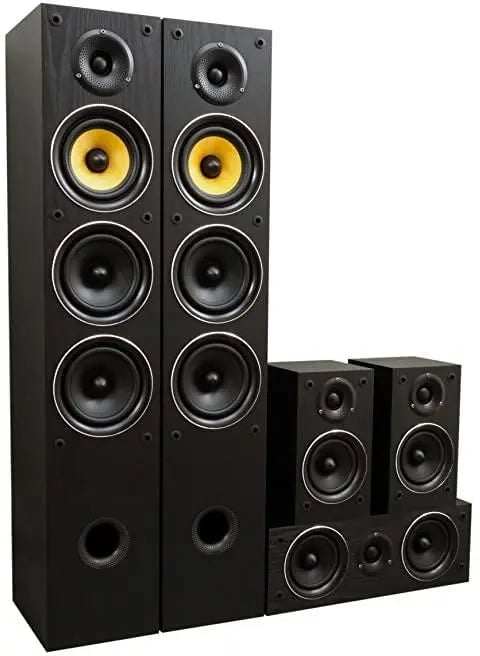

Taga Harmony tav-506 V.2 Home theatre Speaker System
Product Description
- The main challenge for our designers and acoustic engineers was to combine high-quality sound in stereo systems (for front floor standing speakers) and astonishingly dynamic resolution in-home theatre.
- It seems a very easy task to do, but only a few speaker companies can achieve it and TAGA is one of them.
- Final result is a smooth, detailed, and balanced performance with huge dynamics and rich, high-resolution sound throughout the whole frequency range.
- It is not only about utilizing the best components and design, the real art behind the construction is the final adjustment of sound balance, which is where our acoustic engineers have shown their craftsmanship.
- Add to this an appealing, yet classic design – TAV-506 v.2 is a perfect choice both for stereo and home theatre.
Product features
The Taga harmony TAV-506 V.2 is not just the same model as the previous one with a few cosmetic changes, but a completely redesigned construction that takes this speaker set to a whole new level in terms of sound performance. The biggest challenge for our designers and sound engineers was to combine the high-quality sound of a stereo system (for front floor standing speakers) with the amazing dynamic resolution of a home theatre. This seems like a pretty simple task, but few speaker makers can do it, and TAGA Home theatre system is one of them. It's not just about using the best components and designs. The true art behind the construction is the final adjustment to the tonal balance, where our sound engineers have proven their skill.Â
Better Build
The Tav-506 by taga has the TLIE – Taga Low Interference Enclosures are constructed from high quality MDF panels (9mm and 12mm faceplates) to increase stiffness and limit unwanted resonances. The shape is perfectly crafted to reduce unwanted vibrations, diffraction, or turbulence that can affect sound performance as well as look great and modern.
Improved Frequency Driver
This speaker system has got special horn-like TWG TAGA-506 home theater waveguide design Tweeter faceplate with recessed diffuser supports even and flat sound distribution both inside and outside the driver's axis. A stiff, ultra-light yellow fiberglass cone with bouncy rubber suspension is extremely quick to move and often makes the midrange very rich and spacious. A high-performance voice coil and Φ70 magnet withstand high temperatures and high-power consumption, and a spherical dust cap improves the dispersion of high-mid frequencies.
Better Bass
This Home speaker system of taga series is using paper cones and heavy-duty voice coils and bobbins for improved power handling, the drivers can reproduce deep, precise, detailed bass and clear, rich, spacious midrange frequencies. A ball-shaped dust cap improves dispersion in the low-mid frequency range. BOM Bass reflex Omnidirectional Module - High speed port with recessed diffuser for less turbulence and improved low frequency dispersion
Quality Crossover
This speaker system has been made with quality crossover for increasing the functionality of the tav506 speaker system, high-quality, tight-tolerance, precisely selected crossover components and internal wiring ensure absolute tonal neutrality, long-lasting performance and reliability.
Strong Wiring
This Taga 506 has been gifted with a strong in-speaker coiling for better music output. A high-quality internal cable connection connecting the crossover to the driver ensures that the incoming audio signal from the receiver or amplifier does not lose important details en route to the driver.
Classic design
| IN THE BOX | |
|---|---|
| Sales Package | 2 x TAV-506F v.2, 2 x TAV-506S, 1 x TAV-506C , User documentation |
| General | |
|---|---|
| Brand | taga-harmony |
| Model | TAV-506 |
| Year | 2022 |
| Color | Brown |
| Specifications (TAV-506F v.2 – Floorstanding Speakers) | |
|---|---|
| Design | 3-way, floorstanding, front bass-reflex |
| High-Frequency Drive | 25mm (1″), TWG faceplate, silk dome |
| Midrange Driver | 133mm (5.25″), glass fiber cone |
| Bass Driver | 2 x 133mm (5.25″), paper cone |
| Recommended Amplifier Power | 20-120W |
| Frequency Response | 42Hz-25KHz |
| Impedance | 6 ohm |
| Sensitivity | 89 dB |
| Dimensions (H x W x D) | 90 x 17 x 23,5 cm (excl. spikes) |
| Weight (net) | 20.4 kg pair |
| Specifications (TAV-506C v.2 – Center Speaker) | |
|---|---|
| Design | 2-way, center, double rear bassreflex |
| High-Frequency Driver | 25mm (1″), TWG faceplate, silk dome |
| Bass / Midrange Driver | 2 x 102mm (4″), paper cone |
| Recommended Amplifier Power | 20-100W |
| Frequency Response | 55Hz-25KHz |
| Impedance | 6 ohm |
| Sensitivity | 88 dB |
| Dimensions (H x W x D) | 14 x 40 x 14.5 cm |
| Weight (net) | 2.8 kg pc. |
| Specifications (TAV-506S v.2 – Surround Speakers) | |
|---|---|
| Design | 2-way, surround, rear bass reflex |
| High-Frequency Driver | 25mm (1″), TWG faceplate, silk dome |
| Bass / Midrange Driver | 102mm (4″), paper cone |
| Recommended Amplifier Power | 20-100W |
| Frequency Response | 55Hz-25KHz |
| Impedance | 6 ohm |
| Sensitivity | 86 dB |
| Dimensions (H x W x D) | 24.5 x 14 x 14.5 cm |
| Weight (net) | 3.5 kg pair |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
