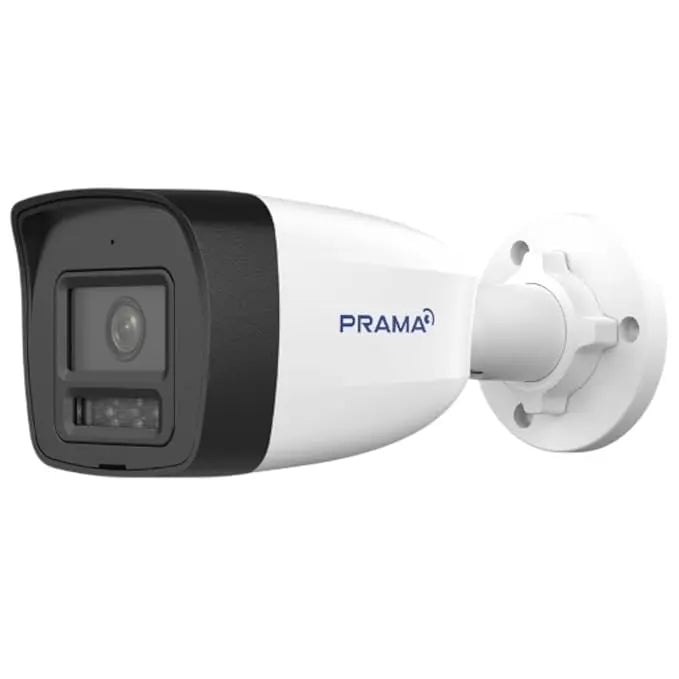

STQC | Prama IP 6MP Hybrid Bullet CCTV with MIC | PT-NC160D3-WNM(D2)

The Prama PT-NC160D3-WNM(D2) is a high-resolution 6MP Fixed Bullet IP Camera designed for long-range, outdoor surveillance. It features excellent IR night vision, WDR, built-in microphone, H.265+ compression, and IP67 weatherproof housing, making it ideal for perimeter walls, gates, parking areas, warehouses, industrial setups, and commercial buildings.
With PoE support and a rugged bullet design, this camera delivers reliable performance in harsh outdoor environments.

Key Features

• 6MP Ultra-HD Resolution (3200 × 1800) for detailed and sharp video.

• Long-range IR Night Vision with up to 30m visibility in complete darkness.

• Built-in Microphone for audio monitoring.

• AI Motion Detection for smart alerting.

• Wide Dynamic Range (120dB WDR) ensures clear video in challenging lighting.

• Durable Bullet Design, ideal for outdoor mounting.

• IP67 Weatherproof Body for dust, rain, and outdoor temperature protection.

• PoE Support (IEEE 802.3af) for simple installation with a single cable.

• H.265+/H.265/H.264+/H.264 Compression reduces storage & bandwidth needs.

• Available in 2.8mm / 4mm lens for wide or focused coverage.

• ONVIF Compatible for seamless NVR integration.

Technical Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Max Resolution: 3200 × 1800

• Shutter Speed: 1/3s – 1/100,000s

• Minimum Illumination:

  • Colour: 0.005 Lux (AGC ON)

  • 0 Lux with IR ON

• Day/Night Mode: Auto IR Cut Filter

Lens

• Lens Options: 2.8mm / 4mm

• Field of View (Approx.):

  • 2.8mm: H ~105°, V ~55°, D ~127°

  • 4mm: Narrower FOV for longer distance clarity

IR Night Vision

• Infrared (IR) LEDs

• IR Range: Up to 30 meters

• IR Wavelength: 850 nm

Video

• Main Stream: Up to 6MP @ 20fps

• Sub Stream: Up to 720p @ 20fps

• Compression: H.265+, H.265, H.264+, H.264

• Bitrate: 32 Kbps – 16 Mbps

Image Enhancement

• True WDR: 120dB

• 3D DNR, BLC, HLC

• Adjustable: Brightness, Contrast, Saturation, Sharpness, Gain, White Balance

• Privacy Masking: Up to 4 zones

Audio

• Built-in Microphone

• Audio Formats: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Sampling Rate: 8kHz / 16kHz

Network

• Interface: 1 × RJ45 (10/100 Mbps)

• Network Protocols Supported: TCP/IP, DHCP, DNS, HTTPS, RTSP, NTP, UDP, IPv6, SMTP, IGMP, QoS

• ONVIF Profiles: S / T

Smart Features

• AI Motion Detection

• Video Tampering Alert

• Region-based Motion Zones

• Snapshot and Email Alerts

General

• Power: 12V DC ±25% or PoE (IEEE 802.3af Class 3)

• Power Consumption: Max 6.5W

• Weather Rating: IP67

• Housing Material: Metal + Plastic

• Operating Temperature: –30°C to 60°C

• Humidity: ≤95% (Non-condensing)

Package Includes

• Prama PT-NC160D3-WNM(D2) Bullet Camera

• Mounting Bracket & Screws

• Quick Installation Guide

Ideal Applications

• Boundary Walls

• Outdoor Gate Monitoring

• Parking Areas

• Building Perimeters

• Industrial Sheds & Warehouses

• Shops & Commercial Buildings

• Long Corridor Surveillance
