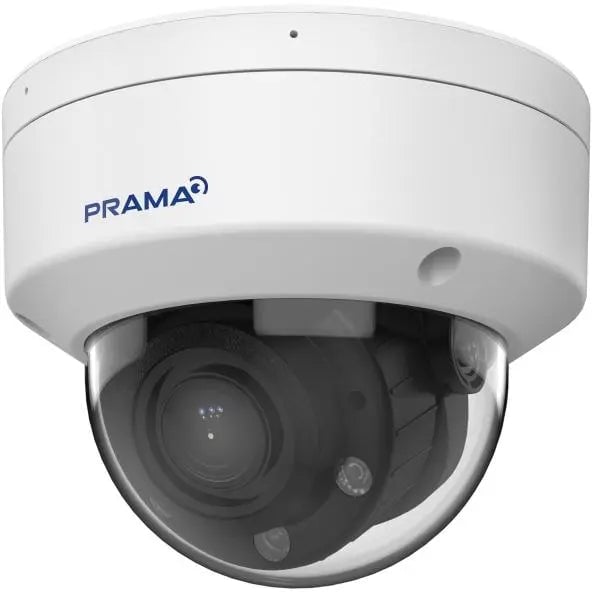

STQC | Prama IP 4MP Hybrid Varifocal Dome CCTV | PT-NC147D3-WNRAM(D2)
PT-NC147D3-WNRAM (D2) is a high-performance 4MP IP Dome Camera designed for professional surveillance applications. Equipped with a motorized varifocal lens, intelligent detection features, and advanced infrared night vision, the camera delivers clear and reliable monitoring for both indoor and outdoor environments. Its durable IP67-rated housing ensures stable performance even in harsh weather conditions, making it suitable for commercial, residential, and industrial security installations.
Key Features
-
4MP High-Resolution Network Camera
-
Motorized Varifocal Lens (2.8–12mm)
-
2560 × 1440 Video Resolution
-
Smart IR Night Vision up to 30m
-
Built-in Microphone for Audio Monitoring
-
Advanced H.265+ / H.264+ Compression
-
Human & Motion Detection
-
MicroSD Storage Support up to 512GB
-
PoE (Power over Ethernet) Support
-
IP67 Weatherproof Metal Housing
Technical Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 (4MP) |
| Minimum Illumination | Color: 0.005 Lux |
| Day/Night | IR Cut Filter with Auto Switch |
| Shutter Speed | 1/3 s – 1/100,000 s |
Lens
| Specification | Details |
|---|---|
| Lens Type | Motorized Varifocal |
| Focal Length | 2.8 – 12 mm |
| Field of View | Approx. 96° – 30° |
| Lens Mount | M12 |
Night Vision
| Specification | Details |
|---|---|
| IR Distance | Up to 30 meters |
| IR Type | Smart IR LEDs |
Video
-
Video Compression: H.265+, H.265, H.264+, H.264
-
Maximum Frame Rate: 25/30 fps @ 4MP
-
Bit Rate: 32 Kbps – 8 Mbps
-
Stream Type: Main Stream / Sub Stream
Audio
-
Built-in Microphone
-
Supports audio recording and monitoring
Storage
-
MicroSD Card Slot
-
Supports Storage up to 512GB
-
Network recording through NVR or NAS
Network
| Feature | Details |
|---|---|
| Network Interface | RJ-45 (10/100 Mbps) |
| Remote Monitoring | Web Browser / VMS / Mobile App |
| Multi-User Access | Supported |
Power
| Specification | Details |
|---|---|
| Power Supply | 12V DC |
| PoE | IEEE 802.3af |
| Power Consumption | Approx. 10–12W |
Environmental
| Specification | Details |
|---|---|
| Weather Protection | IP67 |
| Operating Temperature | –30°C to +60°C |
| Installation | Indoor / Outdoor |
Applications
-
Office & Commercial Buildings
-
Residential Societies
-
Retail Shops & Showrooms
-
Warehouses & Factories
-
Parking Areas & Perimeter Security
