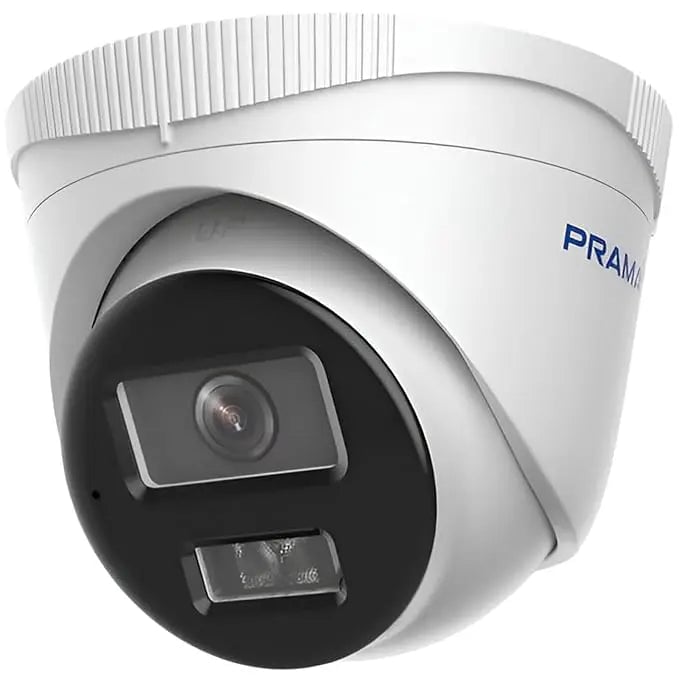

STQC | Prama IP 4MP Hybrid Dome CCTV with MIC | PT-NC143D3-WNM(D2)
The Prama PT-NC143D3-WNM(D2) is a high-performance 4MP Fixed Dome IP Camera designed for ultra-clear, intelligent, and reliable surveillance across demanding indoor and outdoor environments. With its advanced Smart Dual Light technology, built-in microphone, and rugged IP67 + IK10 vandal-resistant housing, it is ideal for commercial buildings, public infrastructure, residential towers, retail environments, industrial facilities, and perimeter security.
Equipped with a 4MP Progressive Scan CMOS sensor, the camera delivers exceptional 2560 × 1440 Quad HD video with rich detail and accurate color reproduction. With excellent low-light performance (0.01 Lux Color and 0 Lux with IR), it ensures round-the-clock visibility.
The camera’s Smart Dual Light system combines IR and white light illumination, automatically switching to white light when a human or vehicle is detected, enabling full-color monitoring during critical security incidents.
With AI-based Human & Vehicle Detection, H.265+ advanced compression, and a built-in microphone, the PT-NC143D3-WNM(D2)** delivers intelligent surveillance with reduced false alarms, efficient recording, and real-time audio awareness.
Key Features & Benefits
-
4MP Quad HD (2560 × 1440): Superior clarity with high-definition imaging
-
Smart Dual Light (IR + White Light):
-
Up to 30m night vision
-
Automatic full-color capture on detection
-
-
Built-in Microphone: Real-time audio monitoring
-
AI Human & Vehicle Detection: Accurate alerts with fewer false triggers
-
H.265+ / H.264+ Compression: Efficient storage and bandwidth usage
-
IP67 Weatherproof + IK10 Vandal-Proof: Ideal for harsh outdoor environments and public areas
-
Lens Options:
-
2.8mm (wide ~101° field of view)
-
4mm (focused ~83° field of view)
-
-
PoE Support + 12V DC: Flexible and easy installation
-
Durable Dome Housing: Suitable for ceiling or wall mounting in indoor/outdoor spaces
Technical Specifications (Summary)
| Feature | Specification |
|---|---|
| Model | PT-NC143D3-WNM(D2) |
| Resolution | 4MP (2560 × 1440) |
| Sensor | Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux (Color), 0 Lux with IR |
| Night Vision | Up to 30m (Smart Dual Light) |
| Lens Options | 2.8mm / 4mm |
| Audio | Built-in Microphone |
| Compression | H.265+, H.264+ |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal-proof) |
| Power | 12V DC ±25% / PoE (802.3af) |
| Body Material | Metal + Plastic |
The PT-NC143D3-WNM(D2) is a powerful, intelligent, and durable surveillance solution—ideal for projects requiring high-resolution imaging, full-color night vision, and AI-powered event detection.
