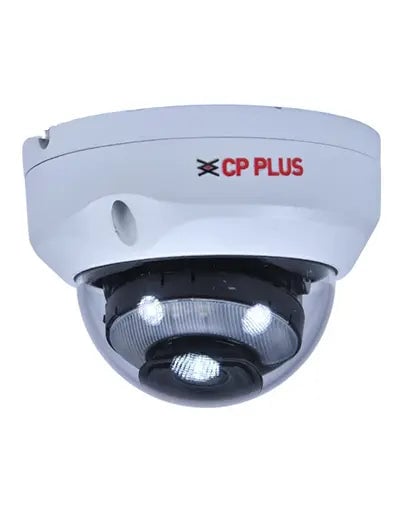

STQC | CP Plus 6 MP Dual-Light Vandal Dome Camera | CP-UNC-VC61L5C-VMD-LQ
Introducing the CP-UNC-VC61L5C-VMD-LQ, a high-resolution 6 MP vandal dome camera featuring dual-light night vision and tailored for demanding surveillance requirements. With razor-sharp video, advanced imaging enhancements, and robust cybersecurity—all packed in a durable, weatherproof housing—it’s perfect for high-security environments.
Key Features
-
6 MP Ultra-HD Imaging — 1/2.7″ PS CMOS sensor delivering a crisp 3288 × 1850 resolution at up to 20 fps.
-
Dual-Light Night Vision — Powerful 50-meter IR illumination and 30-meter warm light enable full-color night monitoring.
-
Smart Illumination & Starlight Sensor — Ensures bright, clear footage even under extremely low-light conditions.
-
Advanced Image Processing — Includes 120 dB WDR, Day/Night (ICR), 3D Noise Reduction, ROI, AWB, AGC, BLC, HLC, and digital watermarking.
-
Efficient Quad-Stream Compression — Supports InstaStream, H.265/H.264 variants, and MJPEG for optimized bandwidth and storage.
-
Built-In Audio — Comes with a built-in microphone for audio-enabled surveillance.
-
Rugged, Secure Build — IP67-rated weatherproof and IK10 vandal-proof metal housing ensures outdoor durability.
-
Smart Analytics (SMD+) — Perimeter protection with tripwire and intrusion detection for human/vehicle classification.
-
Versatile Connectivity & Storage — PoE-enabled, micro-SD support, and fortified with advanced cybersecurity features.
Technical Specifications
| Feature | Details |
|---|---|
| Sensor | 1/2.7″ 6 MP PS CMOS (3288 × 1850) |
| Minimum Illumination | 0.001 lux (color) / 0.0001 lux (B/W); 0 lux with IR |
| Lens | 3.6 mm fixed (optional 2.8 mm) |
| Night Vision Range | IR: 50 m; Warm Light: 30 m |
| Enhancements | WDR, Starlight, 3D NR, ROI, watermarking, etc. |
| Compression | Quad-stream: InstaStream, H.265, H.264, MJPEG |
| Analytics | SMD+, Tripwire, Intrusion Detection |
| Audio | Built-in mic |
| Power | PoE (802.3af) / 12 V DC |
| Protection Rating | IP67 (Weatherproof), IK10 (Vandal-proof) |
| Power Consumption | Max 6.8 W (DC), 8.2 W (PoE) |
| Operating Conditions | –40 °C to +60 °C, ≤ 95% Humidity |
Summary
The CP-UNC-VC61L5C-VMD-LQ combines 6 MP clarity, smart dual-light night vision, advanced image analytics, and cyber-resistant design—all in a hardened, vandal-resistant dome. Ideal for high-security spaces like city surveillance, retail, transportation hubs, or critical infrastructure.
