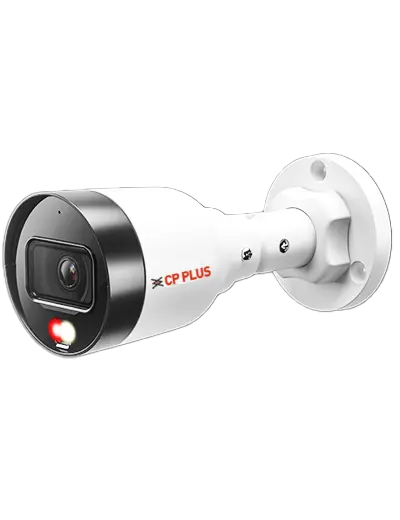

STQC | CP Plus 4MP Night Color IP Bullet Camera (30m, PoE) | CP-UNC-TA41L3C-D-LQ
The CP-UNC-TA41L3C-D-LQ is a powerful IlluMax series outdoor network camera, combining dual-light (IR + Warm Light) night illumination, robust full HD imaging, built-in audio, and advanced smart features—all secured within a durable, IP67-rated housing.
Key Features
-
Imaging & Resolution
-
1/2.9″ 4 MP Progressive PS CMOS sensor delivering up to 2688 × 1520 resolution at 25/30 fps
-
-
Dual Light Illumination
-
Offers up to 30 m of dual-night vision using both IR and warm-light LEDs for clear and colorful imaging even in darkness
-
-
Built-in Microphone
-
Enables audio capture alongside video for enhanced surveillance
-
-
Advanced Compression & Streaming
-
Supports InstaStream, H.265, H.264 variants, MJPEG
-
Offers triple-stream capability for flexible bandwidth and storage management
-
-
Image Enhancements
-
Includes 120 dB WDR, Day/Night (ICR), 3D DNR, ROI, AWB, AGC, BLC, HLC, digital watermarking for sharp image quality
-
Performance & Optics
-
Lens & Coverage
-
Fixed 3.6 mm lens, F1.6 aperture; offers a wide-angle view with pan/tilt/rotation capabilities (0°–360° pan, 0°–90° tilt, 0°–360° rotation)
-
-
DORI Detection Ranges
-
Detect: ~85.4 m
-
Observe: ~34.2 m
-
Recognize: ~17.1 m
-
Identify: ~8.5 m
-
Technical Specifications
| Feature | Details |
|---|---|
| Min. Illumination | 0.06 lux (Color), 0.006 lux (B/W), 0 lux with IR on |
| Shutter Speed | 1/3 s – 1/100,000 s (Auto/Manual) |
| Noise Ratio | >56 dB |
| Video Resolutions | 4MP, 3MP, 2MP, 1.3MP, 720p, D1, VGA, CIF formats |
| Privacy Mask | 4 customizable areas |
| Protocols Supported | ONVIF S/G/T, IPv4/6, HTTPS, TLS 1.2, SNMP v3, SFTP, and more |
| Smart Features | Smart search via Smart NVR compatibility |
| Power Options | 12 V DC / PoE (802.3af); Power consumption: ~1.6 W (DC), ~2.0 W (PoE) idle; up to ~3.7 W / 4.7 W max |
| Environmental | IP67 weatherproof, –40 °C to +60 °C operating range |
| Dimensions | 162.6 × 70 × 70 mm; Weight ~220 g |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
| Bit Rate Control | CBR/VBR; H.265: 3–6144 kbps; H.264: 8–6144 kbps |
Summary
The CP-UNC-TA41L3C-D-LQ is a rugged, smart surveillance camera offering 4 MP clarity, vibrant dual-light night vision, and built-in audio. With enhanced compression, strong cyber protocols, and outdoor resilience, it's ideal for demanding residential and commercial security needs
