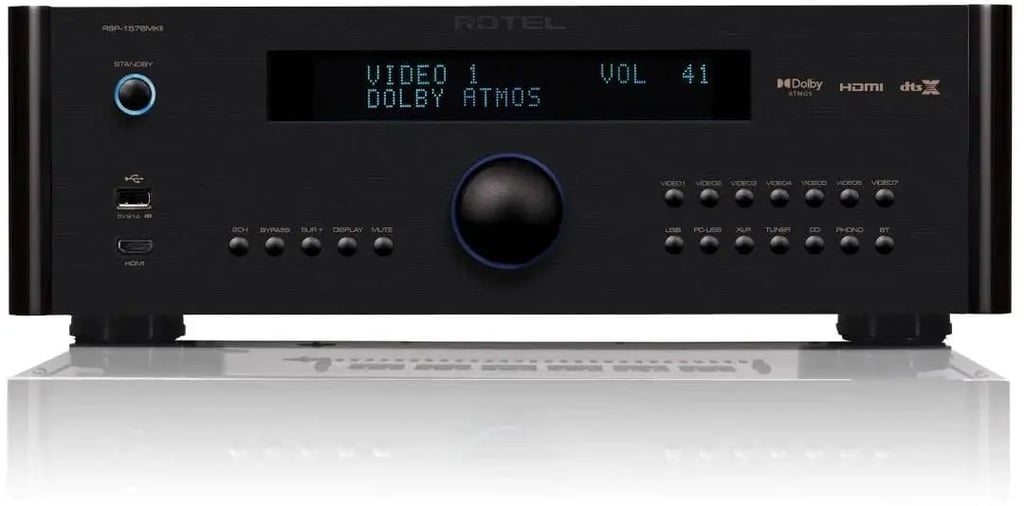

Rotel Rsp-1576 Mkii Surround Av Processor
star
star
star
star
star
(3 Reviews)
In Stock
₹349,800.00
₹377,990.00
check_circle
In Stock
visibility
2 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
check_circle
Product Description
check_circle
Supports Dirac Live Full
check_circle
Decodes DTS:X
check_circle
Supports Dolby Atmos
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Supports Dirac Live Full
- Decodes DTS:X
- Supports Dolby Atmos
- Bluetooth with aptX
- Moving magnet phono input for turntable connection
| IN THE BOX | |
|---|---|
| Sales Package | Rotel RSP-1576 MKII Surround AV Processor and User documentation |
| General | |
|---|---|
| Brand | Rotel |
| Model | RSP-1576 |
| Year | |
| Color | black |
| Dimension | |
|---|---|
| Dimension | 431 × 144 × 348mm |
| Weight | 8.8kg (19lbs.) |
| Specifications | |
|---|---|
|
Total Harmonic Distortion (THD)
|
Analog Bypass: 0.0006%
Digital Inputs: 0.003%
|
| Frequency Response |
Analog Bypass: 10Hz - 100kHz, ±1dB
Digital Inputs: 20Hz - 20kHz, ±0.5dB
Phono Input: 20Hz - 20kHz, ±0.5dB
|
|
S/N RATIO (IHF "A" Weighted)
|
Analog Bypass: 112dB
Digital Inputs: 112dB
|
|
Intermodulation Distortion (60 Hz : 7kHz, 4:1)
|
<0.005% |
|
Input Sensitivity
|
Line Level Inputs (RCA): 270mV
Line Level Inputs (XLR): 500mV
Phono Input (MM): 3.5mV
|
| Input Impedance |
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Phono Input (MM): 47kΩ
|
|
HDMI Inputs/Outputs
|
7 inputs supporting HDCP 2.2, HDMI 2.0b
2 outputs supporting HDCP 2.2, HDMI 2.0b
Audio Return Channel
|
| Channel Separation | >75dB |
|
Power Requirements
|
120V, 60Hz |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturers Warranty |
| Warranty Period | 2-years |
