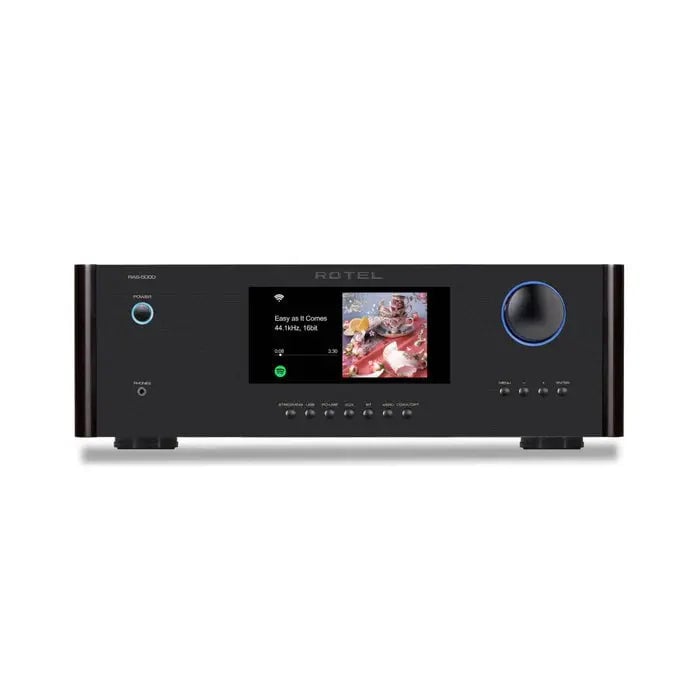

Rotel RAS-5000 Integrated Streaming Amplifier
Simplicity and performance meet in the Rotel RAS-5000, a component designed to fit into your lifestyle and elevate your entertainment experience.
The RAS-5000 seamlessly integrates HDMI ARC (Audio Return Channel) for playback of video sound, and effortlessly streams from online sources to play your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptXTM HD Bluetooth.
The RAS-5000 is the perfect fusion of advanced audio technology coupled with modern convenience. In addition to streaming and HDMI ARC you’ll also enjoy a wide array of traditional source inputs including Coaxial, Optical and RCA Analog inputs. The PC-USB input supports PCM and native MQA and MQA Studio decoding.
Digital music files up to 32-bit, 384kHz resolution are rendered with ultimate precision thanks to the premium ESS Digital to Analog converter, while the streamlined AMPLIFIED STREAMER RAS-5000 ARC connection between your TV and RAS-5000 ensures dynamic, high resolution sound from your favorite live sports, TV shows, movies, and games.
Like all Rotel amplifiers, the RAS-5000 is constructed around a massive linear power supply featuring a custom toroidal transformer, which allows the RAS-5000 to deliver a staggering 220 watts of Class AB power into 4 ohms. The overengineered power supply delivers ultralow-noise power to all critical components and robust current to the amplifier output transistors to deliver deep, controlled bass energy with exceptional fidelity.
The sleek RAS-5000 is available in both stylish black and sophisticated silver colors to blend seamlessly to any décor, while its user-friendly interface ensures effortless operation.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
Features
- 2 x 220 Watts of robust Class AB power, 4 Ohms
- Certified Roon Ready
- Supports MQA and MQA Studio
- ESS premium 32-bit Digital to Analog Converter
- Wireless aptXTM and AAC Bluetooth
Specification
|
Power Output |
220 Watts / ch (4 Ohms), 140 Watts / ch (8 Ohms) |
|
Total Harmonic Distortion (THD) |
<0.03% |
|
Frequency Response |
Line Level Inputs: 10Hz - 100kHz, ±0.5dB, Digital Inputs: 10 Hz – 70k Hz, (±3 dB, MAX) |
|
S/N Ration |
(IHF "A" Weighted), Line Level Inputs: 103dB, Digital Inputs: 105dB |
|
Power Requirements |
230V, 50Hz |
|
Power Consumption |
380W |
|
Standby Power Consumption |
<0.5W |
|
BTU Rating |
(4Ω, 1/8th power), 1027 BTU/h |
|
Intermodulation Distortion |
(60 Hz : 7k Hz, 4:1), <0.03% |
|
Damping Factor |
290 |
|
Input Sensitivity |
Line Level Inputs: 0.78mV, Digital Inputs: -8dBfs |
|
Input Impedance |
Line Level Inputs:46k Ohms, Digital Inputs: 75 Ohms |
|
Input Overload |
Line Level Inputs: 4.1V |
|
Tone Controls |
±10dB at 100Hz / 10kHz |
|
HDMI |
Support eARC function |
|
Coax/Optical Digital Input Signals |
SPDIF LPCM (Up to 24-bit/192kHz) |
|
PC-USB |
USB Audio Class 2.0 (up to 24-bit/384kHz)*Driver installation required. MQA and MQA Studio (up to 24-bit/384kHz), Roon Ready |
|
Dimensions (W × H × D) |
431 x 144 x 425 mm / 17” x 5 7/8” x 16” |
|
Front Panel Height |
132.6 mm / 5 1/4” |
|
Net Weight |
15.7 kg, 34.6 lbs |
