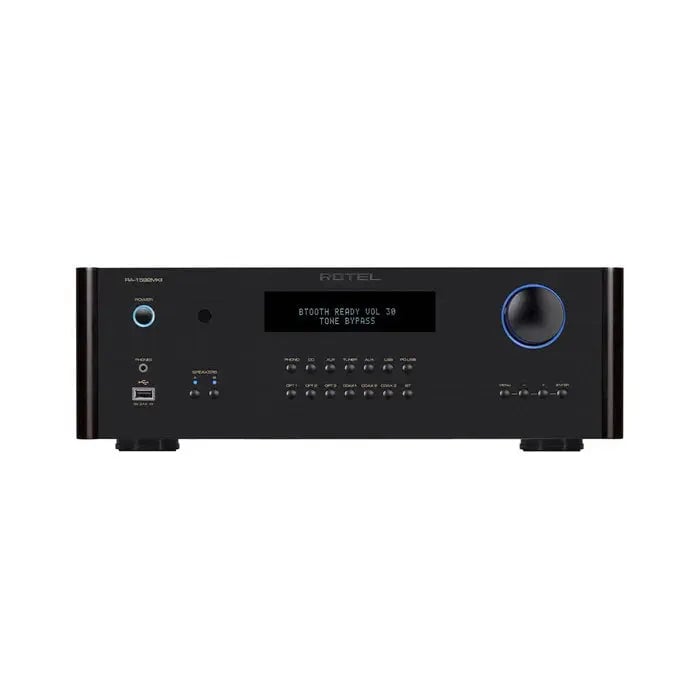

Rotel RA 1592MKII - Integrated Amplifier
Rotel RA 1592MKII - Integrated Amplifier with Bluetooth & DAC
Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at their fingertips accessible via streaming, digital mediums, classic vinyl and more.
Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.
The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimization of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Utilizing Rotel’s best-in-class preamplifier topology and award- winning power amplifier technology, the RA-1592MKII is a no- compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favorite sources including Analog, XLR, Digital, aptXTM and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilizes a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.
Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Convenience, performance and value - the RA-1592MKII delivers.
Features
- 2 x 350 Watts of robust Class AB power, 4 Ohms
- Certified Roon Tested
- Supports MQA and MQA Studio
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Wireless aptXTM and AAC Bluetooth
- Moving Magnet Phono input for turntable connection
Specification
|
Maximum Power Output |
350W/Ch (4Ω) |
|
Continues Power Output |
200W/Ch (8Ω) |
|
Total Harmonic Distortion (THD) |
<0.008% |
|
Frequency Response |
Line Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB) Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB) Phono Input: 20Hz - 20kHz (+0dB, +0.4dB) |
|
S/N Ratio |
(IHF "A" Weighted) Line Level Inputs: 102dB Digital Inputs: 102dB Phono Input: 80dB |
|
Dimensions (W × H × D) |
485 x 150 x 452mm |
|
Front Panel Height |
132 mm (5.25”) |
|
Power Requirement |
230V, 50Hz |
|
Power Consumption |
500W |
|
Standby Power Consumption |
Normal: <0.5W Network Wakeup: <2W |
|
Net Weight |
28.9kg (63.7 lbs.) |
|
BTU Rating |
1303 BTU/h |
|
Intermodulation Distortion |
(60Hz:7kHz, 4:1) <0.03% |
|
Damping Factor |
(20Hz - 20kHz, 8Ω) 350 |
|
Channel Seperations |
>55dB |
|
Input Sensitivity |
Line Level Inputs (RCA): 340mV Line Level Inputs (XLR): 540mV Phono Input (MM): 5.2mV |
|
Input Impedance |
Line Level Inputs (RCA): 100kΩ Line Level Inputs (XLR): 100kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ |
|
Input Overload |
Line Level Inputs (RCA): 3.5V Line Level Inputs (XLR): 5.5V Phono Input: 60mV |
|
Preout Level |
1.9V |
|
Output Impedance |
100Ω |
|
Tone Controls |
±10dB at 100Hz / 10kHz |
|
Coax/Optical Digital Input Signal |
SPDIF LPCM (Up to 24-bit/192kHz) |
|
PC-USB |
USB Audio Class 1 (up to 24/96) USB Audio Class 2 (up to 32/384)* *Driver installation required DSD and DoP support |
