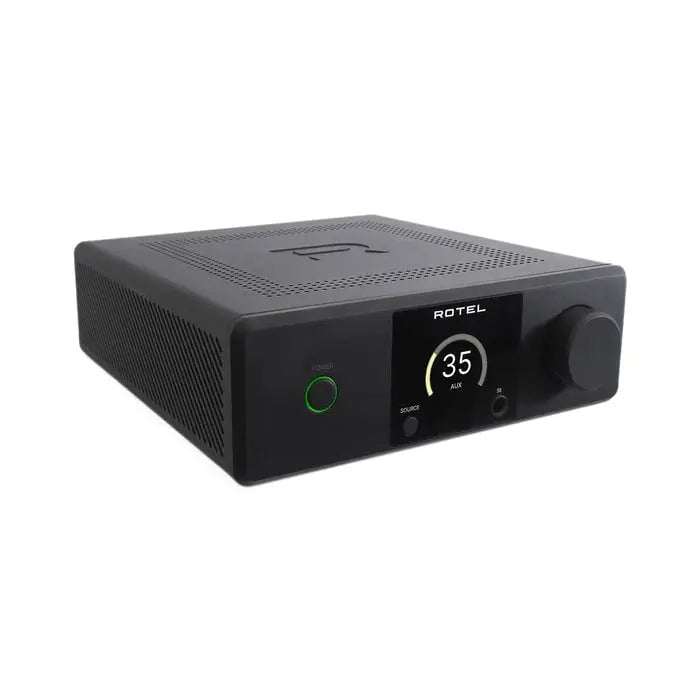

Rotel DX-5 Streaming Amplifier
The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).
The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.
The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Features
- 2 x 33 Watts of robust Class AB power, 4 Ohms
- HDMI ARC Input
- USB, Coaxial and Optical Inputs
- Certified Roon Tested
- ICESS premium 32-bit Digital to Analog Converter
- Wireless aptXTM and AAC Bluetooth
Specification
|
Power Output |
(FTC) 25 W / ch |
|
Maximum Power Output |
(Non FTC)33 W / ch, (1k Hz, 4 Ω) |
|
Continuous Power Output |
(Non FTC) 25 W / ch, (1k Hz, 8 Ω) |
|
Total Harmonic Distortion |
< 0.03% |
|
Frequency Response |
10 Hz – 100k Hz (0 ± 0.19 dB) |
|
Damping Factor |
(20 Hz – 20k Hz, 8 Ω) 140 |
|
Input Sensitivity / Impedance |
680 mV / 100k Ω |
|
Input Overload |
4.2V |
|
S/N Ratio |
(IHF "A" Weighted) >100 dB |
|
Power Requirements |
120 V, 60 Hz |
|
Power Consumption |
80 W |
|
Standby Power Consumption |
<0.5 W |
|
BTU |
241 BTU/h |
|
Intermodulation Distortion |
(60 Hz : 7k Hz, 4:1) < 0.03% |
|
Frequency Response |
(10 Hz – 80k Hz) 10 Hz – 80k Hz (0 ± 2 dB, Max |
|
Input Sensitivity / Impedance |
-10.3 dBFS / 75 Ω |
|
S/N Ratio |
(IHF "A" Weighted) >100 dB |
|
HDMI |
Support ARC function |
|
Digital Inputs |
SPDIF LPCM (up to 24-bit / 192k Hz) |
|
PC-USB |
USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz) Roon Tested |
|
Dimensions(W × H × D) |
215 x 76 x 251mm 8 1/2 x 3 x 10” |
|
Front Panel Height |
70 mm (2 3/4”) |
|
Net Weight |
4.1 kg (9.1 lbs.) |
