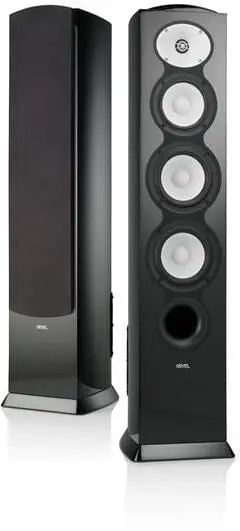

REVEL F226Be 3-Way Dual 6 inch Floorstanding Loudspeaker
star
star
star
star
star
(10 Reviews)
In Stock
₹1,199,980.00
check_circle
In Stock
visibility
175 people are viewing this right now
Shipping calculated at checkout.
Only 6 item(s) left in stock
check_circle
Product Description
check_circle
Deep Ceramic Composite (DCC) cones with aluminum core and ceramic coatings for reduced breakup and piston-like motion.
check_circle
Three-way driver system with dual 6.5-inch woofers, 5.25-inch midrange driver, and 1-inch tweeter.
check_circle
High-order crossover network with premium film capacitors and air-core inductors for clean driver integration.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 1-inch beryllium dome tweeter with dual ceramic magnets for lightweight, rigid, and highly detailed high-frequency performance.
- 5th-generation ceramic-coated cast-aluminum acoustic lens waveguide for smoother frequency response and wide dispersion.
- Deep Ceramic Composite (DCC) cones with aluminum core and ceramic coatings for reduced breakup and piston-like motion.
- Three-way driver system with dual 6.5-inch woofers, 5.25-inch midrange driver, and 1-inch tweeter.
- High-order crossover network with premium film capacitors and air-core inductors for clean driver integration.
- Bass reflex enclosure design with front-firing port for extended low-frequency output.
| IN THE BOX | |
|---|---|
| Sales Package | REVEL F226Be 3-Way Dual 6 inch Floorstanding Loudspeaker |
| General | |
|---|---|
| Brand | REVEL |
| Model | F226Be |
| Color | black |
| Type | 3-way dual 6.5" floorstanding loudspeaker |
| Low-frequency transducer | Two 6.5" (165mm) Deep Ceramic Composite aluminum cones, with cast frames |
| Midrange transducer | 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame |
| High-frequency transducer | 1" (25mm) Beryllium dome, with acoustic lens waveguide |
| Recommended amplifier power range | 50 – 200 Watts RMS |
| Frequency response | 44 Hz - 40 kHz (-6dB) |
| Low-frequency extension | 33Hz (–10dB); 36Hz (–6dB); 48Hz (–3dB) |
| Nominal impedance | 8 ohms |
| Sensitivity (2.83V/1m) | 90 dB |
| Crossover frequencies | 260Hz; 2.1kHz |
| Enclosure type | Bass-reflex via front-mounted port |
| Inputs | Dual gold-plated binding posts with shorting straps |
| Dimension | |
|---|---|
| Dimension | 1050mm x 249mm x 347mm |
| Weight | 26.4 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
