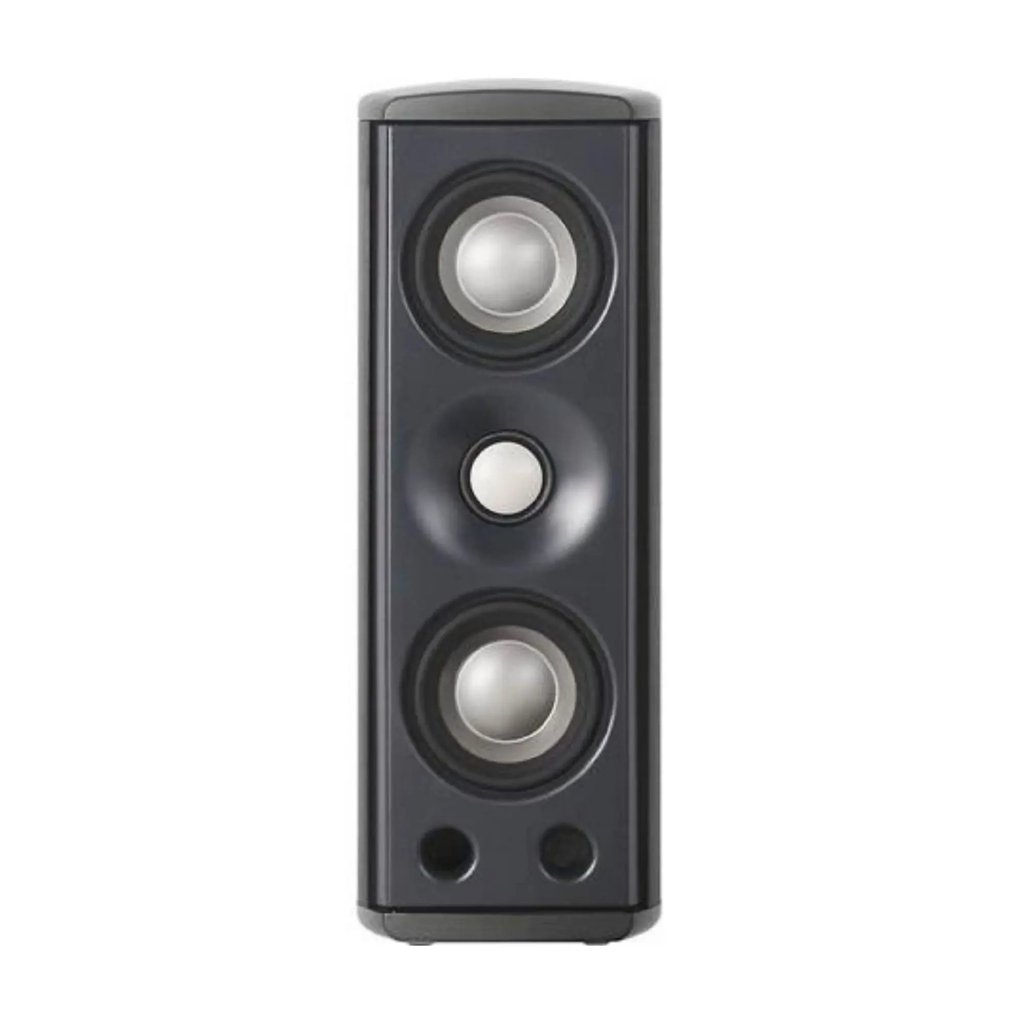

Revel Concerta M8 - On-Wall Speaker
None of the competing systems tested under identical conditions performed as well. Remarkably, Revel engineers could not identify a single competing on-wall system they considered suitable for on-wall use, based on either laboratory measurements or double-blind listening tests.
With advanced drivers utilizing Micro Ceramic Composite (MCC) cones and domes, along with high-order crossovers, and housed in rigid aluminum enclosures styled to complement the look of LCD and plasma displays, Concerta on-wall systems will fill any room with brilliant, distortion-free sound from virtually any amplifier.
All Concerta on-wall woofer, midrange and tweeter diaphragms are constructed of Micro Ceramic Composite (MCC), a new material created by anodizing both sides of an aluminum core. Anodizing both sides of an aluminum core adds strength and stiffness – but very little weight – to a material already well suited for use in transducer diaphragms.
|
Height |
11.6" (29.6 cm) |
|
Width |
4.3" (10.8 cm) |
|
Depth |
4.5" (11.4 cm) |
|
Weight |
1.6Kg |
|
Crossover Frequencies |
2-Way at 2.2kHz |
|
Input Sensitivity |
400mV (full power)/20k Ohms (balanced); 14k Ohms (unbalanced) |
|
Inputs |
Balanced (XLR), unbalanced (RCA) |
|
High Frequency Driver Components |
1" (2.5 cm) micro-ceramic composite (MCC) dome tweeter |
|
Low Frequency Extension |
–3dB @ 110Hz –6dB @ 100Hz –10dB @ 90Hz4Hz |
|
Low-frequency Driver Components |
Dual 3" (7.5 cm) micro-ceramic composite (MCC) cone woofers |
|
Sensitivity |
88 db |
|
Nominal Impedance |
8 Ohms |
