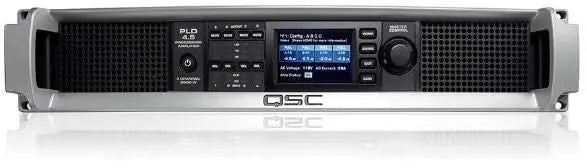

Qsc Pld 4.5 Processing Amplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹134,000.00
₹244,000.00
check_circle
In Stock
visibility
413 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
check_circle
Product Description
check_circle
8000W Amplifier using FAST channel combining technology.
check_circle
4 channels, 1200 watts/ch at 8Ω, 2000 watts/ch at 4Ω, 1600 watts/ch at 2Ω.
check_circle
four flexible channels of up to 2000 watts each.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Four channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and alignment delay eliminate the need for outboard loudspeaker processors.
- Integrated front panel with channel Select and Mute buttons, input and output LED metering, 400×240 LCD, intuitive navigation buttons, LED power button and indicator, and cast aluminum handles.
- 8000W Amplifier using FAST channel combining technology.
- 4 channels, 1200 watts/ch at 8Ω, 2000 watts/ch at 4Ω, 1600 watts/ch at 2Ω.
- four flexible channels of up to 2000 watts each.
- PowerLight universal switch mode power supply with PFC for highest efficiency, improved audio performance, and low weight.
- E Series Entertainment System DSP Tunings.
| IN THE BOX | |
|---|---|
| Sales Package | Amplifier and User documentation |
| General | |
|---|---|
| Brand | QSC |
| Model | PLD 4.5 |
| Color | black |
| Specifications | |
|---|---|
|
Frequency response
|
20 Hz–15 kHz ±0.2 dB 20 Hz–20 kHz +0.2/-0.7 dB |
|
Noise:
Unweighted Output Unmuted
|
-101 dB |
|
Noise:
Weighted Output Muted
|
-109 dB |
| Gain | 38.4 dB |
| Damping factor | >150 |
| Input impedance | >10 kΩ, balanced or unbalanced |
| Amplifier and load protection | Short circuit, open circuit, thermal, RF protection. on/off muting, DC fault shutdown, active inrush limiting, input current limiting |
| AC Power Input |
4.2: Universal Power Supply 100-132/200–240 VAC, 50–60 Hz
4.3/4.5: Universal Power Supply 100–240 VAC, 50–60 Hz
|
| Controls and indicators (front) | Power  • Channel MUTE Buttons • Channel SELECT buttons • Channel input signal and CLIP LED indicators • Channel output and LIMIT LED meters • HOME, ENTER, EXIT, GAIN navigation buttons • Control knob |
| Dimension | |
|---|---|
| Dimension | ‎8.9 x 48.2 x 40.6 cm |
| Weight | 10 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturers Warranty |
| Warranty Period | 1 year |
