QSC

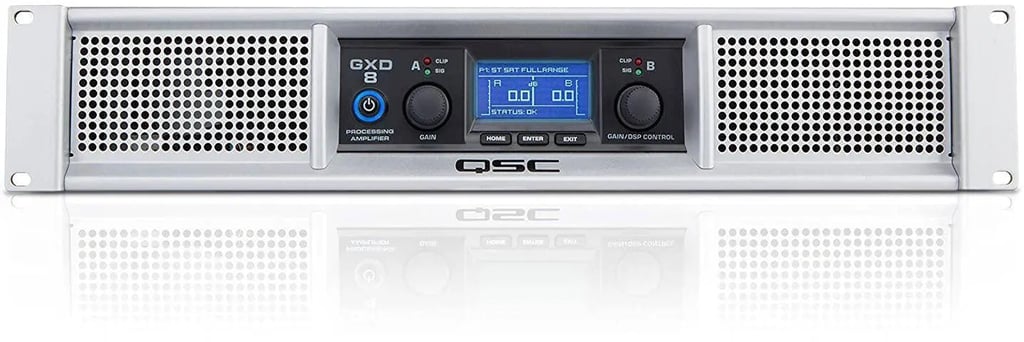

Qsc Gxd8 Power Amplifier With Dsp
star
star
star
star
star
(10 Reviews)
In Stock
₹71,700.00
₹101,000.00
check_circle
In Stock
visibility
506 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
check_circle
Product Description
check_circle
High peak output power with up to 4500 Watts.
check_circle
Optimized for maximum real-world headroom into 4Ω and 8Ω speaker systems.
check_circle
E Series Entertainment System DSP Tunings.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- High peak output power with up to 4500 Watts.
- Optimized for maximum real-world headroom into 4Ω and 8Ω speaker systems.
- E Series Entertainment System DSP Tunings.
- Large LCD display simplifies amplifier setup and indicates amp status.
- Digital limiting automatically protects the amplifier from damage due to temperature rise or overdrive.
- Front panel LEDs indicate signal presence, input overload, and amplifier clipping.
- Large LCD display simplifies amplifier setup and indicates amp status.
- Inputs: Parallel XLR and 1/4-inch TRS connectors for compatibility with any source while providing convenient loop-thru capability.
- Outputs:Professional binding post and NL4 connectors (compatible with NL2) provide for mono and bi-amp speaker connections.
| IN THE BOX | |
|---|---|
| Sales Package | Amplifier and User documentation |
| General | |
|---|---|
| Brand | QSC |
| Model | GXD8 |
| Color | black |
| Specifications | |
|---|---|
|
8Ω dynamic
|
1500 W |
| 4Ω dynamic | 2250 W |
| 8Ω continuous | 800 W |
| 4Ω continuous | 1200 W |
|
Distortion (typical)1 kHz at full rated power
|
< 1% THD |
|
Signal to Noise
(A weighted, 20 Hz–20 kHz)
|
100 dB |
| Input Sensitivity | 1.2 Vrms, 3.9 Vrms |
| Maximum Voltage Gain | 36.5 dB |
| Output Circuitry | Class D |
| Power Requirements | 1/8 power at 4Ω |
|
- 100 V AC
|
6.2 A |
| - 120 V AC | 5.6 A |
| - 230 V AC | 3.2 A |
|
Frequency Response
(20 Hz–20 kHz)
|
+0.7 dB, -0.8 dB |
| Dynamic Headroom (4Ω) | 2.73 dB |
| Damping Factor (8Ω) | 100 |
| Input Impedance | 20 kΩ (balanced), 10 kΩ (unbalanced) |
| Maximum Input Level | +23.5 dBu |
|
Input Connectors
(each channel)
|
3-pin XLR/F / 1/4-inch TRS, balanced |
|
Amplifier and Load Protection
|
Short circuit, open circuit, thermal, RF protection
Load protected against DC faults
|
|
Front Panel Controls and
|
Indicators 2 × Rotary Encoders
3 × Operational buttons (HOME, ENTER, EXIT)
2 × Green Signal LEDs indicate signal presence
2 × Red A/D Clip LEDs indicate input over-drive and/or amplifier current clipping
Blue Power LED ring indicates AC on
2.12-inch × 1.0-inch, 256 × 128 pixel LCD
|
|
DSP Functions
|
High-pass filter, 4th-order Linkwitz-Riley,
adjustable frequency 20 Hz to 4 kHz
Low-pass filter, 4th-order Linkwitz-Riley,
adjustable frequency 60 Hz to 4 kHz
4-band parametric EQ with variable frequency, gain, and bandwidth
Peak limiter with power, agressiveness, and impedance selection
Delay 50 msec max.
|
| Dimension | |
|---|---|
| Dimension | 8.9 cm × 48.3 cm × 259 cm |
| Weight | 6 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturers Warranty |
| Warranty Period | 1 year |
