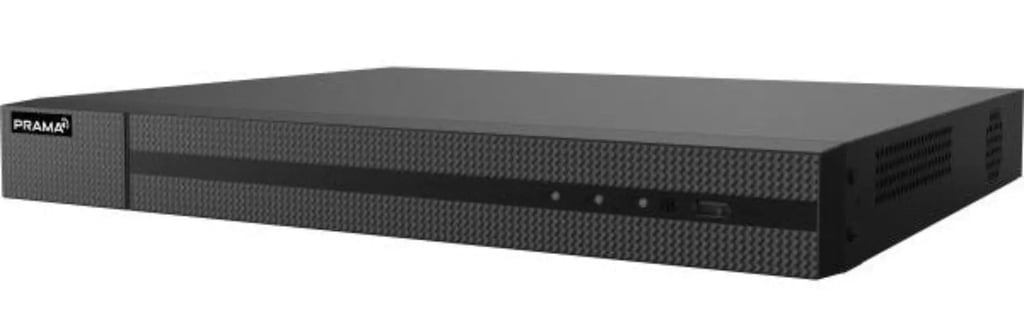

Prama 4K 8 Channel NVR | PT-NR2A08-Q1

The PRAMA PT-NR2A08-Q1 is an 8-channel Network Video Recorder designed for reliable, high-resolution surveillance in homes, offices and small-to-medium businesses. It supports up to 8 MP camera inputs, 4K HDMI output, efficient video compression and flexible storage options — making it ideal for 24/7 monitoring and long-term recording.

Key features

• Supports 8 IP cameras for full coverage of small to medium sites.

• Up to 8 MP recording for crisp, detailed video.

• 4K HDMI output for high-resolution live view and playback.

• Supports modern compression formats (H.265+, H.265, H.264+, H.264) to save storage space.

• 1 × SATA interface for HDD storage (supports large capacity drives).

• RJ-45 10/100/1000 Mbps network interface for stable connectivity.

• VGA and HDMI outputs plus 1-channel audio (RCA) for playback and monitoring.

• Compatible with a wide range of third-party IP cameras.

• Low power consumption and a compact 1U metal chassis designed for durability.

Technical specifications

• Model: PT-NR2A08-Q1

• Channels: 8 IP camera inputs

• Maximum recording resolution: Up to 8 MP

• Video outputs: HDMI (up to 4K), VGA

• Video compression: H.265+, H.265, H.264+, H.264, MPEG4

• Storage: 1 × SATA (supports large capacity HDDs)

• Network: 1 × RJ-45 10/100/1000 Mbps

• Audio output: 1 × RCA (audio out)

• Power supply: 12 V DC

• Power consumption: Low (designed for energy efficiency)

• Operating temperature: Typical commercial range

• Chassis: 1U metal body
