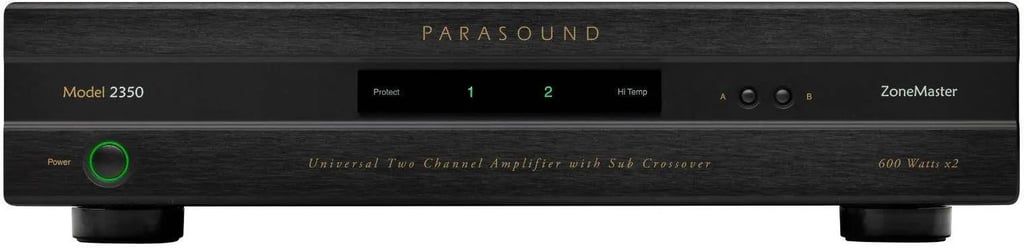

Parasound ZoneMaster® ZM2350 Stereo Power Amplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹148,000.00
₹149,000.00
check_circle
In Stock
visibility
174 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Product Description
check_circle
350?W per channel into 8??, 600?W into 4?? or 2??
check_circle
80?Hz low-pass subwoofer output for passive in-wall subs
check_circle
Switchable high-pass filter at 30?Hz or 80?Hz
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 350?W per channel into 8??, 600?W into 4?? or 2??
- 80?Hz low-pass subwoofer output for passive in-wall subs
- Switchable high-pass filter at 30?Hz or 80?Hz
- Line-level and speaker-level inputs
- Two speaker output pairs with front-panel A/B switches
- Rear-panel lockout for A/B controls
- Mono mode for single-speaker applications
- Mono full-range and subwoofer preamp outputs
| IN THE BOX | |
|---|---|
| Sales Package | Parasound ZoneMaster® ZM2350 Stereo Power Amplifier |
| General | |
|---|---|
| Brand | Parasound |
| Model | ZoneMaster® ZM2350 Stereo |
| Color | black |
|
Power Output
|
RMS, Both Channels Driven (20 Hz – 20 kHz)
350 watts x 2 @ 8 ?
600 watts x 2 @ 4 ? or 2 ?
|
|
Minimum Speaker Impedance (Output A+B)
|
Stereo or Mono Mode: 2 ?
Subwoofer Mode: 4 ?
|
|
Frequency Response
|
10 Hz – 70 kHz, +0/-3 dB
20 Hz – 20 kHz, +0/-0.8 dB
|
|
Total Harmonic Distortion
|
< 0.05 % at typical listening levels
< 0.9 % at full power
|
|
Inter-channel Crosstalk
|
70 dB at 20 kHz |
|
Input Sensitivity
|
2 Volts = Full output (350 Watts @ 8 ?)
Total gain = 29 dB (Level controls set to Maximum)
|
|
S/N Ratio
|
> 100 dB, input shorted, unweighted
> 114 dB, input shorted, IHF A-weighted
|
|
High and Low Pass Crossovers
|
Sub Mode and Sub out jack: 80 Hz, 24 dB per octave
High Pass Filter: 30 Hz or 80 Hz, 12 dB per octave
|
|
DC Trigger Requirements
|
+9 Vdc to +12 Vdc, 5 mA |
|
Audio Trigger Requirements
|
2 mV audio signal (8-15 minutes turn off delay) |
|
AC Power Requirement
|
1500 Watts maximum
100 Watts typical (music playing, typical listening level)
30 Watts idle (no music playing)
0.5 Watts in standby
110-240 VAC 50/60 Hz
|
| Dimension | |
|---|---|
| Dimension |
Width: 17.25inch (438 mm)
Depth: 14.5inch (368 mm)
Depth: 16.25inch (412 mm) with cables connected
Height, with feet: 4.25inch (108 mm)
Height, without feet: 3.5inch (89 mm), 2U
|
| Weight | 6.8 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
