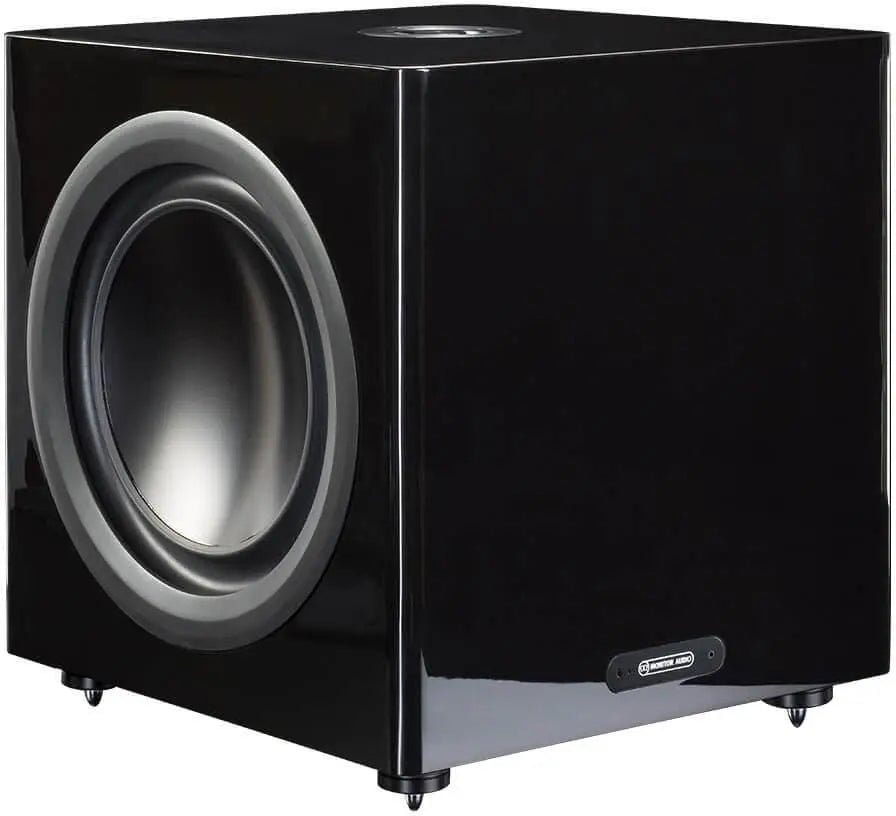

Monitor Audio Platinum Plw215 Ii Subwoofer
star
star
star
star
star
(3 Reviews)
In Stock
₹635,000.00
₹640,000.00
check_circle
In Stock
visibility
2 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
check_circle
Product Description
check_circle
Twin 15" C-CAM drivers, triple-suspended for a full 4cm of excursion
check_circle
A dedicated DSP-controlled amplifier powers each driver
check_circle
SubConnect software: adjust in-room response using top panel dial or laptop.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Twin 15" C-CAM drivers, triple-suspended for a full 4cm of excursion
- A dedicated DSP-controlled amplifier powers each driver
- SubConnect software: adjust in-room response using top panel dial or laptop.
- 4 user presets per input, including preset Flat/Music/Movie/Impact modes.
- Night Mode: actively reduces dynamic range of louder sections to desired level.
- High current Switch mode power supply (SMPSU).
- 12v trigger in (3.5 mm mono mini-jack, 6v threshold)
- IR remote included, IR receiver on front panel.
- 3.5 mm microphone input jack, microphone included.
| IN THE BOX | |
|---|---|
| Sales Package | Subwoofer and User Documentation |
| General | |
|---|---|
| Brand | Monitor-Audio |
| Model | Platinum PLW215 II |
| Color | black |
| Specifications | |
|---|---|
|
System Format
|
Sealed Cabinet with vibration cancelling driver configuration, 25 mm M.D.F. construction with internal bracing and sealed amplifier compartment |
|
Lower Frequency Limit
|
-3 dB @ 23 Hz / -10 dB @ 18 Hz (Free Field) default preset: Music, -3 dB @ 19 Hz / -10 dB @ 16 Hz (In Room) default preset: Music, Limited by low frequency protection filter (-3 dB @ 12 Hz) |
|
Upper Frequency Limit
|
-3 dB @ 150 Hz |
|
Drive Unit Complement
|
2 x 15" C-CAM sub-woofer drivers featuring inverted surround and triple suspension for increase support at high excursions.
Black single layer edge wound 3" voice coil with vented pole, vented coil and black CED coated motor unit to reduce power compression and increase thermal dissipation.
FEA optimised cone, magnetics and suspensions for optimal performance and increased linearity
|
|
Linear Driver Excursion
|
42 mm Peak to Peak,
Total displacement 6.4 Litres
|
|
Amplifier Output
|
Dual Amplifier design with a single amplifier powering each driver,
Combined 1400 W RMS, 2000 W Peak (Burst Ratio 1:4 Continuous,
Measured into two non-reactive 4 Ohm Loads)
|
|
Amplifier Classification
|
2x Class-D amplifiers, Balanced Differential Input, Differentially loaded Power Supply, DSP controlled. High current Switch mode power supply (SMPSU) |
|
DSP
|
172 MHz DSP Core with 3500 instructions per sample, 139 dB of dynamic range and 56-bit double precision processing, dynamically updated by an 80 MHz MCU |
|
Digital Conversion
|
Wolfson Microelectronics (Cirrus Logic) ADC & DAC @ 24bit/48KHz. (WM8786 ADC & WM8740 DAC) |
|
Phase Control
|
0-360 degrees, Increments of 15 degrees with a pure invert at 180 degrees |
|
Low Pass Filter Alignment
|
2nd or 4th order (12 or 24 dB/Octave), Increments of 5 Hz from 35 Hz to 135 Hz |
|
Auto Sensing Input Requirements
|
Line Level >1mV on unbalanced and balanced inputs. Auto Standby feature, adjustable between 5-240 minutes in increments of 5mins |
|
Digital Volume Level
|
-11 to +11 dB in 1 dB increments, Via the control panel. -80 to +20 in 1 dB increments, via SubConnect application |
|
IR Remote Control Code
|
Supplied IR remote. Front facing IR receiver with red LED response. Additional discrete IR codes for automation available in the manual |
|
Connection
|
12v Trigger in (3.5mm mono mini-jack, 6v threshold), assignable to On/Off or Preset change, 3.5mm Microphone input jack (mic supplied), RJ45 connector supporting RS232 (EIA/TIA - 561, Tx Pin 6, Rx Pin 5, Gnd Pin 4), IR repeater – Output (3.5mm mono mini-jack), USB – Type B, for connecting to SubConnect PC application and Firmware update |
|
Mains Input Voltage
|
110 – 120 Vac / 220 – 240 Vac 50/60 Hz (Manually selected)
|
|
Power Consumption
|
Maximum 1200 W, Standby <0.5 W (ErP compliance) |
| Dimension | |
|---|---|
| Dimension | 500 x 504 x 512.5 mm |
| Weight | 57.54 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
