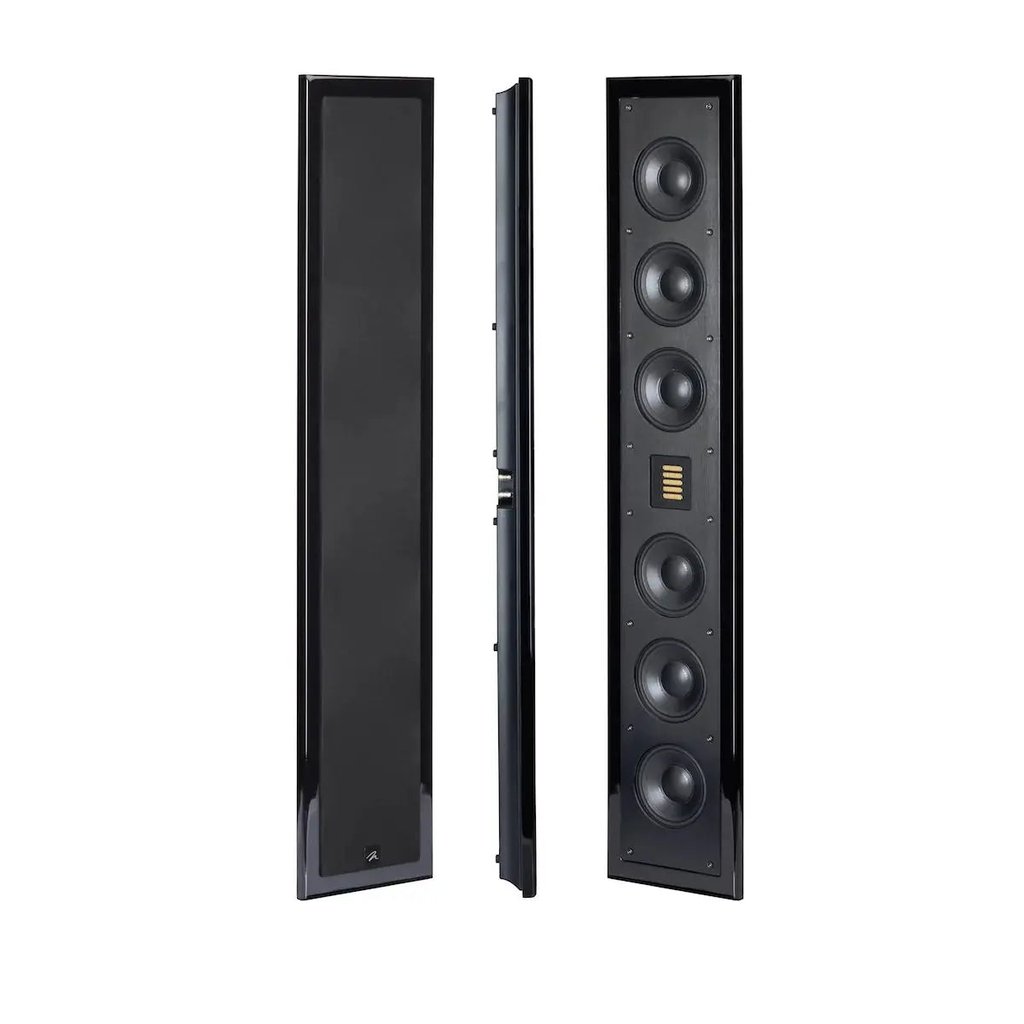

Martin Logan Motion SLM XL On Wall Speaker - Piece
The Folded Motion Tweeter works by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works. This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.
|
Frequency Response |
100–25,000 Hz ±3dB |
|
Horizontal Dispersion |
80° |
|
Vertical Dispersion |
80° |
|
High Frequency Transducer |
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
|
Low Frequency Transducer |
Two 4” (10.2cm) paper cone. Four 4” (10.2cm) paper cone passive radiators. |
|
Sensitivity |
94 dB/2.83 volts/meter |
|
Impedance |
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Recommended Amplifier Power |
20—140 watts per channel |
|
Crossover Frequency |
3,100 Hz |
|
Components |
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
|
Inputs |
Low-profile push style |
|
Weight |
9 lbs. (4.1 kg) |
|
Dimensions |
34.1" x 6.4" x 1.89 " |
