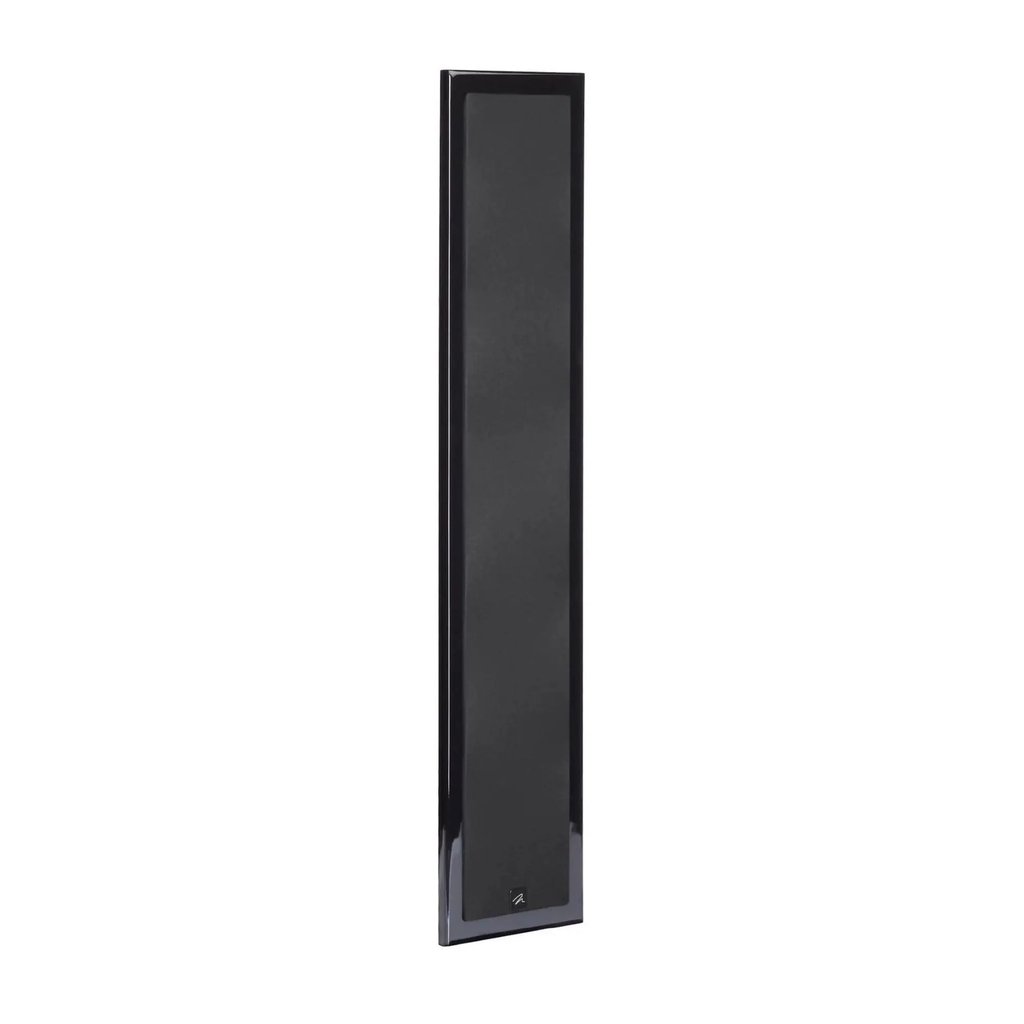

Martin Logan Motion SLM XL - On-Wall Speaker
Folded Motion tweeters have an 80° x 80° dispersion pattern, which allows SLM and SLM XL to sound exactly the same in a horizontal or vertical orientation, making them perfect for Left-Center-Right (LCR) system applications. The logo on the grille is magnetic and can move and rotate to the proper aesthetically pleasing location in any orientation. SLM and SLM XL both include a base designed for vertical applications, allowing the speakers sit on a shelf or equipment cabinet.
|
Frequency Response |
100–25,000 Hz ±3dB |
|
Recommended Amplifier Power |
20—140 watts per channel |
|
Horizontal Dispersion |
80° |
|
Vertical Dispersion |
80° |
|
Sensitivity |
94 dB/2.83 volts/meter |
|
Impedance |
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Crossover Frequency |
3,100 Hz |
|
High Frequency Transducer |
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
|
Low Frequency Transducer |
Two 4” (10.2cm) paper cone. Four 4” (10.2cm) paper cone passive radiators. |
|
Components |
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
|
Inputs |
Low-profile push style |
|
Weight |
9 lbs. (4.1 kg) |
|
Dimensions |
|
