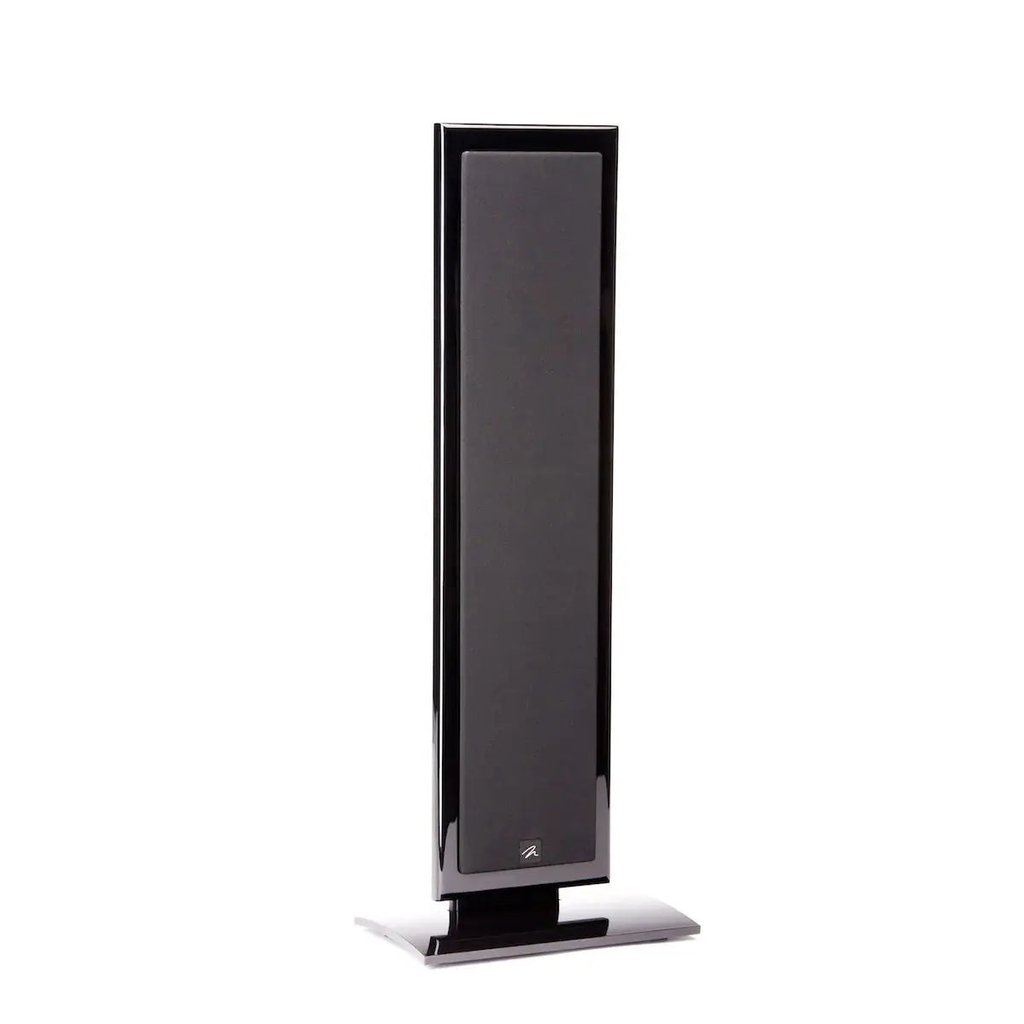

Martin Logan Motion SLM - On-Wall Speaker - Piece
The Folded Motion tweeter has an 80° x 80° dispersion pattern, which allows the Motion SLM to sound exactly the same in a horizontal or vertical orientation, making it perfect for Left-Center-Right (LCR) system applications. The logo on the grille is magnetic and can move and rotate to the proper aesthetically pleasing location in any orientation.
Each speaker includes "kick-stand" brackets that attach to the back of the cabinet, allowing them to free-stand for center channel applications. The stands are easily adjustable with the provided screw feet.
|
Frequency Response |
110–25,000 Hz ±3dB |
|
Horizontal Dispersion |
80° |
|
Vertical Dispersion |
80° |
|
High Frequency Transducer |
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
|
Low Frequency Transducer |
Two 4” (10.2cm) paper cone. Two 4” (10.2cm) paper cone passive radiators. |
|
Sensitivity |
94 dB/2.83 volts/meter |
|
Impedance |
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Recommended Amplifier Power |
20—140 watts per channel |
|
Crossover Frequency |
2,600 Hz |
|
Components |
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/cur- rent protection. |
|
Inputs |
Low-profile push style |
|
Weight |
6.5 lbs. (3 kg) |
|
Dimensions |
25.3" x 6.4" x 1.83 " |
