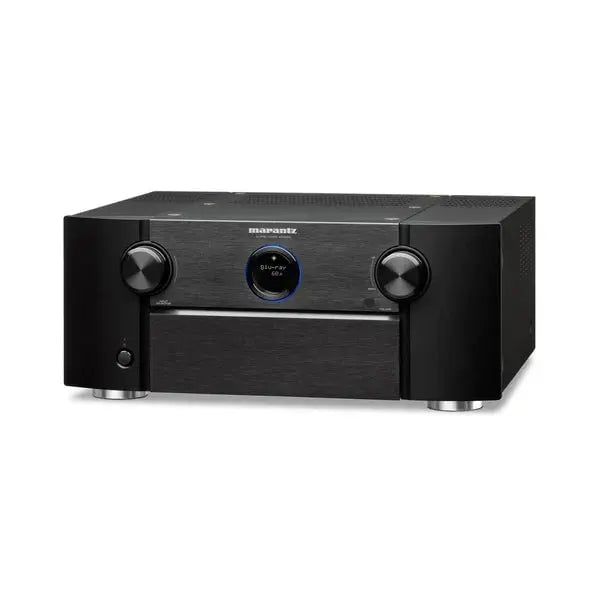

Marantz AV8805A - 13.2 Channel AV Processor

Amplifier Type

Preamplifier

Channels

13.2

DTS Compatibility

DTS-HD Master Audio, DTS:X

Dolby Compatibility

Dolby Atmos, Dolby Surround, Dolby TrueHD

Auro 3D Support

Yes

Upmixing Technology

DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology

Supported File Formats

2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA

Supported Sample Rates

Up to 192 kHz / 24-Bit (ALAC, FLAC, WAV)

HDR Support

Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma

Pass-Through Support

8K60p

Upscaling

8K UHD

GUI

Yes

Rear A/V Inputs

7x HDMI

3x 3RCA Component

4x RCA Composite

1x Stereo XLR Balanced

1x 7.1-Channel RCA

2x Optical TOSLINK

2x Digital Coaxial

6x Stereo RCA

1x Stereo RCA (Phono MM) with Ground Screw

Rear A/V Outputs

1x 15.2-Channel XLR Pre-Out

3x HDMI

1x 3RCA Component

2x RCA Composite

1x 15.2-Channel RCA Pre-Out

1x Stereo RCA Zone 2

1x Stereo RCA Zone 3

Front I/O

1x HDMI Input

1x RCA Composite Input

1x Stereo RCA Input

1x 1/4" / 6.35 mm Headphone Output

1x 1/8" / 3.5 mm Setup Mic Input

Other Rear I/O

2x Bluetooth/Wi-Fi Coaxial F-Type

1x USB-A (Power) Output

1x 1/8" / 3.5 mm (IR) Input

1x RCA (Remote) Input

1x RCA (Remote) Output

2x 1/8" / 3.5 mm (12 V Trigger) Output

1x DE-9 (RS-232C)

1x RJ45 (Ethernet)

HDCP Support

Yes, Version 2.3

HDMI Compression Modes

4K120AB / 8K60AB

Audio Return Channel (ARC)

eARC

HDMI CEC

Yes

Media Card Slot

No

Wi-Fi

Yes

Bluetooth

Yes

Wireless Audio Protocols

AirPlay 2, HEOS, Spotify Connect

External Control Support

Android/iOS Control App, Control4, Domotz Pro, OvrC

Virtual Assistant

Works with Alexa, Apple AirPlay, Works with Google Assistant, Josh.ai

Power Consumption

Active: 90 W

Standby: 0.2 W

CEC Standby: 0.5 W

Network Standby: 3.5 W

Box Dimensions (LxWxH)

21 x 19 x 12"

Weight

30.4 lb / 13.8 kg

Package Weight

37.75 lb
