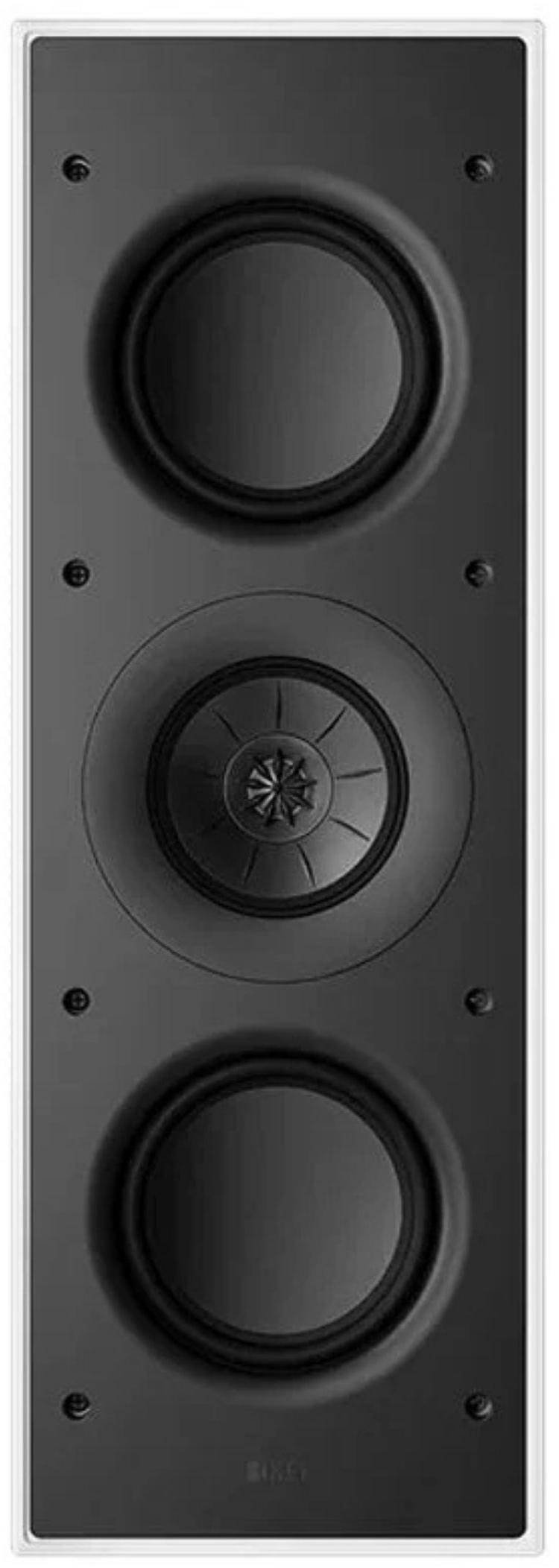

KEF Ci 3120 QLM In-Wall Speaker (Unit)
Key Features
THX Certified Ultra
The Ci3120QLM THX is designed to meet the demanding performance requirements associated with THX Certified Ultra home theater systems.
12th Generation Uni Q Driver Array
The Uni Q architecture combines the tweeter and midrange driver concentrically to provide coherent and naturally integrated sound.
Metamaterial Absorption Technology
MAT absorbs unwanted high frequency energy behind the tweeter to help deliver cleaner and more detailed treble.
2 Way Acoustic Design
The two way architecture provides accurate high frequency and midrange reproduction while maintaining a compact architectural format.
Aluminium Cone Driver
The Uni Q driver uses an aluminium cone engineered for rigidity, detail and controlled performance.
Premium In Wall Installation
The speaker sits inside the wall, providing high performance audio without taking up floor or shelf space.
Wide Sound Dispersion
Uni Q technology helps provide consistent sound over a broad listening area.
Paintable Architectural Grille
The discreet grille can be customized to blend with the surrounding wall.
Reference Inspired Engineering
The Ci3120QLM THX brings advanced KEF acoustic technologies into a custom installation format.
Ideal Uses
Dedicated Home Theater
Ideal for high performance front, center or surround applications.
THX Home Cinema
An excellent choice for customers building a THX certified or THX inspired private cinema.
Dolby Atmos
Can be integrated into a Dolby Atmos system as a front, center or surround speaker depending on the room design.
Luxury Media Room
Perfect for customers who want premium sound without visible speakers.
Living Room Home Theater
The in wall design keeps the room clean and visually uncluttered.
Custom AV Installation
Ideal for professional AV integrators, architects and interior designers.
Key Benefits
✔ THX Certified Ultra
✔ 12th Generation Uni Q Driver Array
✔ Metamaterial Absorption Technology
✔ 2 Way In Wall Design
✔ Aluminium Cone Driver
✔ Detailed Dialogue and Vocals
✔ Wide and Consistent Soundstage
✔ Premium Architectural Installation
✔ Paintable Grille
✔ Discreet Visual Appearance
✔ Ideal for Dolby Atmos
✔ Suitable for Home Theater and HiFi
SPECIFICATIONS
| Sales Package | KEF Ci3120QLM-THX In-Wall Speaker |
| General | |
|---|---|
| Brand | KEF |
| Model | Ci3120QLM-THX |
| Color | black |
|
Maximum SPL Measured at 1m
|
105 dB |
|
Mounting Thickness
|
Maximum: 36 mm (1.42 in.)
Minimum: 6 mm (0.24 in.)
|
|
Drive Units
|
LF: 2 x 120mm (4.75 in.)
MF: 100mm (4 in.) Uni-Q
HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology1
|
|
Ideal Rear Volume (L)
|
40 |
|
Frequency Response Range
|
50Hz - 20kHz |
|
Crossover Frequency
|
440Hz, 2.75kHz |
|
Frequency Response Remark
|
(±6dB) open-backed |
|
Recommended Amplifier Power
|
25 - 250 W |
|
Frequency Range
|
42Hz - 20kHz |
|
Sensitivity
|
89dB
|
|
Nominal Impedance
|
4? |
|
Nominal Coverage
|
150°
|
| Dimension | |
|---|---|
| Dimension | 536 mm x 186 mm x 96 mm |
| Weight | 6.2KG |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
