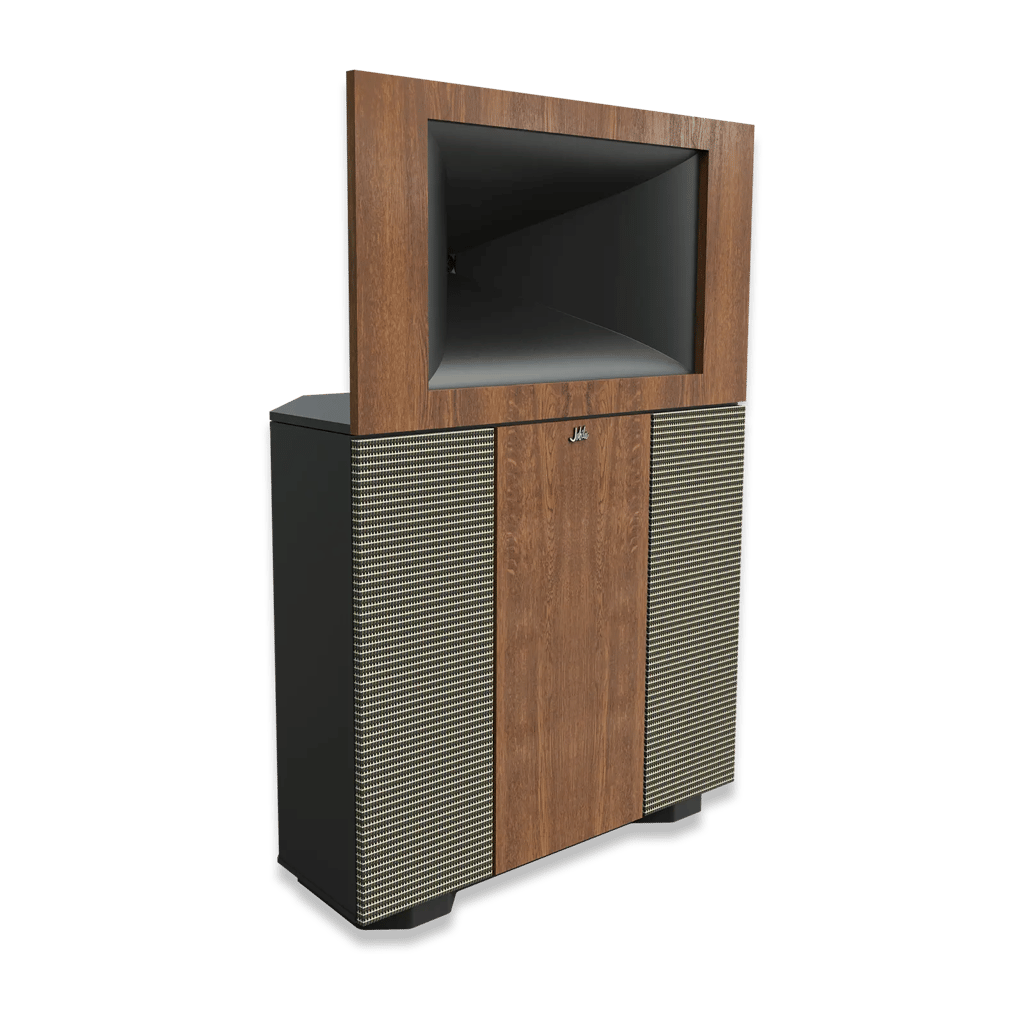

Jubilee Floorstanding Speaker

Fully horn-loaded two-way speaker made by hand in Hope, Arkansas. Featuring book-matched wood veneer, an external DSP crossover, and 105 dB sensitivity.

The flagship of the Heritage series, outperforming even the mighty Klipschorn, the Jubilee offers concert scale and power at home. This fully-horn loaded two-way loudspeaker uses a patented time-tested technology with modern-day engineering and materials developments.

This means an amazing 105 dB efficiency, allowing you to pressurize large rooms with the smallest amps. The Jubilee offers clean, extremely dynamic sound throughout the frequency range.

Horn-Loaded High Efficiency

Combining the efficiencies of both horn-loaded and vented systems, the Jubilee offers staggering low-frequency performance at extremely high senstivity. Even a 1 W SET amp will fill a huge room with concert level sound, with such low levels of distortion, it'll truly be hard to believe that the musicians aren't in the room.

High frequencies are handled by an all-new 5" compression driver with a titanium diaphragm. This large driver offers wide bandwidth reproduction, meeting Paul Klipsch's dream of a full-range two way system with no need of a separate mid-range driver.

Active DSP Crossover

An external active DSP crossover makes phase and timing calculations to perfection, ensuring sound so real you feel you can touch it. It also offers low- and high-frequency trim controls, and is designed to look great on your audio rack.

Specifications

HF Driver: K-693 5” Titanium Diaphragm Compression Driver

LF Driver: K-281 12” Fiber-Composite cone woofer

Frequency Response (+/- 3 dB): 18 Hz – 20 kHz

Sensitivity: 105dB

Nominal Impedance (LF, HF): 8 Ohm, 16 Ohm

Minimum Impedance (LF, HF): 3.8 Ohm, 8 Ohm

Crossover Frequency: 340 Hz

Dimensions (WDH): 50" x 69” x 30”
