JBL

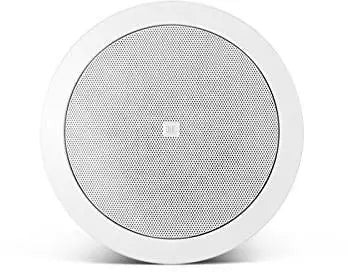

Jbl Series Control 24ct Background Ceiling Speaker
star
star
star
star
star
(10 Reviews)
In Stock
₹14,400.00
check_circle
In Stock
visibility
300 people are viewing this right now
Shipping calculated at checkout.
Only 8 item(s) left in stock
check_circle
Product Description
check_circle
Wide coverage allows fewer speakers.
check_circle
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
check_circle
Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround; 19 mm (.75 in) titanium coated.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Wide coverage allows fewer speakers.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround; 19 mm (.75 in) titanium coated.
- High power, wide frequency response and low distortion for high sound level capability.
| IN THE BOX | |
|---|---|
| Sales Package | JBL Series Control 24CT Background Ceiling speaker and User documentation |
| General | |
|---|---|
| Brand | JBL |
| Model | CONTROL 24CT |
| Year | |
| Color | white |
| Dimension | |
|---|---|
| Dimension | 11.43 x 33.02 x 15.24 cm |
| Weight | 3.31 Kilograms |
| Specification | |
|---|---|
|
Frequency Range
|
80 Hz - 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 70V: 30W, 15W, 7.5W (& 3.7W @ 70V) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB (top 70V/100V tap) |
| Nominal Impedance | 16 ohms (Min Z 16.1 ohms @ 320 Hz) |
| Sensitivity | 86 dB (100 Hz - 10 kHz) |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals. |
| Drivers |
LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)
|
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 Year |
