JBL

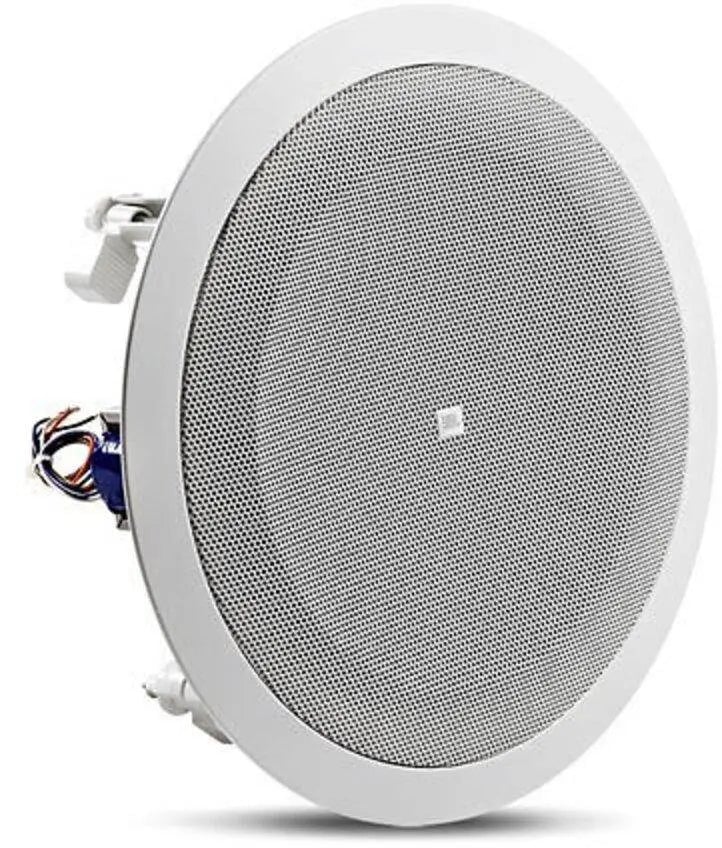

JBL HPD8138 ceiling-loudspeaker
star
star
star
star
star
(10 Reviews)
In Stock
₹11,619.00
check_circle
In Stock
visibility
306 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Product Description
check_circle
Full-range 8-inch dual-cone speaker with a wide frequency range of 95 Hz to 18 kHz.
check_circle
High sensitivity of 97 dB, providing clear sound with minimal amplifier power.
check_circle
Lightweight and compact, with a total weight of around 1.4 kg (3 lbs), and a depth of 3.9 inches (99 mm).
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Full-range 8-inch dual-cone speaker with a wide frequency range of 95 Hz to 18 kHz.
- High sensitivity of 97 dB, providing clear sound with minimal amplifier power.
- 70V/100V transformer with multiple tap settings (6W, 3W, 1.5W, 0.75W), allowing flexible installation in distributed sound systems.
- Contemporary design that blends well with various decors. UL certified for air handling spaces when installed with appropriate backboxes.
- Designed for in-ceiling installation with compatibility for backcans and tile bridges like the JBL MTC-81BB8 and MTC-81TB8.
- Lightweight and compact, with a total weight of around 1.4 kg (3 lbs), and a depth of 3.9 inches (99 mm).
| IN THE BOX | |
|---|---|
| Sales Package | JBL HPD8138 - 8"Full-Range In-Ceiling Loudspeaker, User documentation |
| General | |
|---|---|
| Brand | JBL |
| Model | HPD8138 |
| Color | white |
| Specifications | |
|---|---|
| Drivers |
200 mm (8 in) Full-Range, Dual-cone
|
| Frequency Range (-10dB) |
95 Hz – 18 kHz
|
| Coverage Angle |
90° conical
|
| Sensitivity |
97 dB (2k – 8k Hz)
|
| Driver Power Capacity |
40W (160W peak), 2 hrs25W (100W peak), 100 hrs
|
| Transformer Taps |
6W, 3W, 1.5W, (0.75W at 70V only)
|
| Input Connectors |
Bare Wire
|
| Magnet |
10 ounces (283 g)
|
| Safety Agency |
Transformer is UL registered per UL1876
|
| Installation |
Full assembly consists of 8138 speaker plus MTC-81BB8 backbox andMTC-81TB8 tile bridge. Four screw holes at industry standard 286 mm (11.25 in) mounting circle.
|
| Mounting points |
4 points on 286 mm (11.25 in) diameter mounting circle
|
| Ceiling Cutout Size |
300 mm (11.75?) with tile bridge and backbox.228 mm (9.0?) diameter as stand alone.
|
| Power Rating |
See transformer taps
|
| Dimension | |
|---|---|
| Dimension | 327 x 84 x 99 mm |
| Weight | 1.4 kg |
| Warranty | |
|---|---|
| Warranty Type | Official manufacturer warranty |
| Warranty Period | 5 Year |
