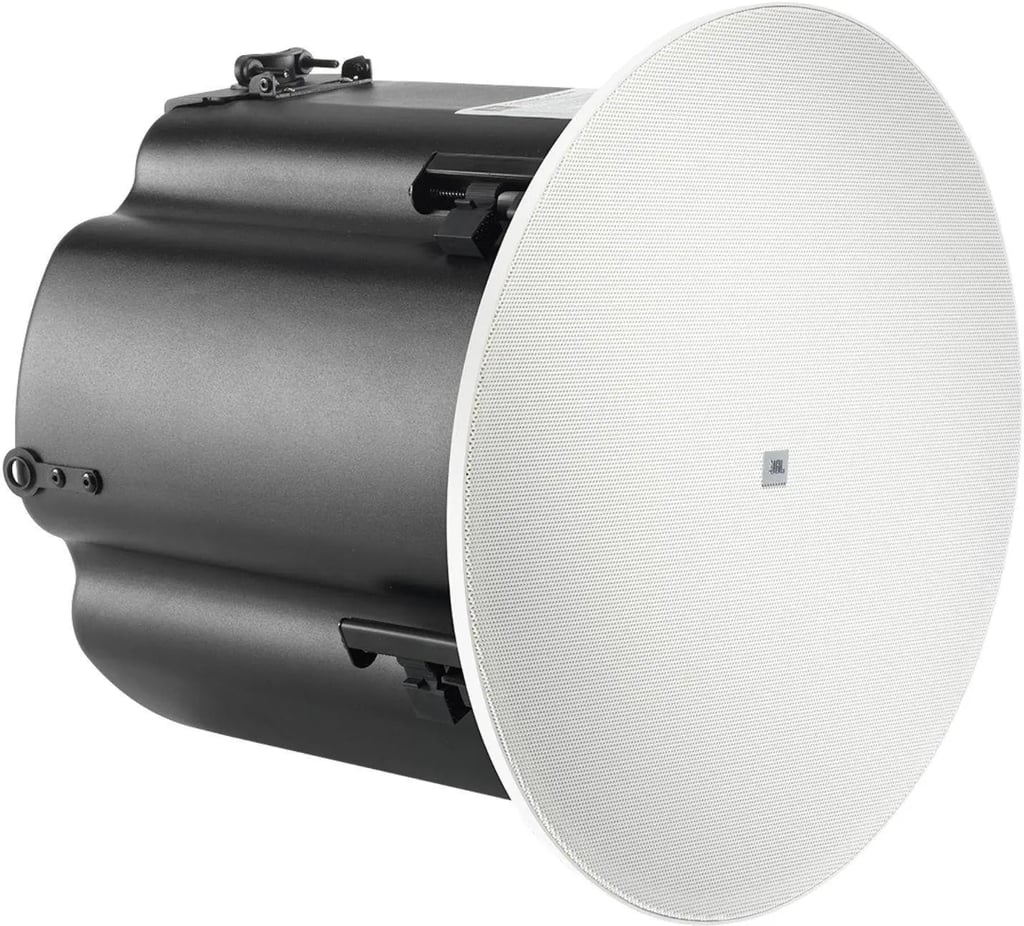

JBL Control 419CS/T Ceiling-Mounted Loudspeaker
star
star
star
star
star
(10 Reviews)
In Stock
₹32,199.00
check_circle
In Stock
visibility
375 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Product Description
check_circle
8" subwoofer driver with 1.5" copper voice coil
check_circle
Supports 8-ohm direct mode and 70V/100V systems
check_circle
Built-in low-pass filter for smooth bass integration
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 8" subwoofer driver with 1.5" copper voice coil
- Supports 8-ohm direct mode and 70V/100V systems
- Built-in low-pass filter for smooth bass integration
- Dual tapered ports for enhanced bass and low distortion
- Compatible with passive and DSP-controlled crossovers
- Protection circuitry prevents damage from overloads
| IN THE BOX | |
|---|---|
| Sales Package |
1 x Control 419CS/T 8" Ceiling Subwoofer
1 x Grille (White round bezel-less grille for magnetic attachment with pre-attached safety tether and tether clip)
1 x C-ring
2 x Rubber boot
1 x Cable strain relief
1 x C-ring/tile-rail screws
1 x Cutout template
1 x Tile rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
1 x Connector (2-pin removable locking euro-block)
|
| General | |
|---|---|
| Brand | JBL |
| Model | Control 419CS/T |
| Color | white |
|
Frequency Range (-10 dB)
|
47 Hz – 320 Hz |
|
Power Capacity
|
320 W Continuous Program (2 hrs) ; 160 W (640 W Peak), Continuous IEC shaped Pink Noise (2 hrs) ; 80 Watts (320 W Peak) Continuous IEC shaped Pink Noise Power (100 hrs) |
|
Sensitivity
|
89 dB96 dB in ceiling near corner (?/2 loading) 93 dB in ceiling near wall (1 ? loading) 90 dB, 1 W @ 1 m (3.3 ft) in center of ceiling (2 ? loading, half-space) |
|
Coverage Angle
|
180° conical |
|
Maximum SPL (1m)
|
124 dB peak (118 dB continuous, 2 hrs, ?/2 loading) ; 118 dB peak (112 dB continuous, 2 hrs, 2 ? loading) |
|
Nominal Impedance
|
8 ohms |
|
Transformer Taps
|
70 V = 60 W, 30 W, 15 W & 7.5 W ; 100 V = 60 W, 30 W, 15 W |
|
LF Driver
|
200 mm (8 in) |
| Dimension | |
|---|---|
| Dimension | 289 mm (11.4 in) H x 346 mm (13.6 in) dia. 280 mm (11.0 in) |
| Weight | 8.8 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
