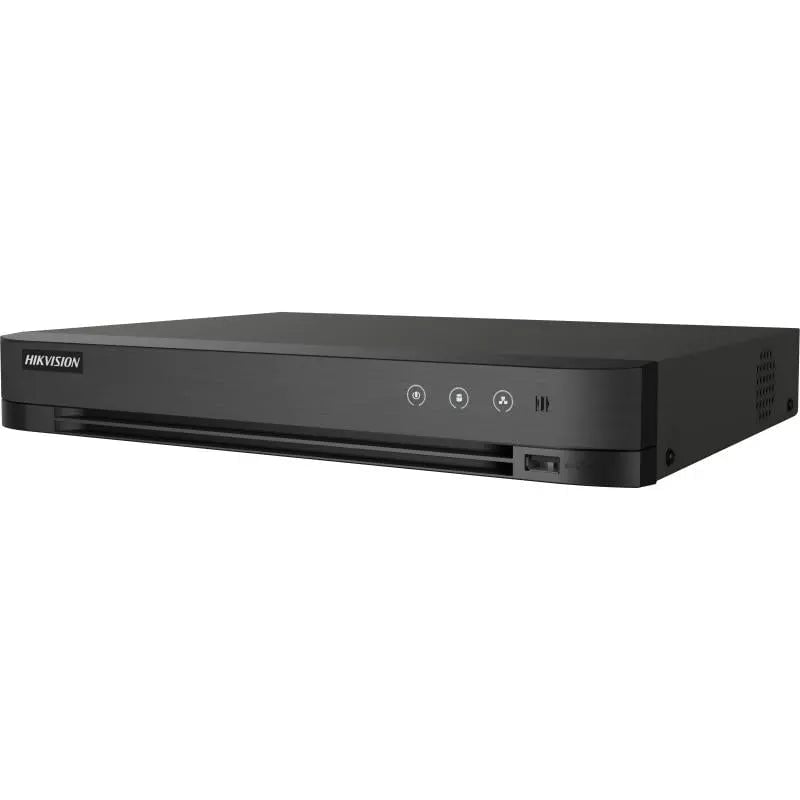

iDS-7204AHQHI-M1 - ATM DVR
- Devices And Servers
- Alarm InputsN/A
- Alarm OutputsN/A
- Video And Audio
-
IP Video Input
Defaulted 0-ch; Up to 6-ch (Disabling analog channels and ATM functions.)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input4 MP30, 4 MP25, 1080p30, 1080p25, 720p25, 720p30, 720p50, 720p60
- AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS InputPAL/NTSC
-
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI simultaneous output
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Synchronous Playback4-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Audio Bitrate64 Kbps
- Dual-StreamSupport
- Audio CompressionG.711u
- Stream TypeVideo, Video & Audio
- Network
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
-
USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 18 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- ≤ 1.16 kg (2.6 lb) (without HDD)
- Certification
- FCC47 CFR Part 15, Subpart B
- CEEN 60950-1, EN 55032, EN50130-4, EN 61000-3-2, EN 61000-3-3
- Smart ATM
- Capability1-ch human face mode and 1-ch panel mode for analog channel only
- Panel ModeHuman entrance, operation timeout, sticking scrip, and installing scanner
- Human Face ModeNormal human face, abnormal human face, multiple human faces, wearing sunglasses, and using mobile phone
