HIKVISION

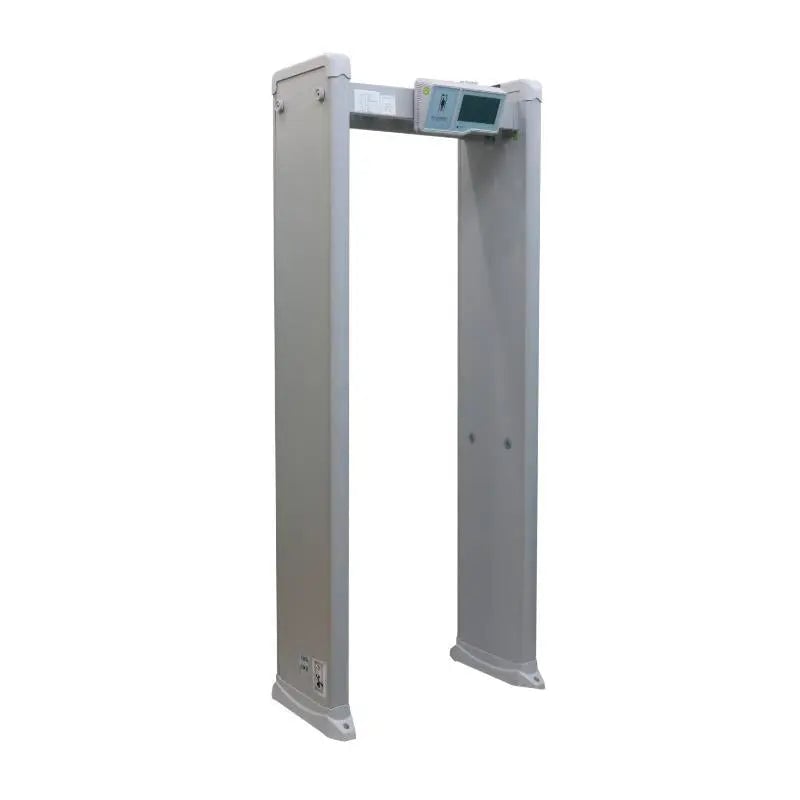

Hikvision Walk-though Metal Detector ISD-SMG318LT-D
star
star
star
star
star
(3 Reviews)
In Stock
₹225,000.00
₹350,000.00
check_circle
In Stock
visibility
4 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
check_circle
Dimension Parameters
check_circle
Appearance And Dimension
check_circle
Detector dimension(without dome camera):2190 x 893 x 535mm (H x W xD)
check_circle
Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D)
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
- Dimension Parameters
-
Appearance And Dimension
Detector dimension(without dome camera):2190 x 893 x 535mm (H x W xD)
Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D)
Package dimension 2288 x 728 x328mm(H x W x D)
- Performance Parameters
- Power Supply12 VDC, 3.15A, 36W（with power adapter）
- Communication Protocol
-
Network Communication
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NT
P,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour
- General Standard
-
Working Temperature
Speed dome: 5℃ to 40℃, ＜95% RH
Walk-through metal detector: -10℃~55℃,＜95% RH
- Power ConsumptionAbout 36W
- Protection LevelDome camera: IP66
- About 80Kg
- Thermal Imaging
- SensorVanadium oxide uncooled sensor
- Max. Resolution160× 120
- Pixel Interval17μm
- Response Waveband8 to 14μm
- Lens (Focal Length)3mm
- Field Of View50°×37.2°
- Min. Focusing Distance0.3m
- Pseudo Color15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue
- Visible Light
- Sensor4 MP 1/2.7" Progressive Scan CMOS
- Resolution2688×1520@25fps
- Min. Illuminance0.0018Lux @(F1.6,AGC ON) ,0 Lux with IR
- Focal Length4mm
- Field Angle84.0°×44.8°
- WDR Range120dB
- IR DistanceMax. 15 m
- Temperature Measurement
- Temperature Exception DetectionExpert mode: 10 points, 10 frame, 21 rules on each line
- Body Temperature MeasurementAI face detection, multi-target detection
- Measurement Range30 to 45℃
- Temperature AlarmAlarm triggered when the temperature is over the threshold
-
Measurement Accuracy
No black body:±0.5℃
With black body: ±0.3℃
- Compression
- Video CompressionH.265/H.264/MJPEG
- H265Main Profile
- H264Baseline Profile / Main Profile / High Profile
- Video Bit Rate:32 Kbps to 8Mbps
- Video StandardG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate::64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
