HIKVISION

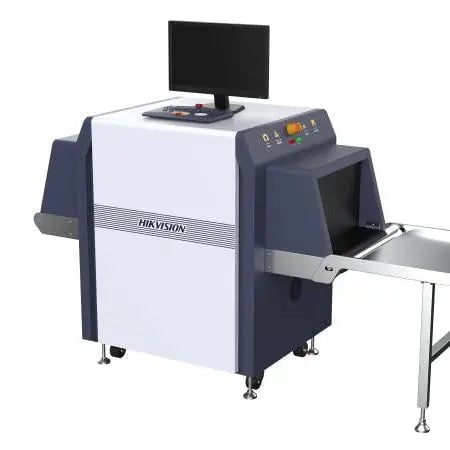

Hikvision Intelligent X-Ray Security Inspection System ISD-SC5030S-2CVL
star
star
star
star
star
(3 Reviews)
In Stock
₹1,350,000.00
₹1,550,000.00
check_circle
In Stock
visibility
4 people are viewing this right now
Shipping calculated at checkout.
Only 6 item(s) left in stock
check_circle
Dimension Parameters
check_circle
Tunnel Size505mm W X308 mm H
check_circle
Specification Parameters
check_circle
Max. Load100 kg (220.46 lb)
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
- Dimension Parameters
- Tunnel Size505mm W X308 mm H
- Specification Parameters
- Max. Load100 kg (220.46 lb)
- Conveyor Speed0.22 m/s
- Performance Parameters
- PenetrationStandard 30mm, 34+ mm available by customize
- Wire Resolution40AWG
-
Spatial Resolution
Vertical: 1.0 mm (0.04")
Horizontal: 1.0 mm (0.04)
- General Standard
- Power Consumption0.6 kw
- 310 kg (639.34 lb)
- Radiation Dose
- X-Ray Dose Per Inspection< 5μGy
- X-Ray Leakage< 1 μGy/h
- Other Parameters
- X-Ray GeneratorAnode Voltage: Standard 140 kV, 100% Oil Cooling
- General
- Power Supply220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
- Working Temperature0 °C to 40 ° C (41 °F to 104 °F)
- Working Humidity0% to 90%
- Dimension1586mm × 1160mm × 760mm (L x H x W)
