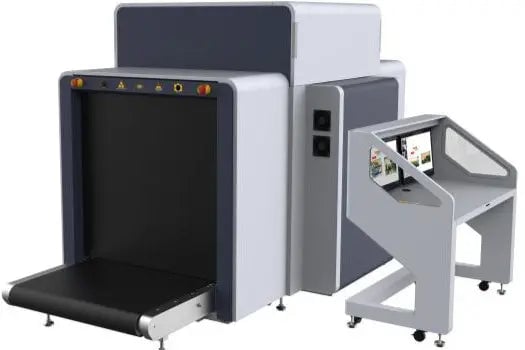

Hikvision Intelligent X-Ray Security Inspection System ISD-SC100100D-H4CVL
star
star
star
star
star
(3 Reviews)
In Stock
₹3,560,000.00
₹4,000,000.00
check_circle
In Stock
visibility
4 people are viewing this right now
Shipping calculated at checkout.
Only 8 item(s) left in stock
check_circle
Dimension Parameters
check_circle
Tunnel Size1000mm Wx1000 mm H
check_circle
Specification Parameters
check_circle
Max. Load200 kg (440.92 lb)
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
- Dimension Parameters
- Tunnel Size1000mm Wx1000 mm H
- Specification Parameters
- Max. Load200 kg (440.92 lb)
- Conveyor Speed0.2m/s, 0.3m/s, 0.4m/s adjustable
- Performance Parameters
- Penetration30mm standard, 34mm typical.
-
Wire Resolution
Bottom Angle of View: 36AWG
Side Angle of View: 38AWG
-
Spatial Resolution
Bottom Angle of View:1.3mm(Horizontal and vertical)
Side Angle of View: 1.3mm(Horizontal and vertical)
- General Standard
- Power Consumption＜1.5 KVA
- 1500 kg
- Radiation Dose
- X-Ray Dose Per Inspection< 10 μSv
- X-Ray Leakage< 1 μSv/h
- Other Parameters
-
X-Ray Generator
Anode Voltage: 160KV Double generator
100% Oil Cooling, vertical and horizontal beam direction.
- General
- Power SupplyAC220V+10%~-15% 50±3Hz
- Working Temperature0 °C to 45 °C (32 °F to 113 °F)
- Working Humidity10% to 90%
-
Dimension (W × H × D)
Main engine appearance dimensions:3600 mm × 1536 mm × 1825mm (L x W x H)
Single display professional operation Desk Size:1200 mm × 650 mm × 1180mm (L x W x H)
