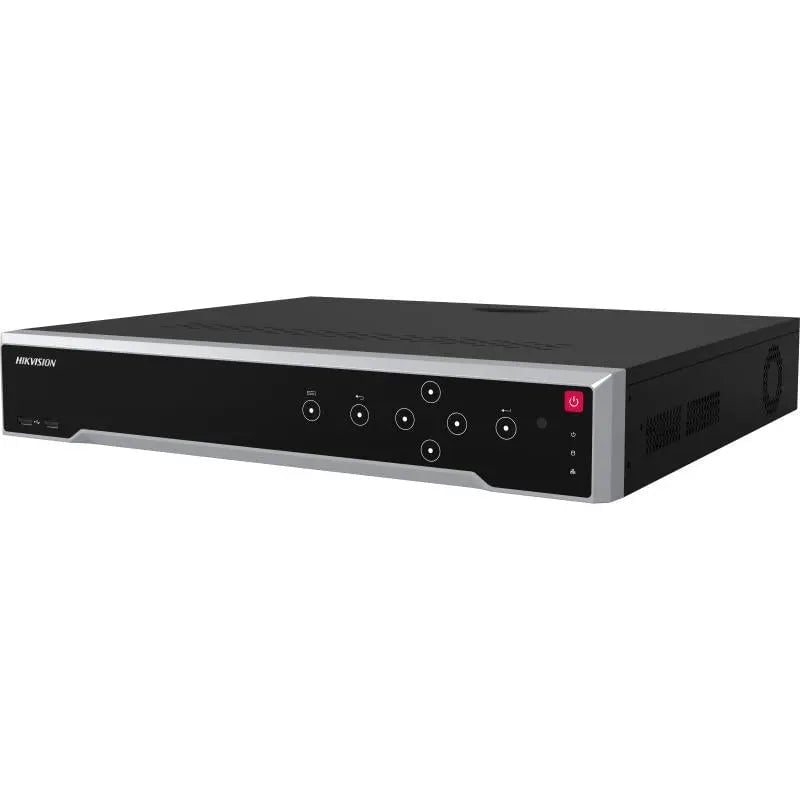

Hikvision 32-ch 1.5U 16 PoE 8K NVR DS-7732NI-M4/16P
- Video And Audio
-
IP Video Input
32-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
-
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- VGA Output1920 × 1080/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
-
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback16-ch
- Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- RAID
- RAID TypeN/A
- Auxiliary Interface
- ESATA1 eSATA interface
- SATA4 SATA interfaces
- CapacityUp to 16 TB capacity for each disk
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- Alarm In/Out16/9
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
-
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
- ≤ 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
-
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
