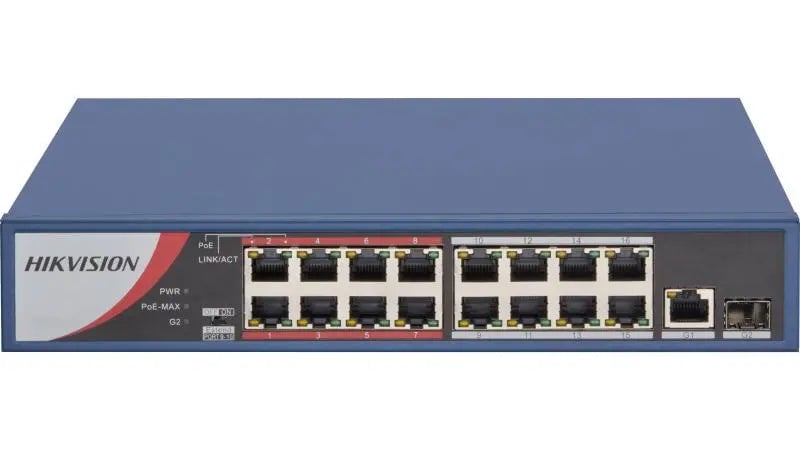

HIKVISION 16 Port PoE Switch (DS-3E0318P-E/M)

16 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Specification:
PoE Power SupplyPoE StandardIEEE 802.3af, IEEE 802.3atPoE Power PinPorts for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.PoE PortPorts 1 to 16Max. Port Power30 WPoE Power Pudget130 WMax. Power Consumption150 WNetwork ParametersPort Number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical portPort TypeRJ45 port, full duplex, MDI/MDI-X adaptiveStandardIEEE 802.3, IEEE 802.3u, IEEE 802.3xForwarding ModeStore-and-forward switchingWorking ModeStandard mode (default); Extend modeHigh Priority PortsPorts 1 to 8Ports For Long-Distance TransmissionPorts 9 to 16MAC Address Table4 KSwitching Capacity7.2 GbpsPacket Forwarding Rate5.356 MppsInternal Cache2.75 MbitsGeneralShellMetal materialGross Weight2.58 kg (5.69 lb)Net Weight1.8 kg (4.0 lb)Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Storage Humidity5% to 95% (no condensation)Power Supply100 to 240 VAC, 50/60 Hz, Max. 2.5 APower Consumption In Idle20 WApprovalEMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
