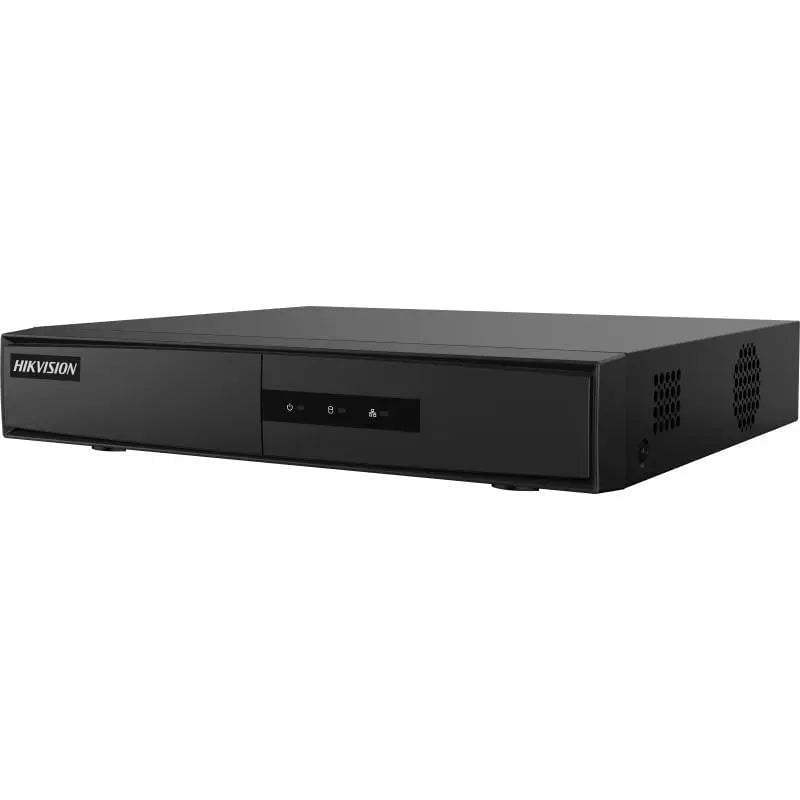

HIKVISION 16 Channel 2 SATA H.265+ Embedded NVR (DS-7616NI-Q2)

Description: • Third-party network cameras supported • Up to 6 Megapixels resolution recording • Incoming bandwidth: 160Mbps; Outgoing bandwidth: 80Mbps • HDMI and VGA output at up to 1920×1080P resolution • HDD quota and group management • 2 SATA Port upto 6TB each; • Two Years Warranty!
Video/Audio Input Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ) IP video input: 16-ch IP Video input: Up to 8 MP resolution Network Incoming bandwidth: 160Mbps Outgoing bandwidth: 80Mbps Video/Audio Output HDMI Output: 1-ch, resolution: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Audio Output: 1-ch, RCA (Linear, 1kΩ) Synchronous Playback: 16-ch VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Decoding Decoding format: H.265/H.265+/H.264/H.264+/MPEG4 Capability: 1-ch @ 8 MP / 4-ch @ 1080p Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Hard Disk SATA: 2 SATA interfaces Capacity: Up to 6TB capacity for each disk Capacity: Up to 6TB capacity for each HDD External Interface Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface USB Interface: 2, USB2.0 General Power Supply: 12 VDC Power: ≤ 40W Consumption(without hard disk and POE): ≤ 15W Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF) Working Humidity: 10 % ~ 90 % Chassis: 1U chassis Dimensions: 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") Weight(without HDD): ≤ 1.8 kg (4.0 lb)
