Genelec

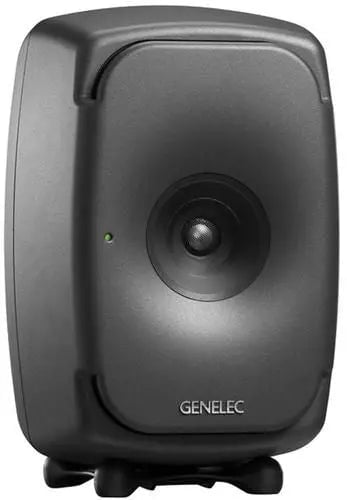

Genelec 8341A SAM Three-way Coaxial Monitor System
star
star
star
star
star
(10 Reviews)
In Stock
₹287,453.00
₹289,453.00
check_circle
In Stock
visibility
702 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
check_circle
Product Description
check_circle
Minimal distortion and high SPL output for accurate sound
check_circle
Compact and efficient with Class D amplification
check_circle
Advanced Directivity Control Waveguide (DCW) for superior sound imaging
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Minimal distortion and high SPL output for accurate sound
- Compact and efficient with Class D amplification
- Advanced Directivity Control Waveguide (DCW) for superior sound imaging
- Balanced analog and digital (AES/EBU) inputs for versatile connectivity
- Accurate bass reproduction with extended low-frequency response
- Rugged, non-resonant aluminum enclosure for enhanced fidelity
| IN THE BOX | |
|---|---|
| Sales Package |
Genelec 8341A SAM Studio Monitor (Producer Finish)
Mains Power Cable
GLM Network Cable (16.4" / 5m)
|
| General | |
|---|---|
| Brand | Genelec |
| Model | 8341A |
| Color | black |
|
Number of Included Monitors
|
Single Monitor |
|
Enclosure
|
Bass-Reflex/Ported, Shielded |
|
Total Power Output
|
550 W |
|
Tweeter
|
1x 0.7" / 19 mm Metal Dome |
|
Midrange
|
1x 3.5" / 9 cm Cone |
|
Woofer
|
2x 6.7" / 17 cm Oval Cone |
|
Amplifiers
|
HF: 150 W
MF: 150 W
LF: 250 W
|
|
Frequency Response
|
45 Hz to 20 kHz ± 1.5 dB |
|
Maximum Sound Pressure Level (SPL)
|
118 dB |
|
Total Harmonic Distortion (THD)
|
0.05% |
|
Maximum Input Level
|
+24 dBu |
|
Analog Input Sensitivity/Gain
|
+36 to -6 dBu (Continuously Variable) |
|
Protections and Limiting
|
Driver Protection |
|
EQ
|
1x HF Tilt: -4 to +2 dB at 5 kHz 1x LF Tilt: -6 to -2 dB at 800 Hz (2 dB Increments) |
|
Filters
|
2 x High-Pass at 38 Hz
2 x Low-Pass at 37 kHz
16 x Parametric Notch Filter
|
|
Crossover Frequency
|
Low-Pass: 500 Hz
High-Pass: 3 kHz
|
|
App-Based Signal Processing
|
GLM Software Adjustment
Parametric Notch Filter
Low Shelf EQ
High Shelf EQ
|
|
Maximum Sampling Rate
|
192 kHz / 24-Bit |
|
Audio I/O
|
1x XLR 3-Pin Balanced Input (10 Kilohms) |
|
Digital Audio I/O
|
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Out/Thru
|
|
Network I/O
|
2x RJ45 Ethernet |
|
AC Input Power
|
100 to 240 VAC, 50/60 Hz |
|
Power Consumption
|
0.5 W (Standby)
16 W (Idle)
250 W (Maximum)
|
|
Mounting Points
|
2x M6 (Rear Panel)
1x M10 (Bottom Panel)
|
| Dimension | |
|---|---|
| Dimension | 237 x 351 x 243 mm |
| Weight | 9.8 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 2 year |
