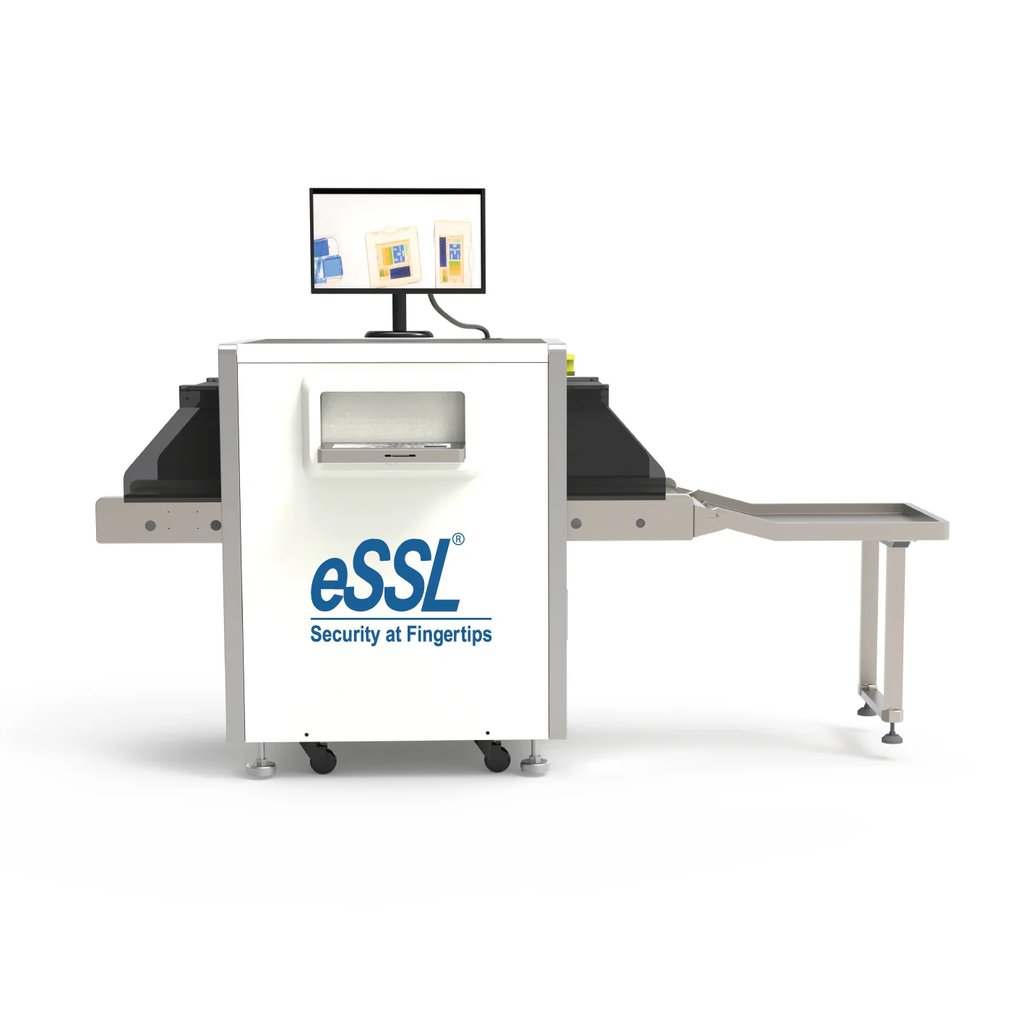

eSSL eBS6550A X-Ray Baggage Scanner | 650 (W) ×500 (H) mm

Product Introduction:
The 6550A X-ray Security Inspection Equipment is an innovative security solution that utilizes
X-ray penetration to conduct rapid, non-intrusive inspections of luggage and cargo. It is suitable
for government agencies, transportation hubs, logistics facilities, courts, procuratorates, prisons,
embassies, factories, schools, hospitals, stadiums, exhibition halls, and entertainment venues to
inspect official briefcases, mail packages, express shipments, carry-on luggage, and small
parcels.
• Easy to use and learn
• radiological safety protection
• Simple and user-friendly interface
• Safety of film, chip and electronic products
Product Features:
• Modular: The internal circuit structure of the equipment adopts modular design, and improves
the anti-interference ability of the equipment through reasonable layout design, ensures the
stable operation of the equipment, and facilitates maintenance;
• Digitalization: The hardware system employs the latest ASIC full-digital solution design with
In-depth deep acquisition technology. Compared to analog acquisition solutions, it optimizes
circuit design, featuring high integration, strong anti-interference capability, and clear imaging
effects.
• Full functionality: Customizable modules can be added based on customer needs, with ports
opened for customization. For example, AI-powered image recognition (dangerous goods
alarm function).

Device Features:
Image processing features: color/black and white, local enhancement, high contrast, low
contrast, super enhancement, organic matter removal, inorganic matter removal, color reversal,
brightness enhancement, dark reduction, grayscale, enlargement, pseudo color, image
restoration, image storage
System features: Power-on self-test, multi-level user management, image management, TIP
management, curve diagnostics, keyboard diagnostics, device information queries, multi-format
image export, OSD operation functions, image mirroring, 1-64x stepless zoom, magnifying glass,
operator training, precise packet image localization, channel reminder clearing, remote
operation software, and one-touch shutdown.
Outline dimension Channel size 650mm*500mm (width*height)
Device size 1876mm*934mm*1300mm
(length*width* height)
Performance
parameter
Line resolution AWG38(Φ0.102mm)
Spatial resolution 1.0mm horizontal; 1.0mm vertical
Force of penetration 12mm steel plate
X radiographic source 80KV-100KV 0.5mA
Radiation dose Leakage dose <0.5µSv 50mm from the device
housing
Single dose <5µGy/h
Conveyor Parameters Conveyor height 660mm (belt height from ground)
Line speed 0.22 m/s
Display Parameters Display size 21.5“
Resolution ratio 1920*1080P
Machine parameter Power Consumption 500W
Source AC220V 50Hz
Noise <55dB (1 meter from the device)
Working temperature and humidity 5℃~40℃ 10%~90% Non–
Condensing
Storage temperature and humidity -20℃~40℃ 0~90% Non–
Condensing
Weight of equipment 280 Kg
