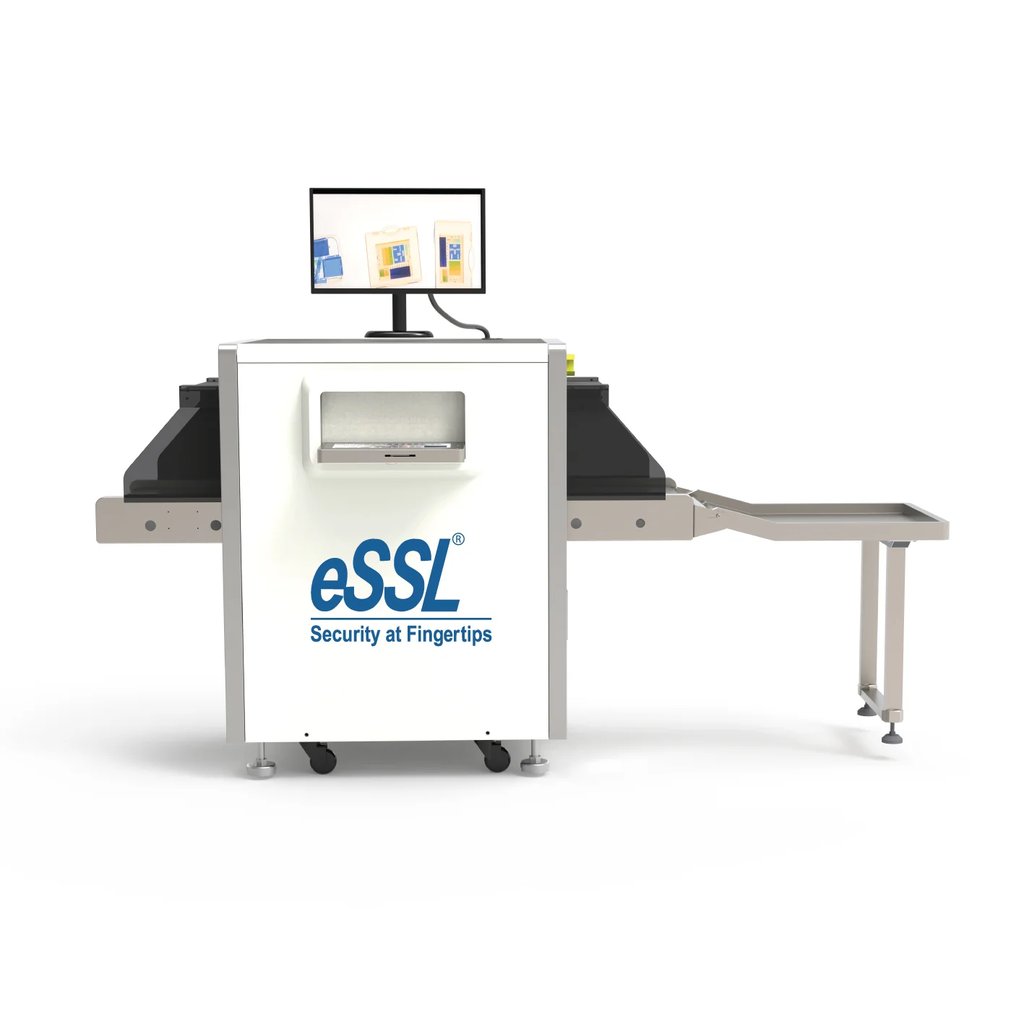

eSSL eBS6040A – X-Ray Baggage Scanner | 600 (W) ×400 (H) mm

General Specifications
Tunnel Size : 600 (W) × 400 (H) mm
Conveyor Speed : 0.22m/s
Conveyor Max Load : 150 kg
L-shaped array detector : 24bit
Single inspection dosage : < 1.0μGy
Leakage radiation : < 0.06μGy/h
Wire Resolution : 40 AWG(0.0787mm metal line)
Steel Penetration : 10mm
Film Safety : For ISO 1600
Radiation levels at 5 cm from the outer surface of the equipment : < 0.06μGy/h

X Generator
Orientation : Upward
Tube Current : 0.4~0.7MA (adjustable)
Anode voltage : 80KV
X-ray divergence angle : 60 °
Generator cooling/working periods : sealed oil bath with forced air/100%
Number of X-ray tubes in the equipment : 1
Maximum tube potential (kV) of the mentioned X-ray : 100kV

Operating Environment
Storage Temperature : -20°C to 60°C
Operating Temperature : 0°C to 45°C
Relative Humidity : 20 to 95% non-condensing
System Power : 220 VAC (±10%) 50 ±3HZ
Power wastage : 1.0 KW (Max)
Noise : < 58DB

X-RAY SENSOR
L-shaped array detector, 24bit Single energy

MULTI-ENERGY
High/low energy: Switch from high energy to low energy

COLOR MATERIAL IDENTIFICATION
Organic objects in orange, inorganic objects in blue, mixture in green

IMAGE PERFORMANCE SYSTEM
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration: display Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status

Special Features
Network interface : Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety x-ray : X-ray is transmitted under automatic control, avoiding the error;
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye : Capable of expediently observing the magnifying area
Self-diagnosis function : Give message automatically if malfunction for prompt maintenance
CE /IEC certificate or country of origin certificate or equivalent mentioning model name of applied equipment : CE EN ISO 12100:2010
