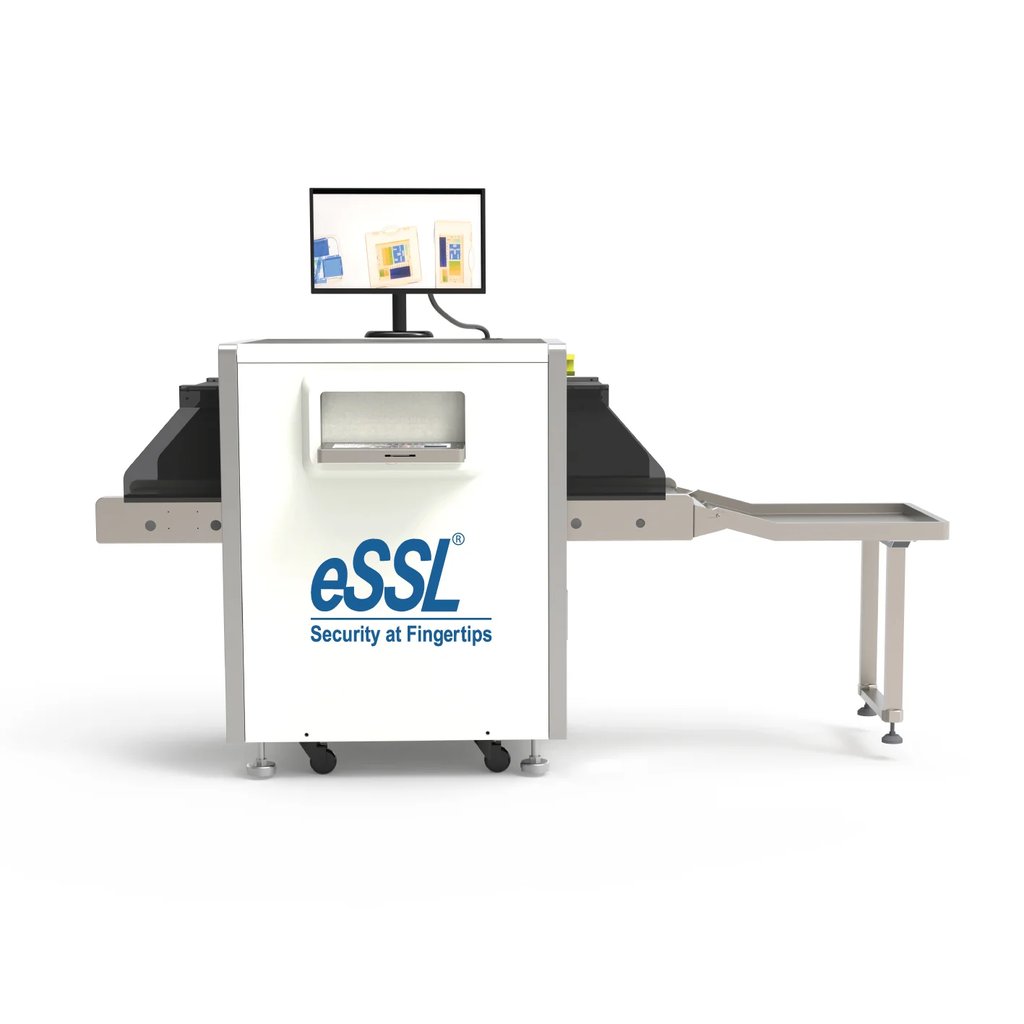

eSSL eBS5030A – X-Ray Baggage Scanner | 500 (W) ×300 (H) mm

The eBS-5030A is a high-performance Single Energy X-Ray Baggage Scanner designed for non-intrusive inspection of briefcases, hand luggage, postal bags, and small to medium-sized packages. Using advanced digital imaging and computer processing technology, it ensuressecumet clear imaging, reliable operation, and efficient threat detection.

Ideal for high-security environments such as courts, prisons, hotels, museums, commercial buildings, and gyms.

Key Features and Benefits

Advanced Digital Technology: Modular, fully digital hardware (ASIC design) with deep acquisition technology for high integration, strong anti-interference capability, and superior imaging clarity.

Intuitive Operation: Equipped with a One-Key Shutdown System, infrared energy-saving sensor, and automatic fault self-check for safe and convenient use.

Intelligent Software: Includes real-time image processing (RTOS), Threat Image Projection (TIP), dangerous-goods auxiliary alarm, and fast image backup.

High-Quality Image Performance: Uses an L-shaped photodiode detector and a high-resolution 19-inch color LCD display for detailed, accurate image analysis.

Image Processing Functions

Material Discrimination:

Organic matter – Orange

Inorganic matter – Blue

Mixed materials – Green

Image Enhancements:

Edge Enhancement: Sharpens object outlines

High/Low Penetration: Improves contrast in dense or light areas

Inversion: White/black/color negative display

Zoom: Up to 64× continuous magnification (Eagle Eye)

Replay: Review previously scanned images

Image Storage:
Stores up to 100,000 images in BMP, JPG, or PNG formats (customizable).

General Specifications

Feature    Specification
Tunnel Size (W × H)    500 mm × 300 mm
Conveyor Speed    0.22 m/s
Max Conveyor Load    100 kg (uniform load) / up to 150 kg (depending on model)
Wire Resolution    40 AWG (0.0787 mm metal wire)
Steel Penetration    ≥ 8 mm (some variants ≥ 10 mm)
Power Supply    AC 220V ±10%, 50Hz ±3%
X-ray Leakage    < 0.5 μGy/h (meets safety standards)
Film Safety    Safe for ISO 1600 film
Dimensions (L × W × H)    Approx. 1500 mm × 770 mm × 1100 mm
Weight    Approx. 220 kg (some variants up to 410 kg)
