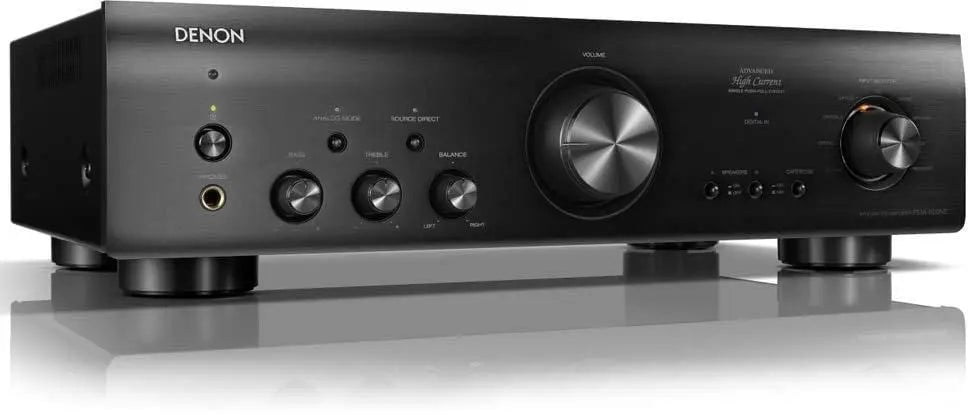

Denon Pma-800ne Stereo Integrated Amplifier

Product Description

• Optical and Coaxial Digital Inputs
• High Power 85W Integrated Amplifier
• Main Transformer with Individual Wiring
• Powered by the Denon Advanced High Current (AHC) single push-pull circuit

  IN THE BOX
  Sales Package	Denon Amplifier, User documentation

  General
  Brand	Denon
  Model	PMA-800NE
  Color	black

  Specifications
  Audio Wattage	170 Watts
  Speaker Output Channel Quantity	2
  Power Output	2 x 50 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD 2 x 85 W @ 4 Ohms, 1 kHz, 0.7% THD
  Speaker Impedance	A or B: 4 to 16 Ohms A + B: 8 to 16 Ohms
  Total Harmonic Distortion	0.01% (rated output -3 dB, 8 Ohms, 1 kHz)
  Tone Control	Treble: ±8 dB at 10 kHz Bass: ±8 dB at 100 Hz
  Frequency Response	5 Hz to 100 kHz (0, -3 dB)
  Analog Inputs	4 x gold-plated stereo RCA 1 x gold-plated stereo RCA phono (MM/MC) with ground screw
  Digital Inputs	3 x optical TOSLINK (>-27 dBm, 660 nm) 1 x digital coaxial (0.5 Vp-p / 75 Ohms)
  Outputs	1 x stereo RCA 1 x 1/4" / 6.35 mm headphone (front)

  Dimension
  Dimension	31.27 x 43.48 x 12.19 cm
  Weight	7 kg 500 g

  Warranty
  Warranty Type	Manuafacturer
  Warranty Period	1 Year
