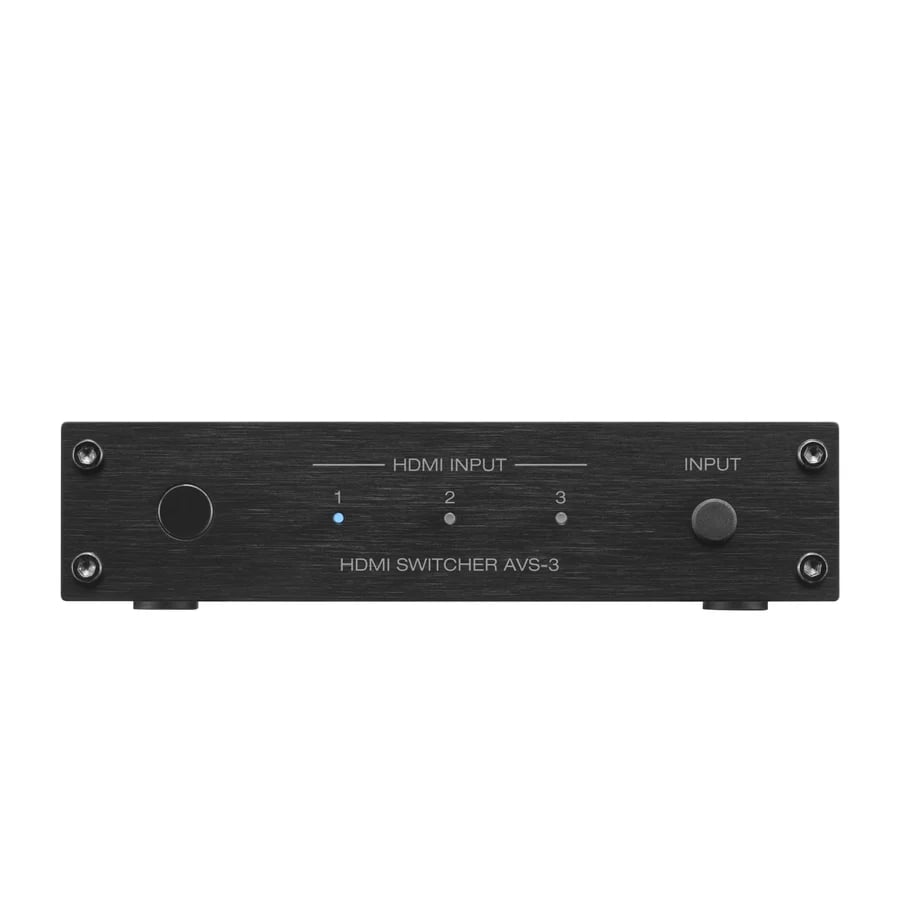

Denon AVS-3 - 3 In/1 Out HDMI Switcher

Key Features

• 3 HDMI Inputs, 1 Output: Connect up to three HDMI source devices to a single compatible AV receiver input.

• 8K Video Support: Supports up to 8K/60Hz and 4K/120Hz video pass-through.

• 40 Gbps Bandwidth: Enables high-bandwidth HDMI signal transmission.

• HDMI CEC Support: Allows automatic power-on and input switching with compatible devices.

• Remote Control Included: Easily switch between connected HDMI sources.

• Denon AVR Control: Switch inputs using the remote of compatible Denon AV receivers.

• Advanced HDR Support: Compatible with HDR10, HDR10+, Dynamic HDR and HLG.

• Gaming Features: Supports VRR, ALLM, QFT and QMS for compatible gaming systems.

• IR Repeater Compatibility: Supports external IR control for concealed installations.

• Compact Premium Design: Features a brushed black aluminium front panel and detachable wall-mount brackets.



  Specifications

  Specification	Details
  Brand	Denon
  Model	AVS-3
  Product Type	HDMI Switcher
  HDMI Inputs	3 × HDMI
  HDMI Outputs	1 × HDMI
  Maximum Resolution	8K/60Hz, 4K/120Hz
  Maximum Bandwidth	40 Gbps
  HDCP Support	HDCP 1.4 / 2.3
  HDR Support	HDR10, HDR10+, Dynamic HDR, HLG
  HDMI Features	CEC, 3D, ALLM, VRR, QMS, QFT
  Audio Format Support	LPCM, Dolby Digital, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, DSD
  Input Switching	Remote Control, HDMI CEC, Compatible Denon AVR Control
  IR Control	IR Sensor and External IR Flasher Input
  Power Supply	AC 100–240V, 50/60Hz
  Power Consumption	2.3W
  Standby Power Consumption	0.2W
  Dimensions (W × H × D)	140 × 34 × 98 mm
  Weight	0.3 kg
  Front Panel	Brushed Black Aluminium
  Accessories	Remote Control, Power Adapter, HDMI Cable, Wall-Mount Bracket
