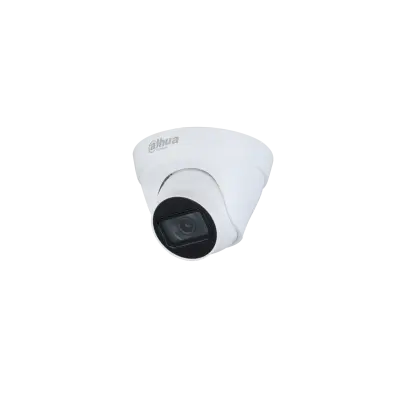

Dahua IP 2MP Dome H.265+ Network CCTV (DH-IPC-HDW1230T2)

Key Features: • 1/2.7” 2Megapixel progressive CMOS; • H.265+ & H.265 dual-stream encoding; • 20fps@1080P(1920×1080) & 25/[email protected](1280×960); • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC; • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS; • 3.6mm fixed lens; • Max IR LEDs Length 30m; • PoE; • IP67 (Weather Proof) • Two Years Warranty!
Full Description:
Image Sensor 1/2.7” 2MP PS CMOS Image Sensor Minimum Illumination 0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) Effective Pixels 1920(H)x1080(V) White Balance Auto/Natural/Street Lamp/Outdoor/Manual Lens 2.8mm fixed lens (3.6mm optional) Gain Control (AGC) Auto/Manual Video Compression H.265+/H.265/H.264+/H.264H/MJPEG(Sub Stream) Angle of View H:115°/87.5°, V:60°/47° S/N Ratio More than 50dB Back Light Comp. BLC/ HLC/ DWDR Frame Rate Main Stream: 1080P (1 ~ 20fps) ,Sub Stream: D1(1 ~ 25/30fps) Digital Zoom 16x Resolution 1080P(1920×1080)/1.3MP(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) Motion Detection Off / On (4 Zone, Rectangle) Privacy Mask Off / On (4 Area, Rectangle) ICR Auto(ICR)/Color/B/W ROI Off / On (4 Zone) Audio No WDR No Bit Rate H265: 12K~5632K , H.264: 32K ~8192K Protocol HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;NTP;Multicas; ICMP; TLS; ONVIF Profile S&G IVS No Ethernet RJ-45 (10/100Base-T) User Account 20 Users Smart Phone iPhone, iPad, Android Phone IR Range IR Range of 30 Mtr. SD Card No Operating Temperature -30°C~+60°C , Less than 95%RH Power Source DC12V, PoE (802.3af) Power Source DC12V, PoE (802.3af) Power Consumption <4.8W Weatherproof Standard IP67 Dimension Φ109mm×85.5mm(4.29''x3.36'') Weight 0.24Kg
