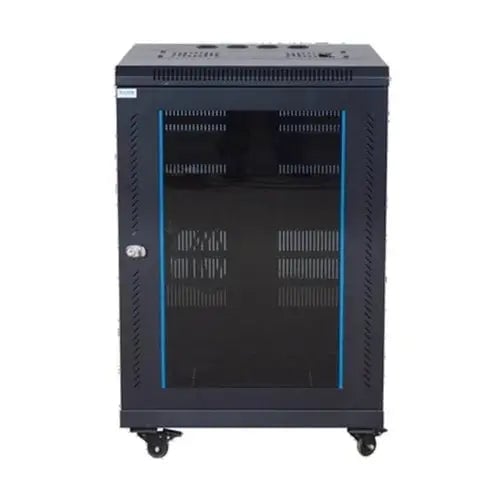

D-Link 22U Floor Standing Network Rack (600W x 600D mm) – NFR-22U-6060-BL-SK

The NFR-22U-6060-BL-SK is a high-performance, 22U floor-standing network rack enclosure designed for servers, networking hardware, audio-video systems, and telecom installations. Built from premium cold-rolled CRCA steel and finished with a durable powder coat, this rack combines industrial strength with practical usability.

Engineered to DIN 41494 standards, the enclosure features a welded steel frame with vented removable side panels, front glass door, rear perforated metal door, and a top panel equipped with dual high-efficiency cooling fans. With multiple cable entry points, castor wheels for mobility, and adjustable levelers for stability, this rack is ready for enterprise-grade deployments.

Key Features

• ✅ 22U Rack Capacity – Ample space for mounting 19" standard IT and AV equipment.

• ✅ DIN 41494 Compliance – Assured compatibility with global rack standards.

• ✅ Secure Access – Lockable toughened glass front door and vented metal rear door.

• ✅ Enhanced Cooling – Vented top and bottom panels + 2 x 180 CFM fans pre-installed.

• ✅ Removable Side Panels – Vented and welded for airflow and easy maintenance.

• ✅ Robust Construction – Fully welded frame made of CRCA steel.

• ✅ Mobility & Stability – Includes 4 castor wheels and 4 adjustable levelers.

• ✅ Pre-Bundled Accessories – Includes power distribution unit, cable manager, and mounting kit.

Technical Specifications

• Model: NFR-22U-6060-BL-SK

• Rack Units: 22U

• Dimensions:

  • Width: 600mm

  • Depth: 600mm

  • Usable Depth: 520mm

• Material: Cold-rolled CRCA steel

• Finish: Powder coated (Black by default; Grey optional)

• Static Load Capacity: 250 kg

• Doors:

  • Front: Lockable toughened glass

  • Rear: Vented metal, lockable

• Side Panels: Vented, welded, removable

• Mounting Standard: 19" DIN rails with 10mm square slots / M6 tap

• Cooling: Includes 2 x 180CFM fans

• Cable Entry: Top and bottom field-entry cut-outs

• Mobility: 4 Castor wheels (2 with brakes), 4 adjustable levelers

Included Accessories

• 1 x Rack Enclosure Frame (22U, 600x600mm)

• 1 x Front Toughened Glass Door

• 1 x Rear Vented Metal Door

• 2 x Vented Side Panels

• 1 x Horizontal Power Distribution Unit (6 x 5/15A sockets, 230V, 16A)

• 1 x Horizontal Cable Manager (1U, loop style)

• 1 x Mounting Hardware Kit (20 pcs)

• 1 x Dual Fan Unit (2 x 180 CFM)

• 4 x Castor Wheels

• 4 x Adjustable Levelers

Optional Accessories (Sold Separately)

• Sliding and Cantilever Shelves

• Keyboard Shelf

• Cable Basket

• Jacking Feet

• Rack Grouting Kit

Use Cases

• ✅ Network and server closets

• ✅ Data center and telecom rooms

• ✅ AV control and surveillance equipment

• ✅ Lab and industrial IT environments
