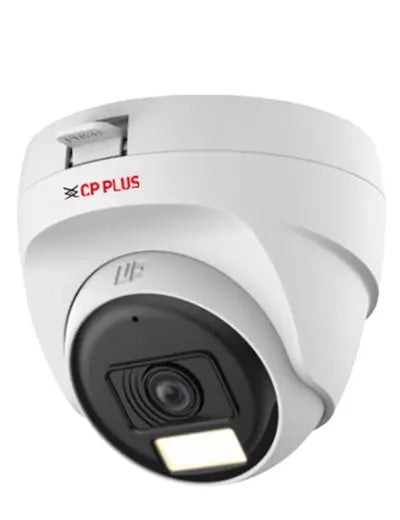

CP Plus HD 5MP Hybrid illumax Dome CCTV with MIC (CP-URC-DC51PL3C-L)

The CP-URC-DC51PL3C-L is a 5MP Dual Light Dome Camera from CP PLUS, designed for high-definition surveillance with enhanced night vision capabilities. It combines infrared and warm light technologies to deliver clear images in various lighting conditions.

📷 Camera Specifications

• Image Sensor: 5MP PS CMOS Image Sensor

• Maximum Resolution: 2880 (H) × 1620 (V)

• Minimum Illumination:

  • Color: 0.02 lux @ F2.0 (30 IRE)

  • B/W: 0.002 lux @ F2.0 (30 IRE)

  • 0 lux with IR on

• Shutter Speed:

  • PAL: 1/25 s–1/100,000 s

  • NTSC: 1/30 s–1/100,000 s

• White Balance: Auto, Area white balance

• Lens Options: Fixed 3.6mm lens

• Maximum Aperture: F2.0

• Lens Mount: M12

• Close Focus Distance:

  • 3.6mm: 1.3 m

  • 2.8mm: 1.0 m

• Angle of View:

  • 3.6mm: Horizontal 92°, Vertical 48°, Diagonal 109°

  • 2.8mm: Horizontal 106°, Vertical 56°, Diagonal 125°

• DORI Distance (3.6mm lens):

  • Detect: 76.0 m

  • Observe: 30.4 m

  • Recognize: 15.2 m

  • Identify: 7.6 m

• Backlight Compensation: BLC / HLC / DWDR

• Noise Reduction: 2D DNR

• Day/Night Functionality: Auto (ICR) / Color / B/W

• Mirror Function: Supported

• Privacy Masking: Up to 8 areas (rectangular)

• Audio: Built-in Microphone

🔌 Video & Connectivity

• Video Output: Selectable CVI / TVI / AHD / CVBS via one BNC port

• Supported Resolutions:

  • 5M (2880 × 1620)

  • 4M (2560 × 1440)

  • 2M (1920 × 1080)

  • 960H (960 × 576 / 960 × 480)

• Frame Rates:

  • CVI: PAL 5M@25 fps, 4M@25 fps, 2M@25 fps; NTSC 5M@25 fps, 4M@30 fps, 2M@30 fps

  • AHD: PAL 4M@25 fps; NTSC 4M@30 fps

  • TVI: PAL 4M@25 fps; NTSC 4M@30 fps

  • CVBS: PAL 960H; NTSC 960H

⚙️ Mechanical & Environmental

• Casing: Plastic

• Dimensions: 85 mm × 77.1 mm

• Weight: 0.11 kg

• Power Supply: 12V DC ±30%

• Power Consumption: Max 2.6W (with WLED on)

• Operating Temperature: -40°C to +55°C (-40°F to +131°F)

• Operating Humidity: <95% RH (non-condensing)

• Storage Temperature: -40°C to +55°C (-40°F to +131°F)

• Storage Humidity: <95% RH (non-condensing)

• Ingress Protection: IP67 rated for outdoor use

🌟 Additional Features

• Dual Light Night Vision: Combines infrared and warm light for superior night vision, providing clear images in complete darkness and enhanced visibility in low-light conditions.

• Active Deterrence: Features warm LED lights that activate in real-time to deter intruders, enhancing security by preventing potential threats before they escalate. Note: Active deterrence functions require SMD-supported DVRs.

• All-in-One HD Camera: Supports multiple video formats (HDCVI, HDTVI, AHD, CVBS) over a single coaxial cable, ensuring compatibility with various DVRs.

• Built-in Microphone: Captures high-quality audio, adding an extra layer of security by recording sound along with video.

• Long-Distance Transmission: Capable of transmitting video signals over extended distances without quality loss, ensuring reliable and clear footage from remote locations.
