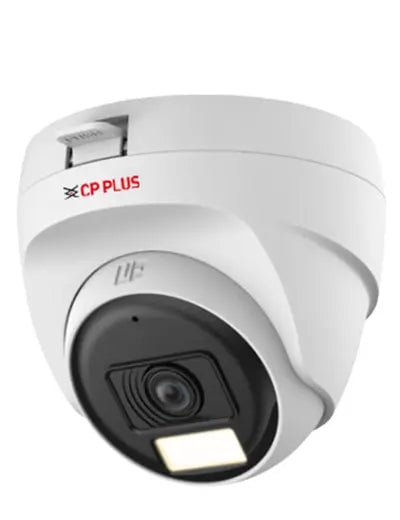

CP Plus HD 2.4MP illumax Dual Light Dome CCTV (CP-URC-DC24PL3C-L)

The CP-URC-DC24PL3C-L is a 2.4MP Dual Light Dome Camera from CP PLUS, designed for versatile indoor surveillance applications. It offers high-definition video capture, dual-light night vision, and compatibility with multiple video formats, making it suitable for various security setups.

📸 Camera Specifications

• Image Sensor: 2.4MP PS CMOS Image Sensor

• Maximum Resolution: 1928 × 1088 pixels

• Lens Options: Fixed 3.6mm lens (2.8mm optional)

• Aperture: F2.0

• Minimum Illumination:

  • Color: 0.02 lux @ F2.0 (30 IRE)

  • B/W: 0.002 lux @ F2.0 (30 IRE)

  • 0 lux with IR on

• Shutter Speed:

  • PAL: 1/25s to 1/100,000s

  • NTSC: 1/30s to 1/100,000s

• Day/Night Functionality: Auto (ICR) / Color / B/W

• Backlight Compensation: BLC / HLC / DWDR

• Noise Reduction: 2D DNR

• White Balance: Auto, Area White Balance

• Gain Control (AGC): Auto / Manual

• Angle of View:

  • 3.6mm lens: Horizontal 80°, Vertical 43°, Diagonal 94°

  • 2.8mm lens: Horizontal 100°, Vertical 54°, Diagonal 117°

• DORI Distance (3.6mm lens):

  • Detect: 50.0m

  • Observe: 22.0m

  • Recognize: 11.0m

  • Identify: 5.5m

• IR Range: Up to 30 meters

• Warm Light Range: Up to 20 meters

• IR Control: Auto / Manual

• IR Mode: Smart IR & Warm Light, Warm Light Mode, IR Mode

• Mirror Function: Supported

• Privacy Masking: Up to 8 areas (rectangular)

• OSD Menu: Multi-language support

• Audio: Built-in Microphone

🔌 Video & Connectivity

• Video Output: Selectable CVI / TVI / AHD / CVBS via one BNC port

• Supported Resolutions:

  • 2.4MP (1928 × 1088)

  • 960H (960 × 576 / 960 × 480)

• Frame Rates:

  • CVI: PAL 2.4MP @25fps, NTSC 2.4MP @30fps

  • AHD: PAL 2.4MP @25fps, NTSC 2.4MP @30fps

  • TVI: PAL 2.4MP @25fps, NTSC 2.4MP @30fps

  • CVBS: PAL 960H, NTSC 960H

• Compatibility: Supports multiple video formats for seamless integration with various DVRs

⚙️ Mechanical & Environmental

• Casing: Plastic

• Dimensions: 85.0 mm × 77.1 mm

• Weight: 0.11 kg

• Power Supply: 12V DC ±30%

• Power Consumption: Max 2.1W (with IR LED on)

• Operating Temperature: -40°C to +60°C (-40°F to +140°F)

• Operating Humidity: <95% RH (non-condensing)

• Storage Temperature: -40°C to +60°C (-40°F to +140°F)

• Storage Humidity: <95% RH (non-condensing)

🌟 Key Features

• Dual Light Night Vision: Combines infrared and warm light for superior night vision, providing clear images in complete darkness and enhanced visibility in low-light conditions.

• Active Deterrence: Features warm LED lights that activate in real-time to deter intruders, enhancing security by preventing potential threats before they escalate. Note: Active deterrence functions require SMD-supported DVRs.

• All-in-One HD Camera: Supports multiple video formats (HDCVI, HDTVI, AHD, CVBS) over a single coaxial cable, ensuring compatibility with various DVRs.

• Built-in Microphone: Captures high-quality audio, adding an extra layer of security by recording sound along with video.

• Long-Distance Transmission: Capable of transmitting video signals over extended distances without quality loss, ensuring reliable and clear footage from remote locations.

For more detailed information, you can refer to the official product page: CP-URC-DC24PL3C-L.

If you need assistance comparing this model with other CP PLUS cameras or have specific requirements, feel free to ask!
