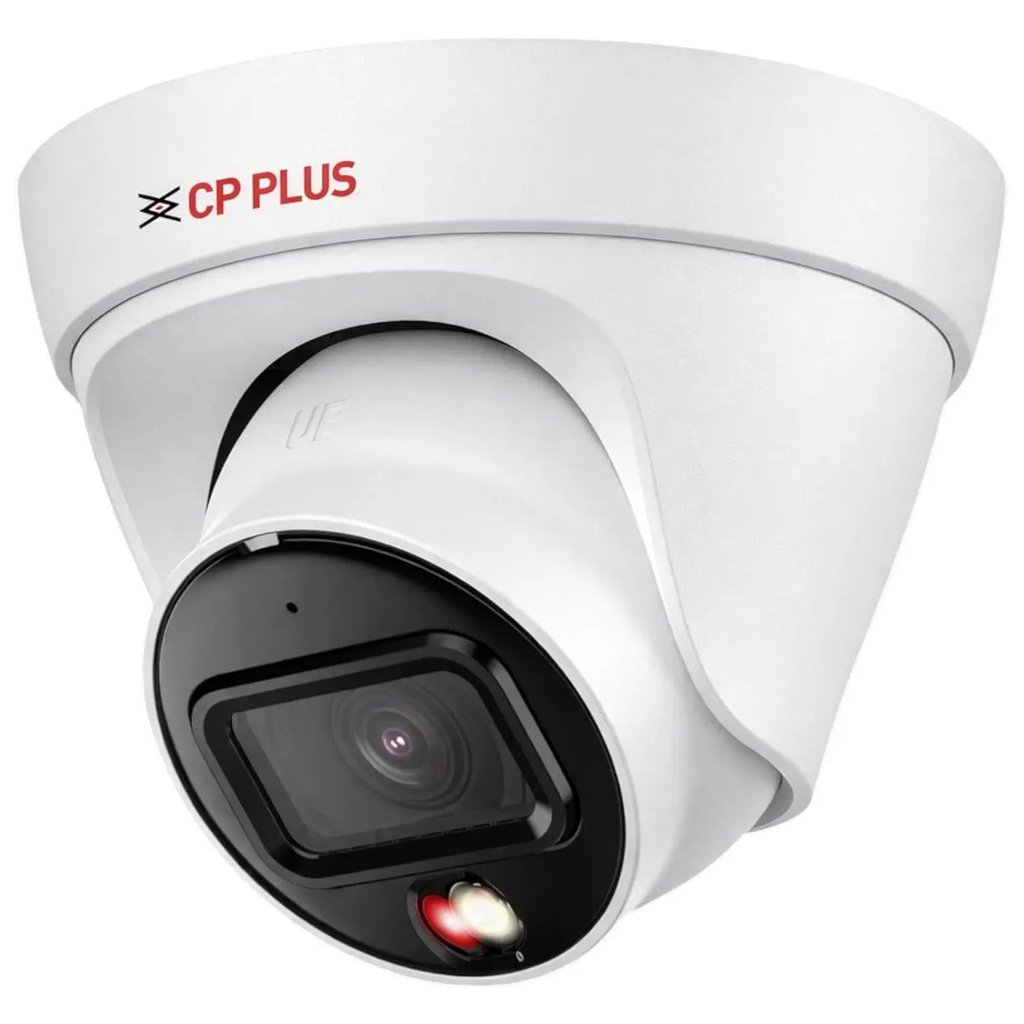

CP PLUS 8MP Dual Light ,Support Built-in Mic, STQC - CP-UNC-DA81L3C-LQ
star
star
star
star
star
(10 Reviews)
In Stock
₹7,700.00
₹11,500.00
check_circle
In Stock
visibility
2087 people are viewing this right now
Shipping calculated at checkout.
Only 3 item(s) left in stock
check_circle
Image Sensor
check_circle
1/2.7" 8MP PS CMOS Image Sensor (0.9407 Centimeters)
check_circle
Effective Pixels
check_circle
3840 (H) × 2160 (V)
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
| Image Sensor | 1/2.7" 8MP PS CMOS Image Sensor (0.9407 Centimeters) |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Minimum Illumination | 0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| RAM | 256 MB |
| ROM | 128 MB |
| DORI Distance | Lens 3.6mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) Lens 2.8mm: 84.8 m (Detect), 33.9 m (Observe), 17.0 m (Recognize), 8.5 m (Identify) |
| Gain Control (AGC) | Auto/Manual |
| Lens Type | Fixed-focal |
| Max. Aperture | F1.4 |
| Close Focus Distance | 1.9 m |
| Lens Mount | M12 |
| Lens | 3.6mm |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| S/N Ratio | >58dB |
| IR Number | 1 (Multi-core (IR + warm) light) |
| IR | IR Range of 30 Mtr. |
| Warm Light | Warm Light Range of 30 Mtr. |
| Day/Night | Auto(ICR)/Color/B/W |
| Angle of view | H: 86°, V: 49°, D: 100° |
| Back Light Compensation | BLC/ HLC/ DWDR |
| OTA (Over-The-Air) | Support |
| Stream Capability | Triple stream |
| Frame Rate | Main stream: 8MP (3840 × 2160)@1–20 fps, 4MP (2688 ×1520)@1–25/30 fps Sub stream 1: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps |
| Smart search | Work together with AI NVR to perform refine AI search, event extraction and merging to event videos |
| Video Format | PAL/NTSC |
| Privacy Mask | 4 areas |
| ROI | Support (4 areas) |
| OSD | Camera title, Date & Time, Channel Title, Time Title, Location, Font Properties, Custom Title |
| Audio | Built-in Mic |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
| Bit Rate | H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps |
| Bit Rate Control | CBR/VBR |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100 Base-T) |
| Resolution | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4MP (2880 × 1620/2688 × 1520), 3MP (2048 × 1536/2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Noise Reduction | 2D NR, 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| IMD (Intelligent motion detection) | Support the classification and accurate detection of human and vehicle |
| Mirror Function | Support |
| IR Control | Auto, Manual |
| Iris Control | Fixed |
| Smart Illumination | Support |
| Smart IR | Support |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) |
| Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
| User/ Host | 6 (Total bandwidth: 48 M) |
| Browser | IE, Chrome, Firefox |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Power Source | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W (12 VDC), 3.5 W (PoE) Max.: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40°C to +55°C |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40°C to +60°C (–40 °F to 131 °F) |
| Storage Humidity | ≤95%(RH), non-condensing |
| Dimension | 85.5mm × 109mm |
| Casing | Metal + Plastic |
| Weight | 280g |
