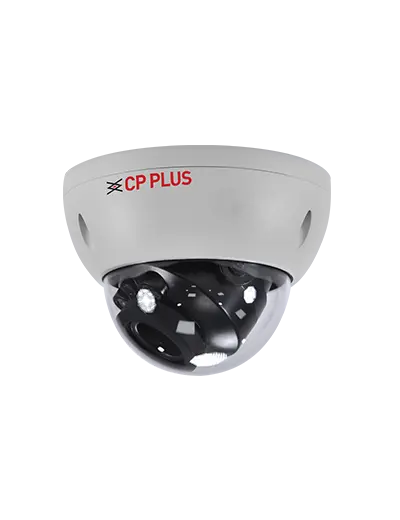

CP Plus 8 MP Dual-Light Vandal Dome Camera | STQC | CP-UNC-VC81L5C-VMD-LQ
The CP-UNC-VC81L5C-VMD-LQ is an advanced 8MP vandal-proof dome IP camera featuring dual light technology (IR + warm light) with up to 50m IR range and 30m warm light range. It supports Instastream, H.265/H.264, quad streaming, starlight technology, and a host of intelligent video analytics, making it ideal for both indoor and outdoor surveillance in challenging environments.
3. Key Features
-
8MP resolution (3840 × 2160) up to 20 fps
-
1/2.7” 8MP CMOS sensor for crisp imaging
-
Dual Light Technology – 50m IR + 30m warm light
-
3.6mm fixed lens (2.8mm optional)
-
WDR (120dB), 3D NR, BLC, HLC, ROI, AWB, AGC
-
Quad stream support
-
Smart IR & True Day/Night (ICR)
-
Audio – Built-in mic, RCA input/output
-
Alarm I/O – 1 In / 1 Out
-
PoE (802.3af) and 12V DC power support
-
Storage support – up to 512GB Micro SD card, NAS, SFTP
-
Weatherproof IP67 & Vandal-proof IK10 rating
-
Metal casing, compact design (81 × 109.9 mm, 360g)
4. Technical Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7” 8MP CMOS |
| Resolution | 8MP (3840×2160), 6MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 720p, D1, VGA, CIF |
| Frame Rate | Main stream: 8MP @1–20fps; 4MP @25/30fps |
| Lens | 3.6mm fixed (2.8mm optional), F1.4 |
| Angle of View | 3.6mm: H 86°, V 49°, D 100° / 2.8mm: H 110°, V 58°, D 132° |
| Illumination | Min. 0.001 lux (color), 0.0001 lux (B/W), 0 lux (IR on) |
| DORI Distance | Detect: 98.7m, Observe: 39.5m, Recognize: 19.7m, Identify: 9.9m (3.6mm lens) |
| Compression | Instastream, H.265, H.264, MJPEG (sub-stream) |
| Audio Compression | G.711a/u, PCM, G726, AAC |
| Alarms | Motion detection, video tampering, intrusion, tripwire, audio detection, voltage detection, SMD |
| Smart Features | Perimeter protection, IVS analytics, ROI (4 areas), Smart search |
| Cyber Security | AES 256-bit encryption, IP/MAC filtering, HTTPS, trusted boot/upgrade |
| Storage | Micro SD card (up to 512GB), NAS, SFTP |
| Operating Conditions | -40°C to +60°C, ≤95% RH |
| Power Consumption | Max 6.9W (12V DC), 8.3W (PoE) |
| Certifications | ISO9001, CE, FCC, RoHS |
5. Applications
-
Banks, ATMs, and financial institutions
-
Airports, railways, and transportation hubs
-
Warehouses, factories, and logistics centers
-
Educational institutions, hospitals, and offices
-
High-security outdoor areas requiring vandal-proof solutions
6. Warranty & Support
-
Standard Manufacturer Warranty
-
After-sales support via CP Plus service network
7. Ordering Information
-
Model: CP-UNC-VC81L5C-VMD-LQ
-
Category: 8MP IP Dome Cameras
-
Availability: In stock / Pre-order based on supplier
-
Package Includes: Camera unit, mounting accessories, user manual
