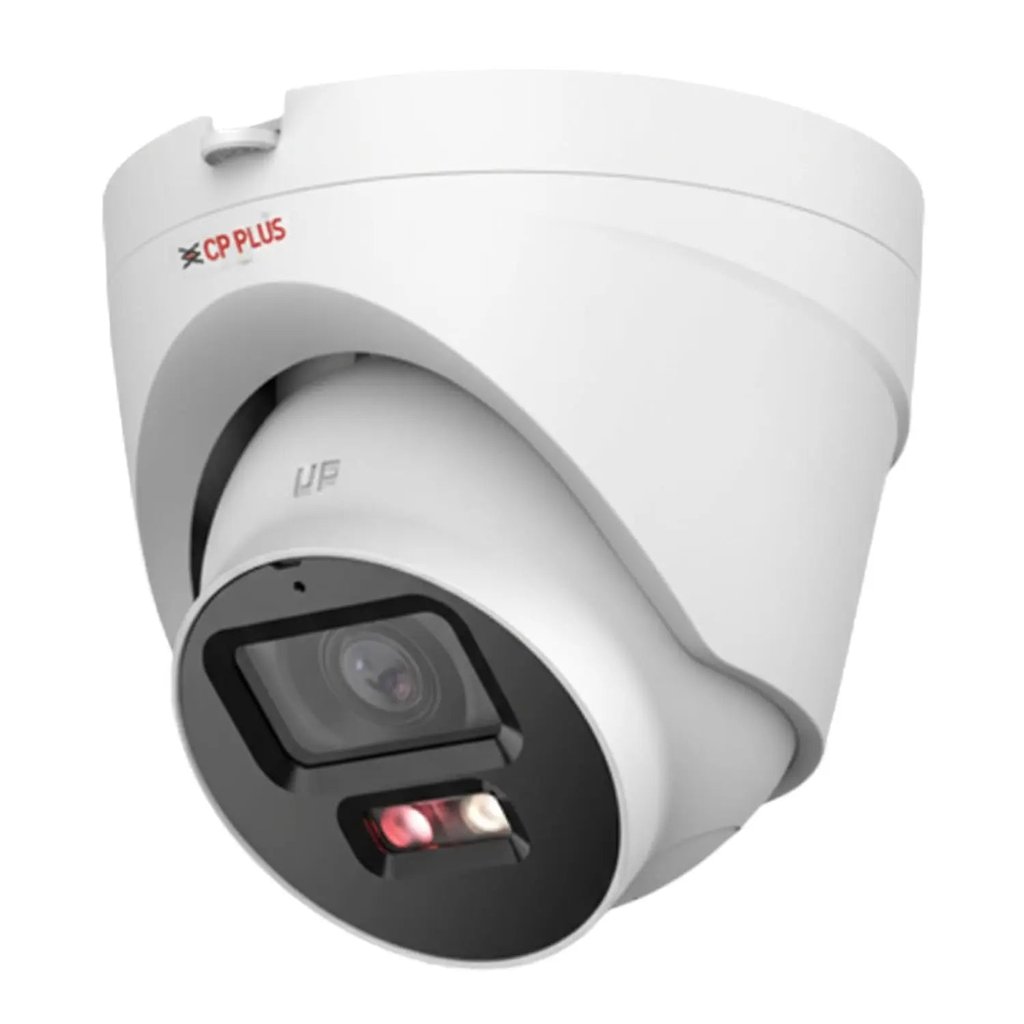

CP Plus 4MP Dual Light Dome Indoor IP Camera | Dual Light Night Vision | STQC | Built-in Mic & Speaker | CP-UNC-DA41L3B-D-LQ
star
star
star
star
star
(10 Reviews)
In Stock
₹4,650.00
₹6,499.99
check_circle
In Stock
🔥
1 total sold
visibility
836 people are viewing this right now
Shipping calculated at checkout.
Only 3 item(s) left in stock
check_circle
Image Sensor
check_circle
Effective Pixels
check_circle
2688 (H) × 1520 (V)
check_circle
Minimum Illumination
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
| Image Sensor | 1/2.8 |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Minimum Illumination | 0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| RAM | 128 MB |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| ROM | 128 MB |
| Gain Control (AGC) | Auto/Manual |
| Lens Type | Fixed-focal |
| Max. Aperture | F1.4 |
| Lens Mount | M12 |
| Close Focus Distance | 1.5 m |
| DORI Distance | 78.0 m (Detect), 31.2 m (Observe), 15.6 m (Recognize), 7.8 m (Identify) |
| Lens | 3.6mm fixed Lens |
| S/N Ratio | >58dB |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| Day/Night | Auto(ICR)/Color/B/W |
| Angle of view | H: 78°, V: 42°, D: 92° |
| IR Number | 1 IR LED, 1 Warm light |
| IR | IR Range of 30 Mtr. |
| Warm Light | Warm Light Range of 30 Mtr. |
| Smart Illumination | Support |
| Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Resolution | 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Stream Capability | Triple stream |
| Frame Rate | Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
| Video Format | PAL/NTSC |
| ROI | Support (4 areas) |
| Audio | Built-in Mic |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
| OSD | Camera title, Date & Time |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
| SDK and API | Support |
| User/ Host | 6 (Total bandwidth: 48 M) |
| IMD (Intelligent motion detection) | Support the classification and accurate detection of human and vehicle |
| Mirror Function | Support |
| IR Control | Auto, Manual |
| Browser | IE, Chrome, Firefox |
| Smart IR | Support |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| Ethernet | RJ-45 (10/100 Base-T) |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Iris Control | Fixed |
| Power Source | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 1.8 W (12 VDC); 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95%(RH), non-condensing |
| Dimension | 100.9 mm × 109.9 mm |
| Weight | 320g |
